Description
Directional Coupler SMA 2GHz
Features
The Directional Coupler SMA 2GHz (Minicircuits ZFDC-10-5-S+)
- very wideband, 1 to 2000 MHz
- excellent directivity, 30 dB typ.
- rugged shielded case
Directional Coupler SMA 2GHz Applications
- Return Loss measurements using Signal Hound generators and spectrum analysers
- cellular
- instrumentation
- communication receivers & transmitters
- GPS
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C

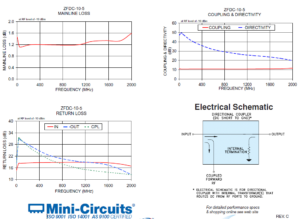

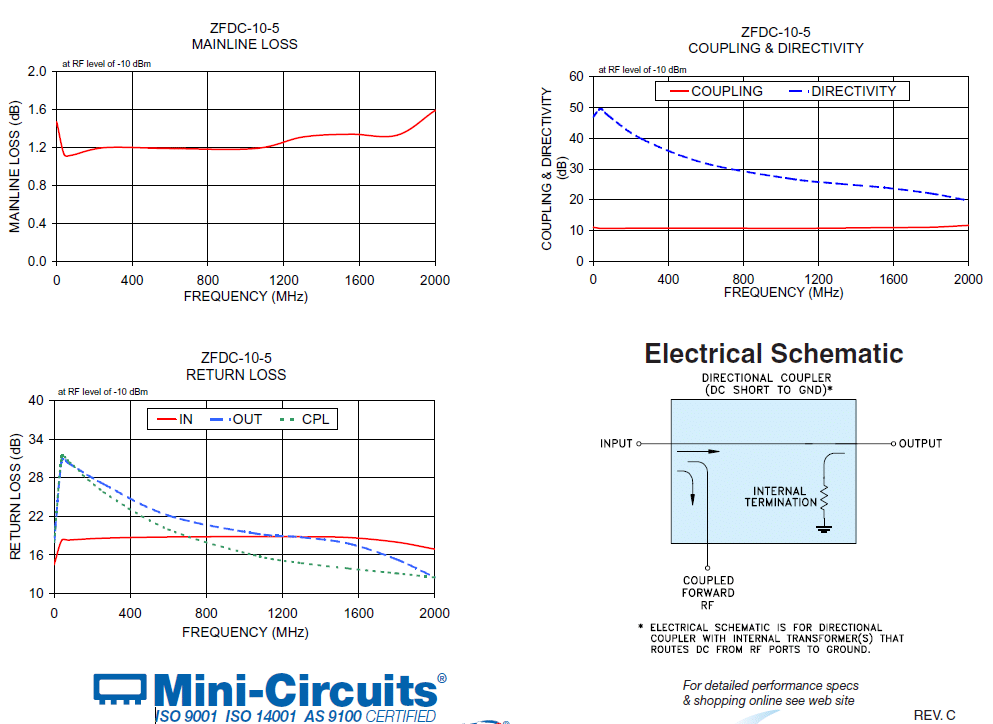

Refer: Data Sheet
