SKU: ZFDC-10-5-S+

Directional Coupler SMA 2GHz

$350.00

  • Accessories
  • Signal Hound

Directional Coupler SMA 2GHz Features The Directional Coupler SMA 2GHz (Minicircuits ZFDC-10-5-S+) very wideband, 1 to 2000 MHz excellent directivity, 30 dB typ. rugged shielded case Directional Coupler SMA 2GHz Applications Return Loss measurements using Signal Hound generators and spectrum analysers cellular instrumentation communication receivers & transmitters GPS Maximum Ratings... Read More

Out of stock

After some more information?

Product Enquiry
Directional Coupler SMA 2GHz (Minicircuits ZFDC-10-5-S+)

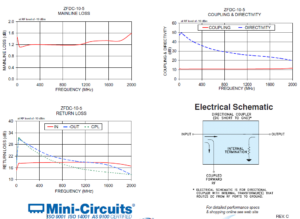

Minicircuits-ZFDC-10-5-S+

Additional Information

Directional Coupler SMA 2GHz

Features

The Directional Coupler SMA 2GHz (Minicircuits ZFDC-10-5-S+)

  • very wideband, 1 to 2000 MHz
  • excellent directivity, 30 dB typ.
  • rugged shielded case

Directional Coupler SMA 2GHz Applications

  • Return Loss measurements using Signal Hound generators and spectrum analysers
  • cellular
  • instrumentation
  • communication receivers & transmitters
  • GPS

Maximum Ratings

Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C

Minicircuits-ZFDC-10-5-S+

Refer: Data Sheet

Additional information

Weight 0.5 kg
Dimensions 10 × 10 × 3 cm
