SW264K 26GHz RF switch

Description

SW264K 26GHz RF switch

SW264K 26GHz RF switch

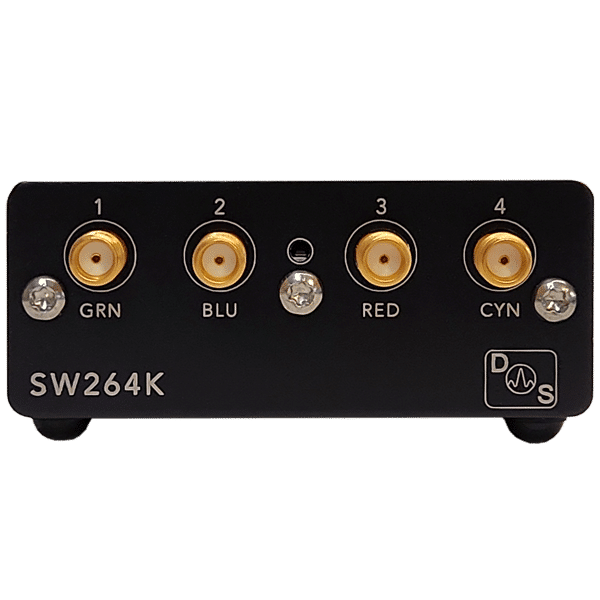

DS Instrument’s new SW264K 26GHz RF switch is a 4-Way solid-state RF switch is powered via USB and controlled using a rear pushbutton switch, or via SCPI commands over the virtual COM port. Status LEDs and audible feedback make this device extremely user friendly for stand-alone usage and remote scripted operation. This non-reflective ultra-wideband SP4T switch is perfect for X and Ku-band automated test setups. Fast switching time and an affordable price point make this the best low-power switch on the market today. No special drivers are needed to send serial commands from any operating system or host device.

SW264K SP4T Switch Specifications:

• Super-wideband 1 – 26GHz frequency range
• Non-reflective design
• 4 switched, 1 common premium gold SMA ports
• Max RF  input power (through) : +26 dBm (0.4W)
• Max RF input power (hot-switching): +22 dBm
• Low insertion loss (5dB Typical, 8dB max)
• Solid-state reliability and speed
• Bi-directional topology
• Fast switching time
• Superior isolation (>35dB)
• LED port status indication
• Impedance: 50 Ohm
• USB type-C powered and controlled
• Standard Ethernet connection
