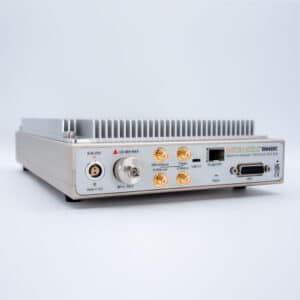

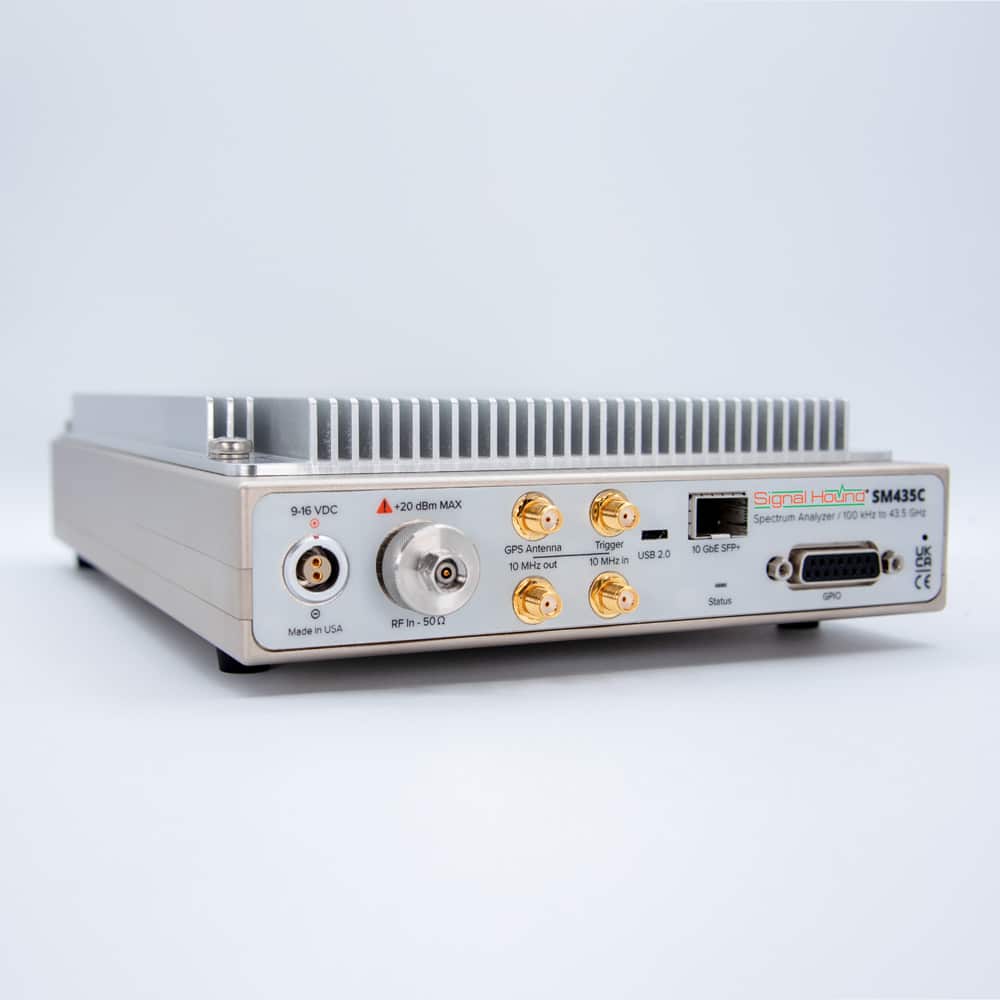

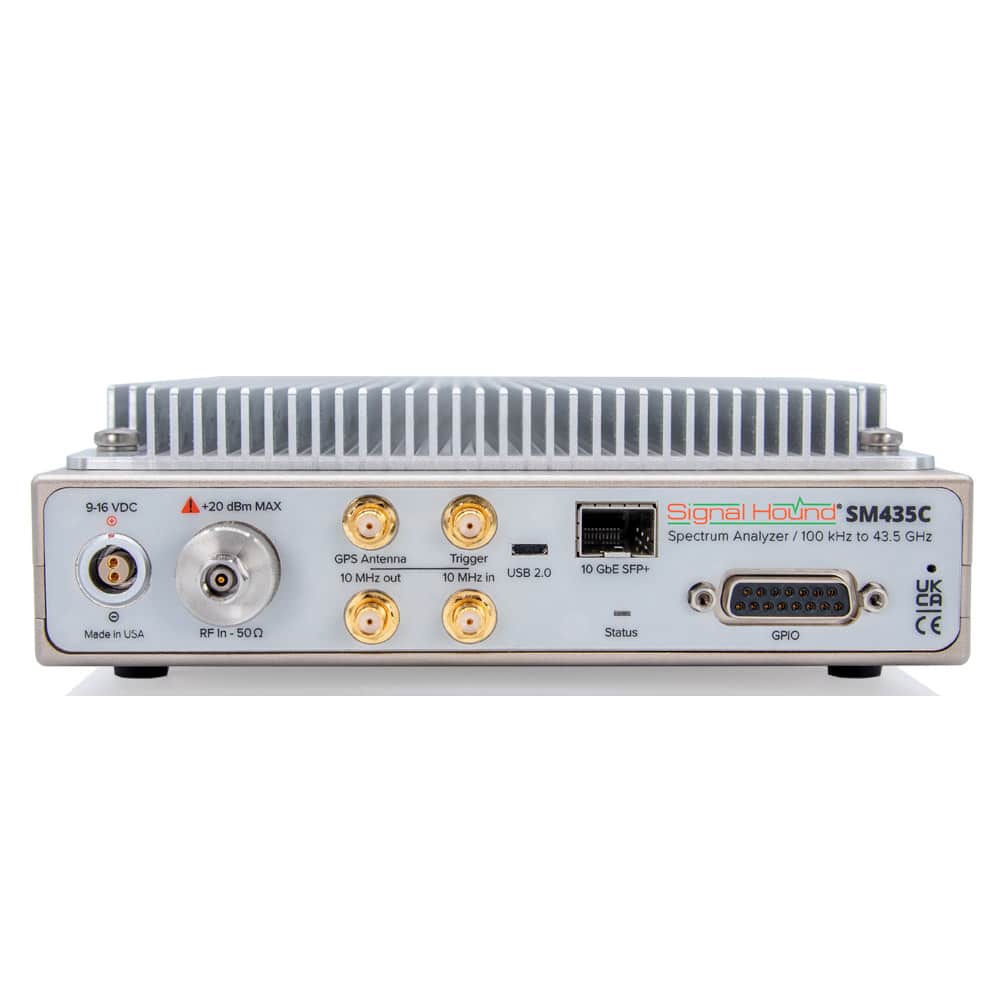

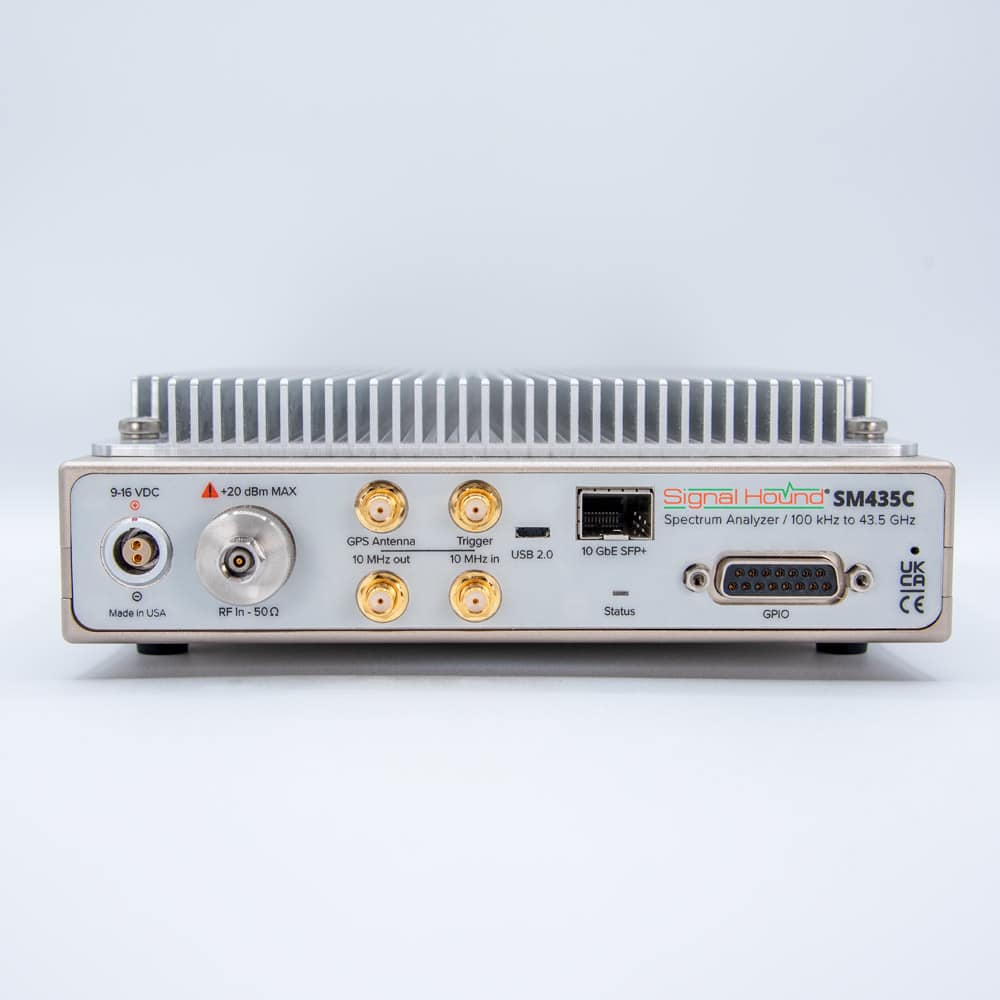

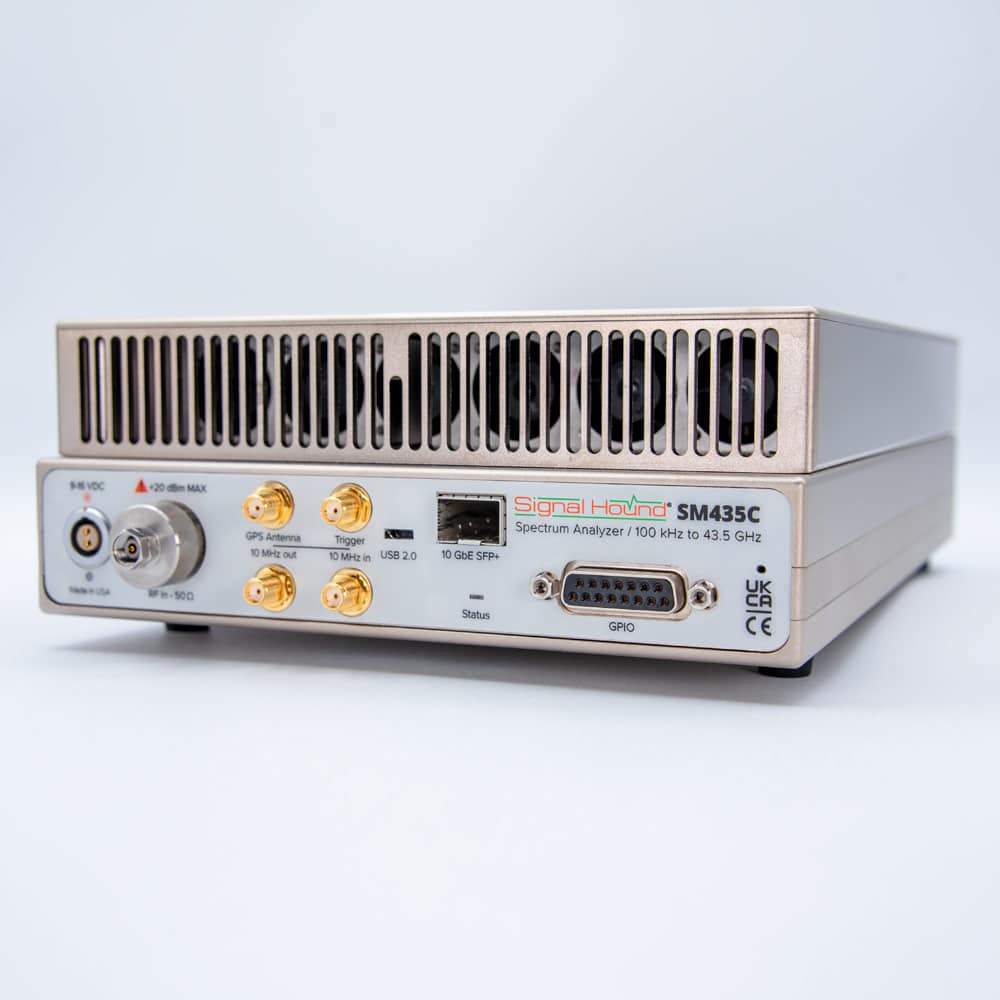

SM435C 43.5GHz Spectrum Analyser

$46,450.00$59,200.00

Description

SM435C 43.5GHz Spectrum Analyser with SFP+ Interface

The SM435C 43.5GHz Spectrum Analyser is a high-performance spectrum analyzer and monitoring receiver. Tuning from 100 kHz to 43.5 GHz, the analyzer has 160 MHz of instantaneous bandwidth (IBW), 110 dB of dynamic range, 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing), and phase noise performance that is low enough to contribute less than 0.1% error to EVM measurements and rival even the most expensive spectrum analyzers on the market.

The SM435C offers 160 MHz instantaneous bandwidth (IBW) calibrated I/Q capture, available through a 10Gbps SFP+ interface.

Signal processing is distributed between a very powerful Intel FPGA and an external PC having an Intel Core i7 processor. The Signal Hound SM435C can be readily interfaced, using its local API, to an automated monitoring system or to automated test equipment. The SM435C API provides customers the access needed to insert their own DSP algorithms into a calibrated stream of I/Q data.

The SM435C 43.5GHz Spectrum Analyser is capable of high-performance RF analysis, connected to a PC via the SFP+ interface.

Download the data sheet to get all the details and assess for your application.

A 10GbE-connected spectrum analyzer perfect for mmWave analysis

The SM435C is a high-performance spectrum analyzer and monitoring receiver with a 10 Gigabit Ethernet SFP+ port, enabling the SM435C to communicate with a PC over long distances using a fiber optic cable. Designed for affordable remotely-located accurate RF data analysis up to 43.5 GHz, the SM435C is perfect for:

  • 5G mmWave monitoring & analysis
  • 24 GHz ISM frequency monitoring
  • Complete Ka band spectrum testing
  • Analysis of emerging & new high-frequency RF signals

Tuning from 100 kHz to 43.5 GHz, the SM435C has 160 MHz continuous streaming I/Q over 10GbE SFP+, 110 dB of dynamic range, 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing), and phase noise performance low enough to contribute less than 0.1% error to EVM measurements and rival even the most expensive spectrum analyzers on the market.

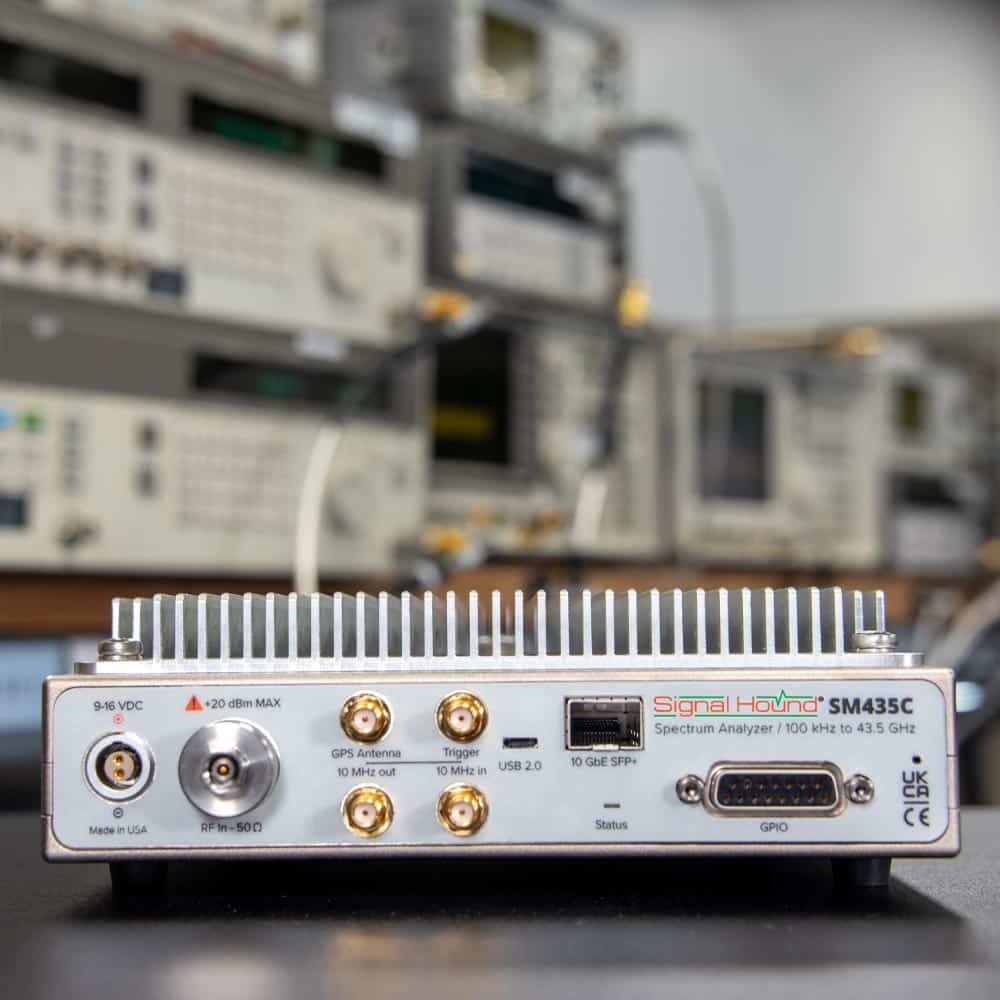

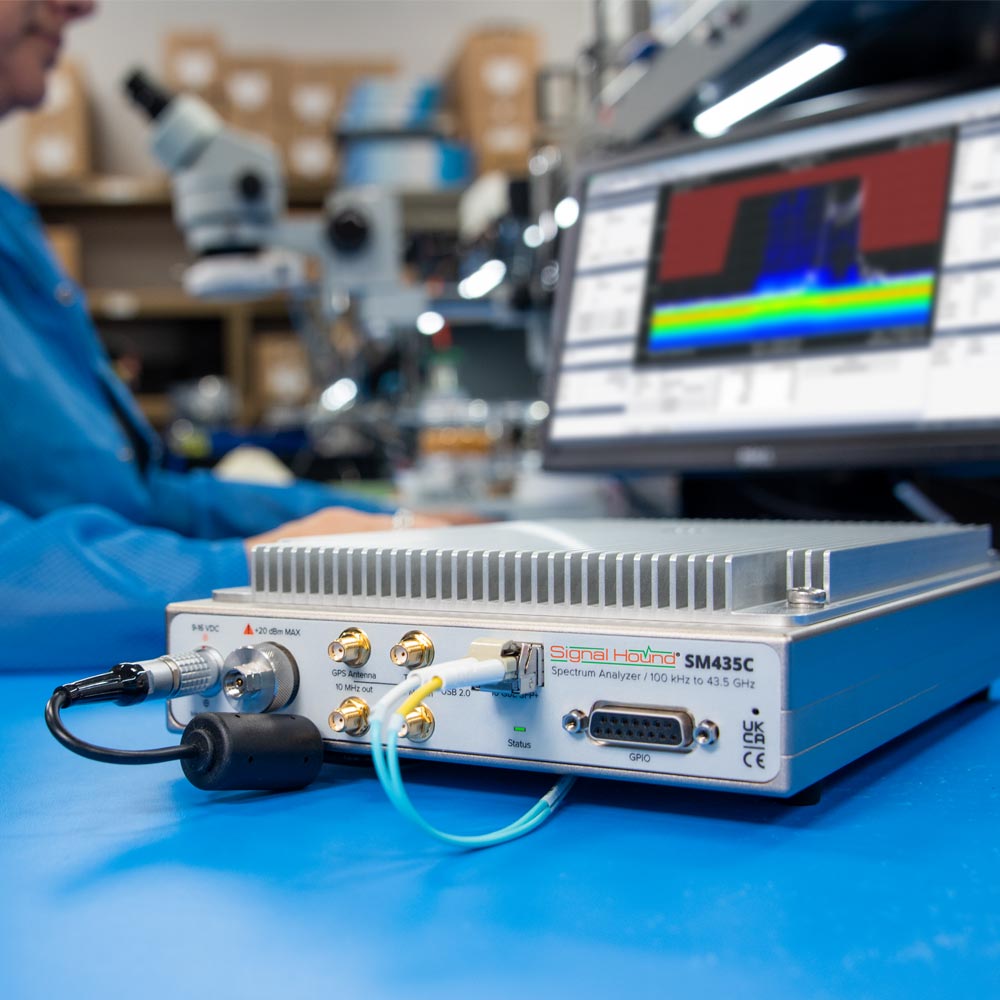

The smaller form factor of the SM435C allows it to inconspicuously fit in the corner of a test bench, or secured in a conveniently-sized enclosure.

This analyzer features:

  • An SFP+ port for fast, long-distance communication with a PC using an optic cable
  • 160 MHz continuous streaming I/Q over 10GbE SFP+
  • Device control and data transfer occurs via SFP+ connection, not USB
  • Tunes range of 100 kHz to 43.5 GHz
  • 20 MHz to 43.5 GHz sub-octave preselector
  • Sweeps at 1 THz/sec at 30 kHz RBW
  • 110 dB of dynamic range
  • Ultra-low phase noise
  • GPIO port for antenna switching

The SM435C 43.5GHz Spectrum Analyser includes all required software for operation. As with other Signal Hound devices, our Spike software provides the device controls, signal visualization display, and data export tools. Spike offers a variety of analysis modes and provides specific tools for EMC precompliance testing, interference hunting, and digital demodulation, among others.

For TSCM-specific applications, the SM435C is also compatible with the Kestrel and SCEPTRE software packages for the ultimate in affordable and powerful countermeasure solutions.

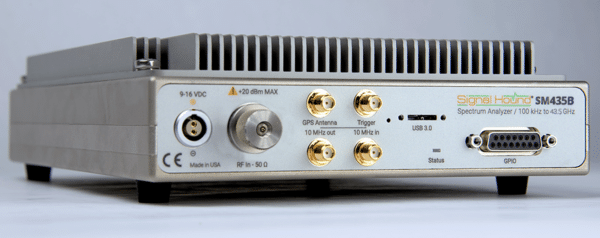

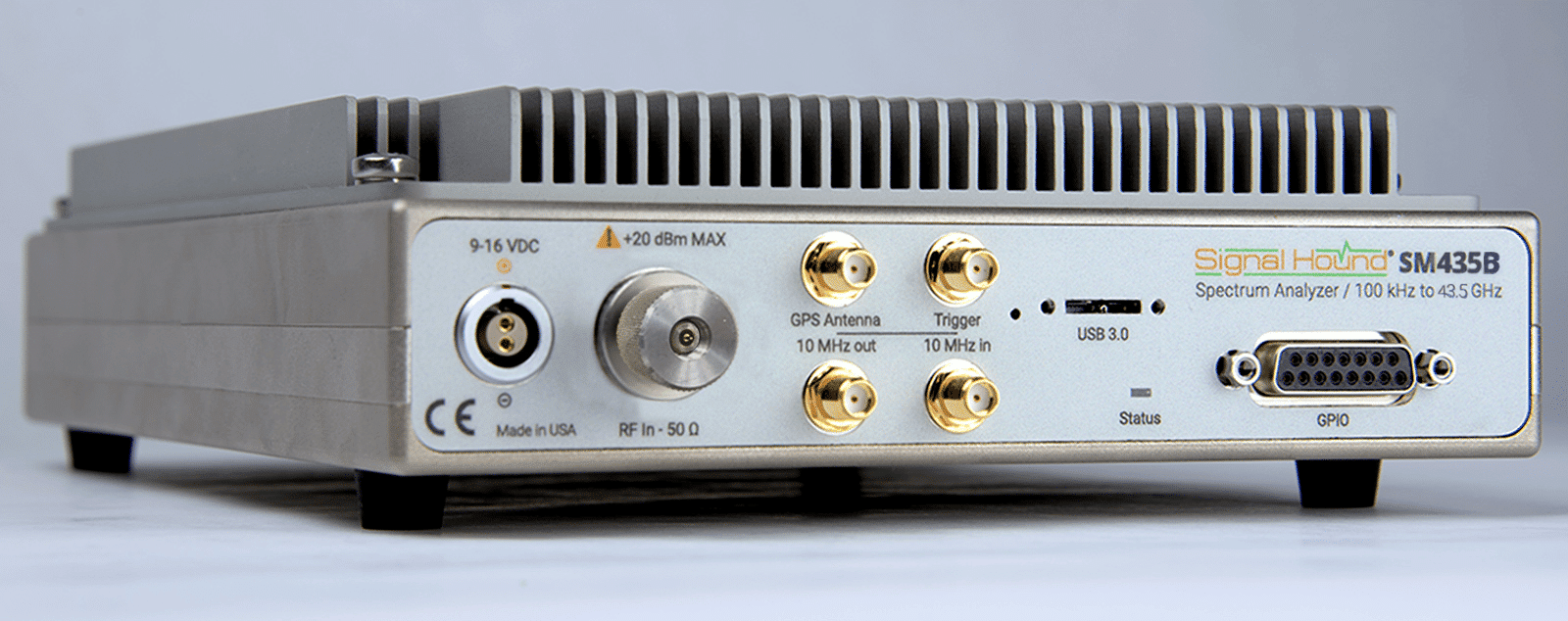

It is important to note that all required software is included for the SM435B to operate. As with other Signal Hound devices, our Spike software provides the device controls, signal visualization display, and data export tools. Spike offers a variety of analysis modes and provides specific tools for EMC precompliance testing, interference hunting, and digital demodulation, amongst others.

For TSCM-specific applications, the SM435B 20GHz spectrum analyser is also compatible with the Kestrel software package for the ultimate in affordable and powerful countermeasure solutions.

Download the SM-200B data sheet here.

Additional information

Weight 4.2 kg
Dimensions 30 × 20 × 6 cm
Temperature Range

0°C to +50°C, -40°C to +65°C

Warranty

Standard (2 Year), 3 Year Warranty, 4 Year Warranty, 5 Year Warranty
