SG6000PRO Signal Generator 6GHz


Available on back-order


SG6000PRO Signal Generator 6GHz

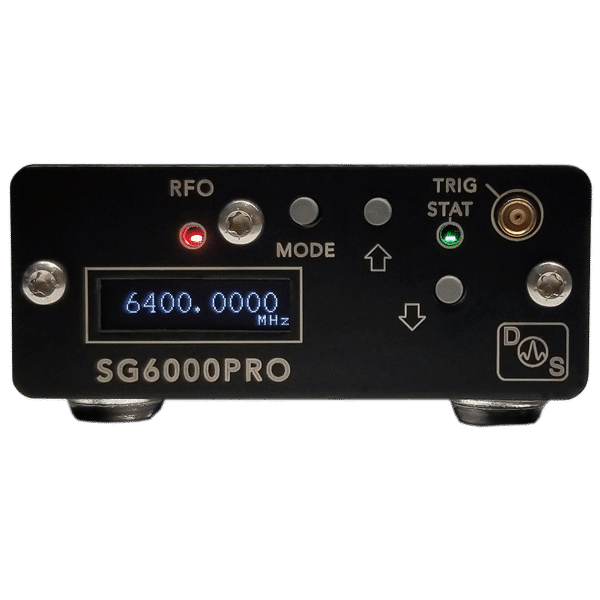

DS Instruments SG6000PRO 6GHz signal generator

SG6000PRO Signal Generator 6GHz

The DS Instruments SG6000PRO RF Signal Generator continues to set the industry standard in affordable ultra-compact Signal Generation. The SG6000PRO provides a pure low-harmonic signal unlike most other compact signal generators. This fully synthesized, modern fractional-N synthesis device covers upwards of 7.1GHz and down to only 20MHz. Output power is calibrated and adjustable between +17dBm and -40dB in 0.25dB steps, or continuously via the internal variable attenuator. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. The PRO has phase noise approximately 25dB lower than the standard SG6000L, a much smaller minimum frequency step size, a more accurate output level attenuator, and a wider frequency range.

         Shipping Rev 9 with enhanced harmonic filtering as of 2023!

Premium RF Signal Generator Features:

  • Active harmonic filtering for a low-distortion output waveform
  • Low phase noise for sensitive applications
  • Stand-alone and USB remote operation
  • Up to 7.1GHz output frequency (Upgraded for 2023!)
  • Adjustable output power with both steps and variable tune
  • Industry-standard SCPI command support
  • Internal ultra-low phase-noise 100MHz reference
  • External 10MHz reference frequency input port (MCX)
  • Sweep trigger input port (MCX)
  • Tiny frequency step size (2Hz)
  • Front user control buttons for frequency and power levels
  • Frequency-sweeping support (list & scan)
  • Front-mounted bright OLED display
  • Simple Windows control GUI
  • Powered from standard USB-C
  • Easy to interface with all software packages (.NET, Matlab, python, android, linux…)
  • No extra drivers required for all common host systems
  • Code examples provided for automated control
  • Standard Ethernet (NEW!)

Device Technical Specifications:

  • Extended output frequency range: 20-7100MHz
  • Calibrated output frequency range: 30-6500MHz
  • Device power output range: -40 to +17 dBm (calibrated)
  • Phase noise at 6GHz: -95dBc @ 10KHz offset
  • Frequency adjustment step size: 2Hz
  • Highest harmonic level: -40dBc typical
  • Internal attenuator (digital): 64dB (250 x 0.25dB Steps)
  • Internal attenuator (variable): ~15dB (10 bit DAC)
  • Dimensions: 2.75″ x 1.25″ x 4.15″
  • Input voltage: 5V Standard USB-C
  • Output impedance: 50 Ohm
  • RF connector: premium gold 18GHz microwave SMA

SG6000PRO Common Applications:

  • Automated testing environments
  • General RF Lab use
  • Flexible LO sourcing
  • Antenna design
  • EMC Testing
  • Production verification and testing
  • Educational / university lab use
  • Aerospace / Defense Research
  • 802.11n Development / Testing
  • LTE Engineering

Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
