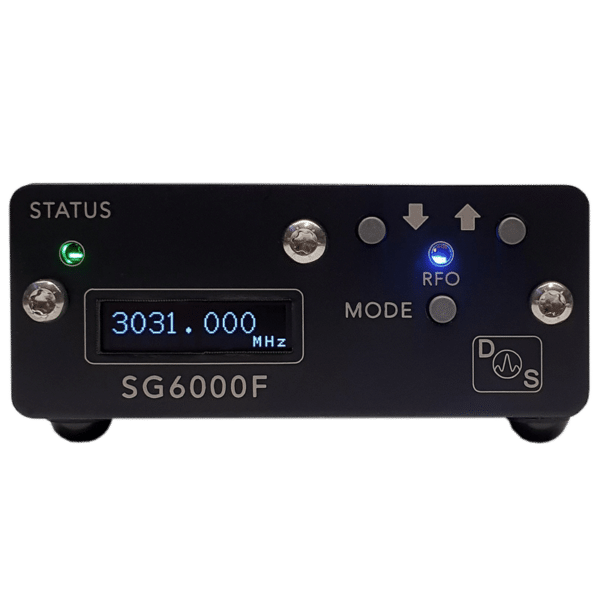

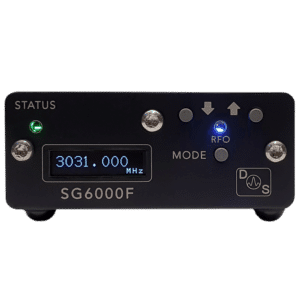

The DS Instruments SG6000F RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG6000F provides a pure low-harmonic sine-wave, unlike most other compact signal generators. This fully synthesized, modern fractional-N device covers up to 6GHz. Output power is calibrated from -25 to +13dBm, and can be adjusted downward in 0.25dB steps, or continuously via the internal variable attenuator. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. In applications where low signal distortion is critical, the SG6000F or the low-phase-noise SG6000PRO are unbeatable solutions.
Looking for lower phase-noise and smaller frequency step size? SG6000PRO
SG6000F (2024 Rev6) Features:
New more robust output amplifier
Phase control support
Active harmonic filtering (full-band)
External sweep trigger input (MCX)
Stand-alone and USB remote operation
Adjustable calibrated output power
Industry-standard SCPI command support
Internal 10MHz reference source
Front user frequency step buttons
Native on-device frequency-sweeping support
Front-mounted bright OLED display
Simple Windows control GUI
Powered from standard USB Type-C
Optional Ethernet with DHCP or static IP
Easy to interface with all software packages (.NET, Matlab, python, android, linux…)
RF Signal Generator Specifications (REV 6):
Frequency Range: 25-6000MHz
Calibrated Power Output: -25 to +13dBm
Harmonic Levels: < -32dBc
Phase Noise: -74dBc @ 10KHz offset
Internal Attenuator (digital): 64 x (0.5dB) Steps
Internal Attenuator (variable): ~20dB (10 bit DAC)
Dimensions: 2.75″ x 1.25″ x 3.15″
Power Input: 5V @ 0.75A max
Internal 10MHz TCXO reference stability: ±2.5PPM
Reference frequency connector: MCX
Trigger input specs: MCX connector, active low, 0-5V
