SAF Tehnika 8GHz Spectrum Analyser

SAF Tehnika 8GHz Spectrum Analyser

Description

SAF Tehnika 8GHz Spectrum Analyser

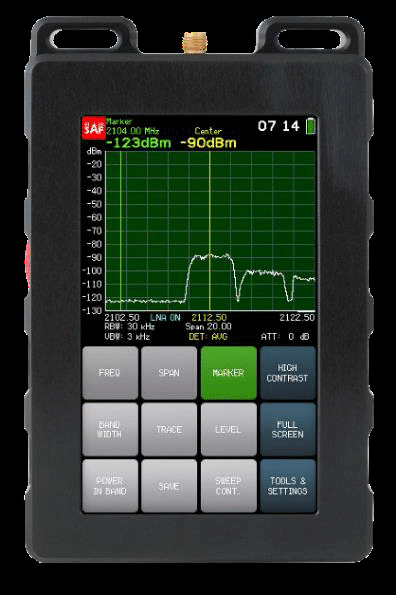

The SAF Tehnika 8GHz spectrum analyser is a compact 2-8GHz hand-held spectrum analyser, perfect for field and lab use!

SAF Tehnika 8GHz Spectrum Analyser

Measurements

  • Channel Power (measures the total power in a specified bandwidth)
  • Adjacent channel power
  • Signal bandwidth
  • Center frequency
  • Interference detection
  • Mask

Setup Parameters

  • Frequency: Center/Start/Stop
  • Trace mode: Normal, Max hold, Cumulative, # of Averages, Min/Max Hold
  • Span: Max Span, Min Span, Selected Span

Save

  • Proprietary format
  • Saves actual data

Sweep Functions

  • Sweep: Continuous, Manual Trigger

Trace Functions

  • Trace operations: Normal, Max hold, # of Averages, Cumulative, Min/Max Hold

Marker Functions

  • Marker: Peak search, set marker to center

Settings

  • ATT
  • RBW, VBW
  • LNA ON/OFF
  • Signal ID ON/OFF

Frequency

  • Frequency Range 2000 – 8000 MHz
  • Frequency Resolution 30 kHz
  • Frequency Reference
    • Aging ±1.0 ppm/1 year
    • Accuracy: ±2.5 ppm (25°C ±25°C) + aging
  • Frequency span 1.5 MHz to full

Bandwidth (Performance Sweep Mode)

  • RBW 30 kHz; 100 kHz; 300 kHz; 1MHz
  • VBW 1 kHz; 3 kHz; 10 kHz; 30 kHz; 100 kHz;

Amplitude Ranges

  • Measurement Range DANL to +20 dBm

Amplitude Accuracy (single sine wave input, Performance Sweep Mode) 20° C to 30° C Typical: ±1 dB

VSWR

  • 2 000 – 8 000 MHz < 1.5
  • Input attenuator 30 dB with 5 dB step

SSB Phase Noise

  • 20°C to 30°C, Fc = 1 GHz
    • Carrier offset  –  100 kHz offset   <-90 dBc/Hz

Maximum Input Level

DC voltage – 0 V

CW RF power Attenuation = 30 dB ; + 20 dBm (100 mW), LNA = OFF

Max. Damage level + 25 dBm

Displayed Average Noise Level (DANL)

  • Attenuation = 0 dB, RBW = 30 kHz / 1 MHz, VBW = 1 kHz, AVG detector,
  • trace average 16, 20°C to 30°C, input impendence = 50 Ω
  • LNA ON:   2 GHz to 8 GHz:  -119 dBm @ RBW = 30kHz; -105 dBm @ RBW = 1MHz typ.
  • LNA OFF: 2 GHz to 8 GHz:  -97 dBm  @ RBW = 30kHz; -84 dBm   @ RBW = 1MHz typ.

Level Display

  • Trace detectors  –  AVG; MAX; MIN
  • Trace functions  –  Clear write, max hold, average, cumulative, min/max hold

Frequency response

  • 2 – 8 GHz; amplitude accuracy ±1 dBm

LNA

  • Gain 2 – 8 GHz +20 dB

RF Input Connector

  • Impedance 50 Ω (nom.)
  • Connector   –    SMA F

Sweep

  • Sweep time
    • @ RBW=1MHz,      MIN SPAN=50MHz
    • MIN SPAN <= 200 ms

Display

  • Type     Touchscreen
  • Resolution     480 x 3 (RGB) x 272
  • Size     4.3 inch
  • Color arrangement   RGB-stripe

Other properties:

  • Mass memory 8 GB
  • Input voltage 5V DC 3A
  • Interface USB Type-C
  • Battery life up to 4h
  • Operating temperature -15°C to +55°C / 5°F to 131°F
  • Dimensions 135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 inch
  • Weight 0.57 kg / 20.11 oz

SAF Tehnika Spectrum Compact Series Spectrum Analysers brochure

SAF Spectrum Compact 2-8 GHz datasheet

Product features may vary between different models and configurations. They are subject to change without prior notice.
