SAF Tehnika 3GHz Spectrum Analyser

Description

SAF Tehnika 3GHz Spectrum Analyser

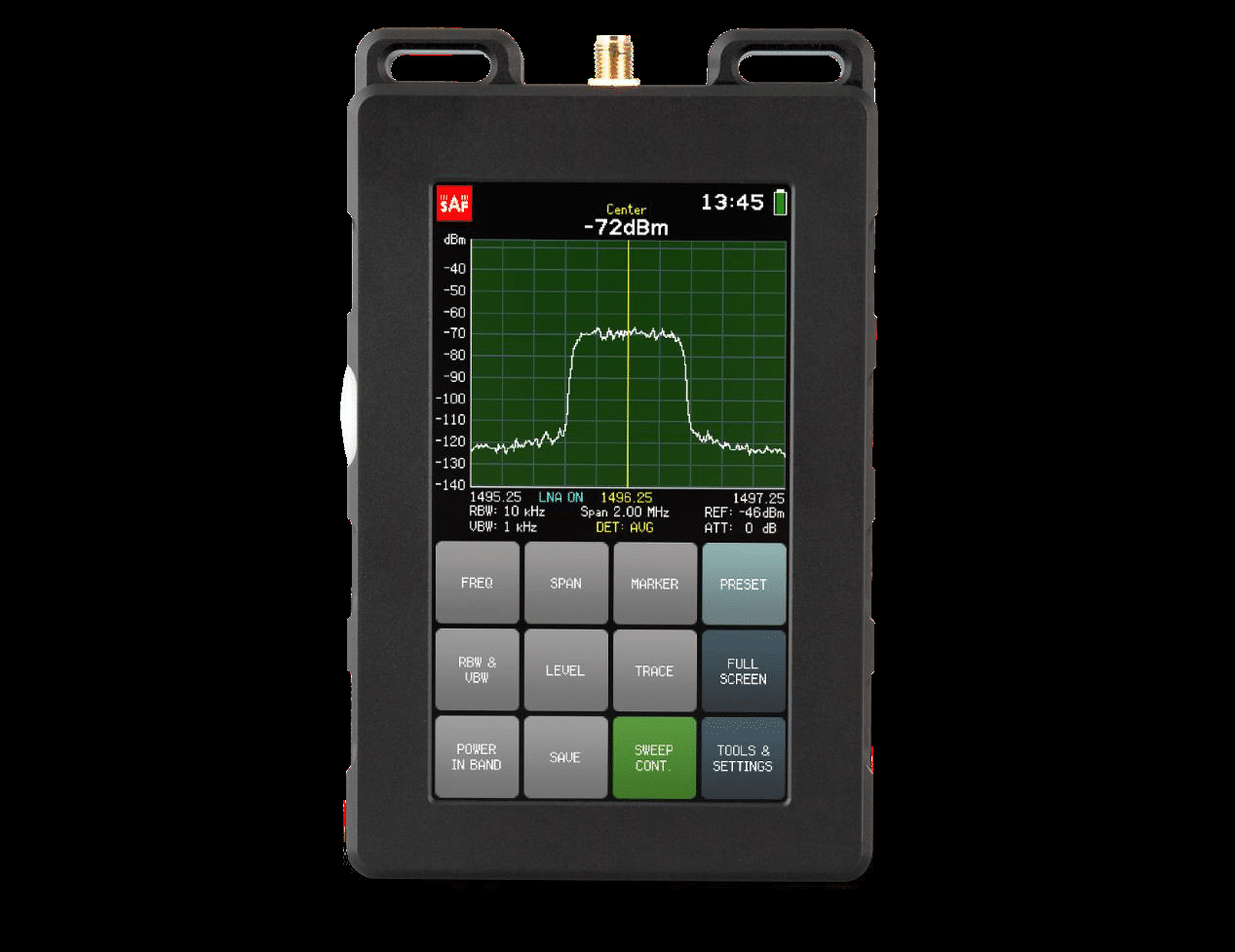

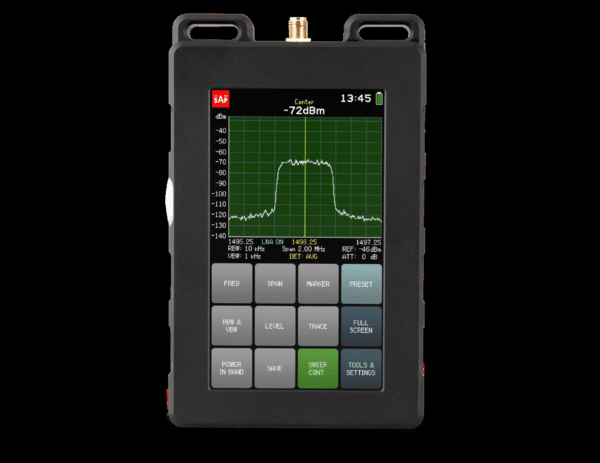

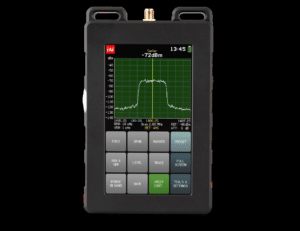

The SAF Tehnika 3GHz Spectrum Analyser covers the range 0.3-3GHz for field and lab use in a convenient hand-held format.

SAF Tehnika 3GHz Spectrum Analyser

Measurements

  • Channel Power (measures the total power in a specified bandwidth)
  • Adjacent channel power
  • Signal bandwidth
  • Center frequency
  • Interference detection
  • Mask

Setup Parameters

  • Frequency: Center/Start/Stop
  • Trace mode: Normal, Max hold, Cumulative, # of Averages, Min/Max Hold
  • Span: Max Span, Min Span, Selected Span

Save

  • Proprietary format
  • Saves actual data
  • Continuous sweep record
  • Recort-time plot display (pseudo-spectrogram)

Sweep Functions

  • Sweep: Continuous, Manual Trigger

Trace Functions

  • Trace operations: Normal, Max hold, # of Averages, Cumulative, Min/Max Hold

Marker Functions

  • Marker: Peak search, set marker to center

Settings

  • LNA ON/OFF
  • RBW, VBW

Frequency

  • Frequency Range:        300 – 3000 MHz
  • Frequency Resolution 10 kHz
  • Frequency Reference
    • Aging ±1.0 ppm/1 year
    • Accuracy: ±2.5 ppm (25°C ±25°C) + aging
  • Frequency span 0.5 MHz to full

Bandwidth (Performance Sweep Mode)

  • RBW 10 kHz; 30 kHz; 100 kHz; 300 kHz
  • VBW 1 kHz; 3 kHz; 10 kHz; 30 kHz;

Amplitude Ranges

  • Measurement Range DANL to +20 dBm

Amplitude Accuracy (single sine wave input, Performance Sweep Mode) 20° C to 30° C Typical: ±1 dB

VSWR

  • 300 – 3000 MHz < 1.5

Input attenuator

  • 30 dB with 5 dB step

SSB Phase Noise

  • 20°C to 30°C, Fc = 1 GHz
  • Carrier offset:   100 kHz offset   <-90 dBc/Hz

Maximum Input Level

  • DC voltage        –   0 V
  • CW RF power  –  Attenuation = 30 dB ; + 20 dBm (100 mW), LNA = OFF
  • Max. Damage level   + 27 dBm

Displayed Average Noise Level (DANL)

  • Attenuation = 0 dB, RBW = VBW = 10 kHz, AVG detector, trace average 16, 20°C to 30°C, input impendence = 50 Ω
    • LNA ON:     300 MHz to 3 GHz -128 dBm typ
    • LNA OFF:   300 MHz to 3 GHz -108 dBm typ

Level Display

  • Trace detectors:     AVG; MAX; MIN
  • Trace functions:    Clear write, max hold, average, cumulative, min/max hold

Frequency response

  • 300 – 3000 MHz; amplitude accuracy ±1 dBm

LNA

  • Gain 300 – 3000 MHz +20 dB

RF Input Connector

  •      Impedance 50 Ω (nom.)
  •      Connector     SMA F

Sweep

  • Sweep time
    • @ RBW=300kHz, MIN SPAN=30MHz        MIN SPAN < 500 ms

Display

  • Type:     TFT LCD resistive touchscreen
  • Resolution:     480 x 272
  • Size:     4.3 inch (Diagonal)
  • Active area:     95 x 53.8 mm

Other Properties

  • Mass memory 8 GB
  • Input voltage 5V DC 3A
  • Interface USB Type-C
  • Battery life up to 4h
  • Operating temperature -15°C to +55°C / 5°F to 131°F
  • Dimensions 135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 inch
  • Weight 0.57 kg / 20.11 oz

SAF Tehnika Spectrum Compact Series Spectrum Analysers brochure

SAF Tehnika 0.3-3GHz Spectrum Analyser brochure

Product features may vary between different models and configurations. They are subject to change without prior notice.
