SAF Tehnika 20GHz Spectrum Analyser

Description

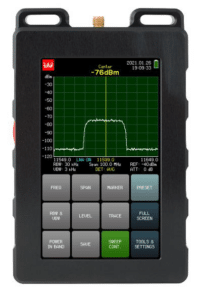

SAF Tehnika 20GHz Spectrum Analyser

SAF Tehnika 6-20GHz Spectrum Analyser

Measurements

  • Channel Power (measures the total power in a specified bandwidth)
  • Adjacent channel power
  • Signal bandwidth
  • Center frequency
  • Interference detection
  • Mask

Setup Parameters

  • Frequency: Center/Start/Stop
  • Trace mode: Normal, Max hold, Cumulative, # of Averages, Min/Max Hold
  • Span: Max Span, Min Span, Selected Span

Save

  • Proprietary format
  • Saves actual data

Sweep Functions

  • Sweep: Continuous, Manual Trigger

Trace Functions

  • Trace operations: Normal, Max hold, # of Averages, Cumulative, Min/Max Hold

Marker Functions

  • Marker: Peak search, set marker to center

Settings

  • LNA ON/OFF
  • ATT
  • RBW, VBW
  • Signal ID

Frequency

  • Frequency Range 5 925 – 20 000 MHz
  • Frequency Resolution 30 kHz
    • Frequency Reference
    • Aging ±1.0 ppm/1 year
  • Accuracy: ±2.5 ppm (25°C ±25°C) + aging
  • Frequency span 1.5 MHz to full

Bandwidth (Performance Sweep Mode)

  • RBW 30 kHz; 100 kHz; 300 kHz; 1MHz
  • VBW 1 kHz; 3 kHz; 10 kHz; 30 kHz; 100 kHz;

Amplitude Ranges

  • Measurement Range DANL to +20 dBm

Amplitude Accuracy (single sine wave input, Performance Sweep Mode):

  • 20° C to 30° C Typical: ±1 dB

VSWR

  • 5.925 – 20 GHz < 2.0

Input attenuator

  • 30 dB with 5 dB step

SSB Phase Noise

  • 20°C to 30°C, Fc = 10 GHz
  • Carrier offset     100 kHz offset     <-90 dBc/Hz

Maximum Input Level

  • DC voltage:     0 V
  • CW RF power Attenuation = 30 dB ; + 20 dBm (100 mW), LNA = OFF
  • Max. Damage level:     + 27 dBm

Displayed Average Noise Level (DANL)

  • Attenuation = 0 dB, RBW = VBW = 30 kHz /RBW= 1 MHz, VBW = 1 kHz,
  • AVG detector, trace average 16, 20°C to 30°C, input impendence = 50 Ω

LNA ON

  • 5.925 GHz to 20 GHz
  • -110 dBm @ 30kHz; -100 dBm @ 1MHz RBW typ.

LNA OFF

  • 5.925 GHz to 20 GHz
  • -90 dBm @ 30kHz; -75 dBm @ 1MHz RBW typ.

Level Display

  • Trace detectors:     AVG; MAX; MIN
  • Trace functions:     Clear write, max hold, average, cumulative, min/max hold

Frequency response

  • 5.925 – 20 GHz; amplitude accuracy ±1 dBm

LNA ON/OFF

  • Gain 5.925 – 20 GHz +20 dB

RF Input Connector

  • Impedance:    50 Ω (nom.)
  • Connector:     SMA F

Sweep

  • Sweep time
    • @ RBW=1MHz,     MIN SPAN=50MHz
    • MIN SPAN <= 200 ms

Display

  • Type:     Touchscreen
  • Resolution:     480 x 3 (RGB) x 272
  • Size:     4.3 inch
  • Color arrangement:     RGB-stripe

Other Specifications:

  • Mass memory 8 GB
  • Input voltage 5V DC 3A
  • Interface USB Type-C
  • Battery life up to 4h
  • Operating temperature -15°C to +55°C / 5°F to 131°F
  • Dimensions 135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 inch
  • Weight 0.57 kg / 20.11 oz
