DAT60KUL RF Step Attenuator 24GHz, 0-60dB


Available on back-order


DAT60KUL RF Step Attenuator 1-24GHz, 0-60dB

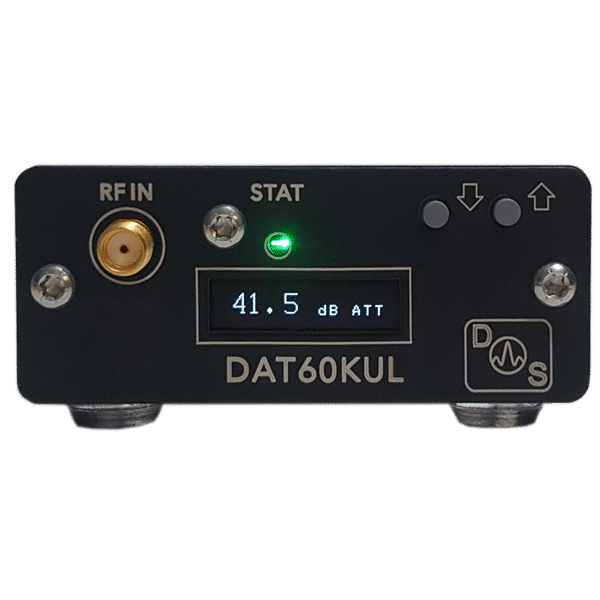

DS Instruments DAT60KUL 24GHz step attenuator

DAT60KUL RF Step Attenuator 24GHz, 0-60dB

DS Instrument’s new, cutting-edge DAT60KUL RF Step Attenuator 24GHz, 0-60dB Digital Programmable Microwave Attenuator is a stand-alone, USB, and Ethernet controlled digital attenuator with 0.5dB steps, 0 to 60dB range, and ultra-low insertion loss. This high-frequency, wideband device features a bright OLED display and front user control buttons. Input frequency range is extremely wideband covering from 1GHz to 24GHz. No host PC is required to use this device. Automated scripted control is simple, requiring no extra drivers, just a system-standard virtual COM port connection and SCPI based text commands.

Upgraded Rev 3 for 2022!

Programmable DAT60KUL Digital Attenuator Specs:

  • Frequency range: 1GHz – 24GHz
  • Insertion loss: < 10dB Typical
  • Attenuation setting: 0-60dB
  • Minimum step size: 0.5dB
  • Return loss: 10dB typical
  • Max power (hot-switching): +25.0dBm
  • Max power (steady-state): +28.0dBm
  • 0.1dB compression: +27dBm
  • IP3: +50dBm
  • Dimensions: 2.75″ x 1.25″ x 2.15″

DAT60KUL Features:

  • SCPI command support via USB COM port
  • Front buttons and convenient OLED display
  • Audio feedback
  • Power: 5v standard Micro-USB
  • PC control software included
  • Ethernet Included as standard!
  • Ultra-precision 26GHz impedance-matched microwave SMA RF connectors

Common RF Applications:

  • Automated testing environments
  • General RF Lab use
  • Control Systems
  • Cellular equipment testing
  • Production verification
  • Educational / university lab use
  • Aerospace / Defense Research
  • Radar
  • Phased array applications

Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
