$99.00
VLM-63-2W+ RF Limiter 6GHz Overview The Minicircuits VLM-63-2W-S+ RF Limiter 6GHz reacts almost instantaneously to protect sensitive devices from power surges and other unwanted signals at the device input. For inputs >12 dBm, the output power remains about 11.5 dBm, whereas lower-level input losses are only 0.4 dB typ. These... Read More
Out of stock
The Minicircuits VLM-63-2W-S+ RF Limiter 6GHz reacts almost instantaneously to protect sensitive devices from power surges and other unwanted signals at the device input. For inputs >12 dBm, the output power remains about 11.5 dBm, whereas lower-level input losses are only 0.4 dB typ. These units are housed in a patented, rugged unibody enclosure (1.43” x 0.410”) specifically designed to function in tough environments such as manufacturing sites, train tunnels, weapon systems, or anywhere sensitive components, such as low noise amplifiers, need protection.
When using a Signal Hound spectrum analyzer, attaching one of these limiters to the device when connecting an antenna provides a safeguard against overloading the front end with too much input.

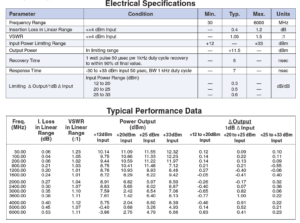

Refer: Data Sheet.
| Weight | 0.1 kg |
|---|---|
| Dimensions | 4 × 2 × 2 cm |
