RLB254NF Return Loss Bridge


Out of stock


RLB254NF Return Loss Bridge Applications

Return loss bridges are useful in measuring VSWR, or return loss of filters, mixers, antennas and amplifiers. With directivity ratings of better than 40 dB, EAGLE bridges yield excellent results. The bridges may also be used for coupling two generators for inter-modulation testing, or power splitting for levelling systems.

All EAGLE bridges have a true RF output; they can be connected directly to vector or spectrum analyzers. Even spectrum analyzers contained in communications service monitors can be used. With the high degree of accuracy found in EAGLE bridges error correction is not absolutely necessary.


The RLB254NF return loss bridge has been designed for lasting service in either laboratory or field service applications. This bridge yields laboratory performance in directivity and open/short ratio over a frequency range of 5 to 3000 MHz. For measuring VSWR for VHF, UHF, Cellular, PCS and 2.45 GHz ISM.

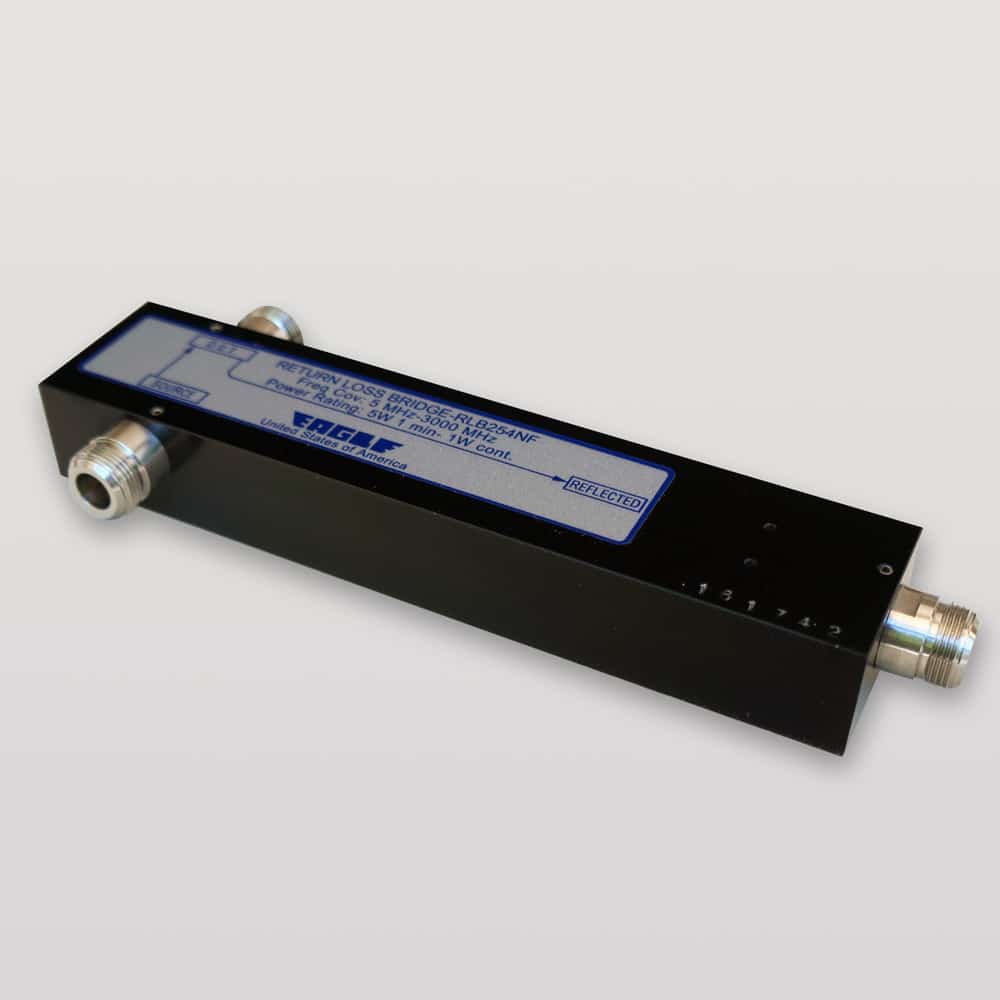

Each bridge is constructed in a machined aluminium case. Connectors are heavy duty with field replaceable center pins. Power rating is a maximum of five watts up to one minute or 1.5 watt continuous.

These bridges have three ports: SOURCE, DUT(device under test) and REFLECTED. The REFLECTED port on all EAGLE bridges is an RF port. The bridge may be connected directly to a network or spectrum analyzer. There is no REFERENCE port as the bridge contains an internal 50 ohm reference. To ensure that high quality is maintained, each unit is thoroughly inspected, both mechanically and electrically. Critical components are 100% inspected and tested before assembly into the units. After pretest the bridges are aged at 100 C and then retested.


To ensure that high quality is maintained each unit is thoroughly inspected both mechanically and electrically. All units are aged and then retested to ensure superior stability over the lifetime of the instruments.

Additional information

Weight 0.52 kg
Dimensions 25 × 11 × 10 cm
