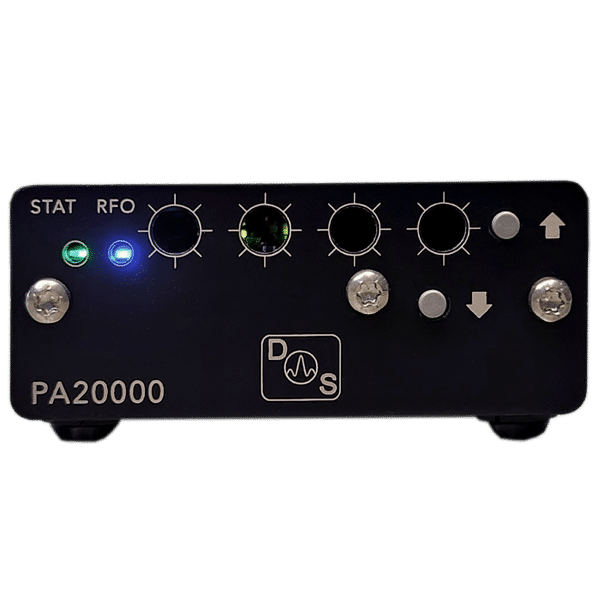

PA20000 Microwave Amplifier, 5-20GHz, 0.5W

DS Instruments Microwave Amplifier, 5-20GHz, 0.5W

The new wideband PA20000 provides a compact and affordable way to amplify signals from 5-22GHz for a variety of Ku-band applications. Simple USB-C control makes this device much faster to integrate, and more flexible than traditional multi-voltage lab-supply powered devices. All negative voltage generation, gate control biasing, current limiting, temperature monitoring, and voltage detection are done internally automatically.  The Rev4 version is powered directly from USB-C, no high voltage input required. Gain is adjustable from 0 to +30dB with control software or front buttons!

New upgraded REV4 hardware shipping for 2023!

Ku-Band 1Watt Amplifier Specifications:

• Frequency range: 5 – 22GHz
• Gain setting range: 0 to +30dB
• Variable-gain step size: 0.5dB
• P1dB: +28dBm (typical)
• Psat: +30dBm (typical)
• Max input power: +10dBm
• IP3: +39dBm
• Noise figure: 7dB
• Return loss: 10dB typical
• Power & control input: USB-C

20GHz Variable-Gain Amplifier Feature List:

• SMA RF input and output ports
• Compact aluminum enclosure
• Gain control buttons
• Status LEDs and audible alerts
• Temperature, voltage, current monitoring
• USB-C powered and controlled
• Simple plug-and-play operation with free PC control software
• 50-Ohm port impedance

PA20000 Applications

• Automated testing environments
• Satellite signal amplification
• Production verification
• Educational / university lab use
• Aerospace / defense research
• Wireless infrastructure
• Antenna research
• Communication link design
