Bitscope BS05U Mixed Signal Logic Probe

BitScope Micro Analyzer

They just don’t come any smaller than the Bitscope BS05u Mixed Signal Logic Probe!

Just like BS10 this is a fully featured mixed signal test & measurement system, a mixed signal scope in a probe!

  • 20 MHz Bandwidth.
  • 40 MSps Logic Capture.
  • 2 Analog Scope Channels.
  • 2 Analog Comparator channels.
  • 6 Logic/Protocol Analyzer channels.
  • 8 & 12 bit native analog sample resolution.
  • Decodes Serial, SPI, I2C, CAN and more.
  • Windows, Linux, Mac OS X & Raspberry Pi.
  • Built-in analog waveform & clock generators.
  • User programmable, C/C++, Python, VM API.
  • Tiny, light weight (14g) and water resistant.
  • Standard oscilloscope probe adapters available.

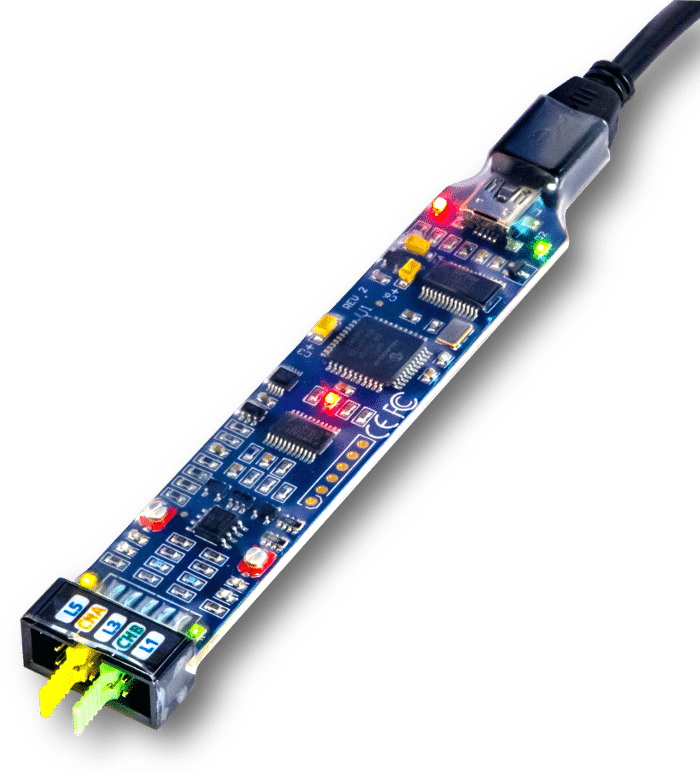

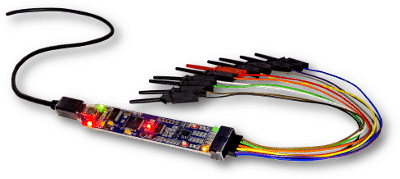

We call it BitScope Micro, a go anywhere problem solver that fits in the palm of your hand.

BitBot says perfect for Raspberry Pi!

In the lab or in the field, working in hot or wet conditions, even attached to a flying quadcopter, it’s the perfect diagnostic tool for hardware hackers, experimenters, students and engineers.

Powerful software, flexible solutions…

BitScope Micro is no toy. It works with most BitScope software and it’s fully user programmable. Program it in a variety of languages including C/C++, Python and Pascal or integrate it with third party software.

You can even program it directly via the BitScope VM API; all you need is a spare USB port and if you want to use it remotely or share it among multiple clients, simply plug it into a Raspberry Pi or any Windows, Mac or linux system and fire up BitScope Server for a full IP addressable network connected test, measurement and data acquisition system.

Packed with features for Test & Measurement…

BitScope Micro is much more than just USB connected A/D & D/A convertors and set of GPIO signals.

It’s a fully featured mixed signal oscilloscope with analog range and offset controls, comparators, triggers and more.

BitScope Micro Features

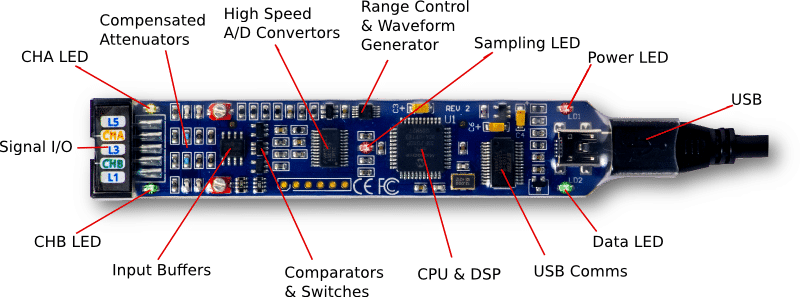

It has buffered and compensated analog inputs electrically compatible with standard oscilloscope probes, built-in waveform and clock generators and a powerful digital signal processor for post-capture data processing.

You can see what’s going via a set of bright LEDs for power, data, sampling and channel control.

All the inputs and outputs you need in the Bitscope BS05u…

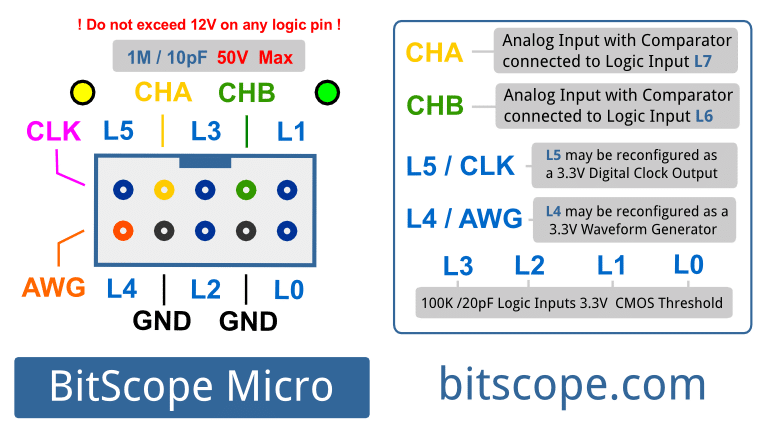

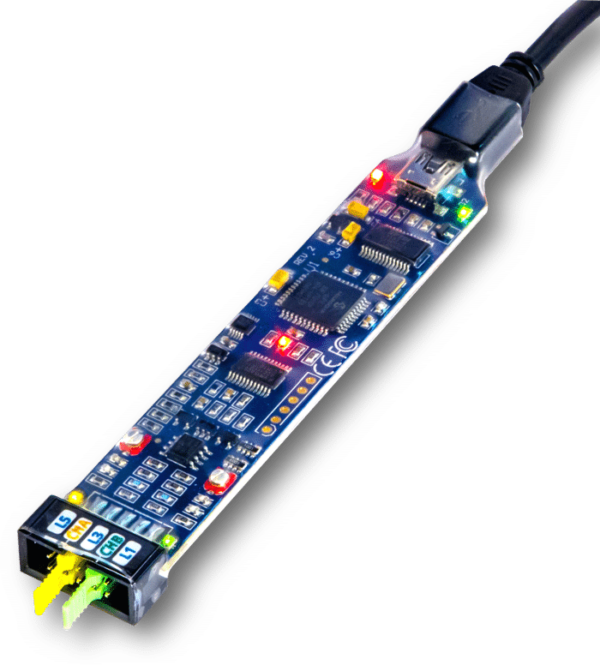

BitScope Micro’s Diagnostic Port provides access to all the analog and digital inputs and waveform and clock outputs.

BitScope Micro Analyzer Key Card

It’s conveniently arranged so the two ground pins can pair with the analog inputs, waveform and clock generator outputs or logic inputs L0, L2 and L4.

Like all BitScopes this model can capture 8 logic/timing channels but in this case logic channels L6 and L7 are derived from the analog channel comparators.

This is a very powerful feature because it means the voltage ranges and switching levels for those two channels can be adjusted to suit almost any logic family, even inverted ones!

It’s a dual channel digital oscilloscope…

BitScope Micro is a real dual channel digital oscilloscope with fully compensated 1MΩ / 20pF analog inputs.

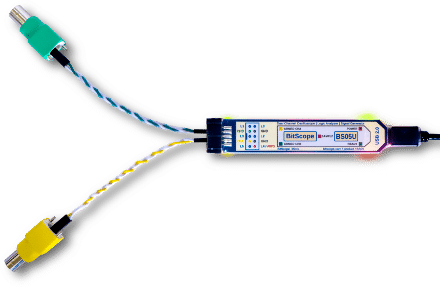

BitScope Micro Oscilloscope with BNC connections

It’s specifically designed to be able to be used with standard oscilloscope probes.

All that’s needed is a two pin header to BNC adapter which can be made for a few dollars using standard off-the-shelf components.

In addition to the supplied mixed signal clips it means the oscilloscope probes designed for any BitScope can be used.

Almost any probe can be used. If you already have them they’ll work with BitScope Micro. For example, 10:1 probes like PRB-04 can be used for higher input impedance or to look at voltages higher than 12V.

BitScope Micro is not designed for the BitScope dual channel active differential probe DP01 (for that you need BS10).

The Bitscope BS05u is an eight channel logic analyzer…

Of course BitScope Micro would not be a BitScope if it did not also have an 8 channel logic analyzer built-in!

BitScope Micro Analyzer

It’s is very similar to BS10 in terms of its digital inputs and logic analysis features.

The six channels L0 to L5 are CMOS 3.3/5V compatible and switching levels are suitable for both logic families. These inputs all have 100kΩ / 5pF input impedance. For example, doubling the input range is as simple as inserting a 100k resistor in series.

Logic channels L6 and L7 are special; their inputs are derived from the analog channels CHA and CHB via the user adjustable analog trigger comparators.

In addition to being able to capture and display the trigger signals from the analog channels it means the analog channels may be used as logic inputs with variable switching levels! For example, these two channels can be used to capture 1.2V or 1.8V logic families or 12V, 24V or other PLC logic levels.

It’s a complete mixed signal oscilloscope…

BitScope Micro functions as an oscilloscope and logic analyzer simultaneously; it is a mixed signal oscilloscope.

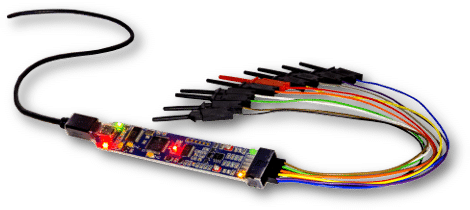

BitScope Micro Raspberry Pi Oscilloscope with Probes and Clips.

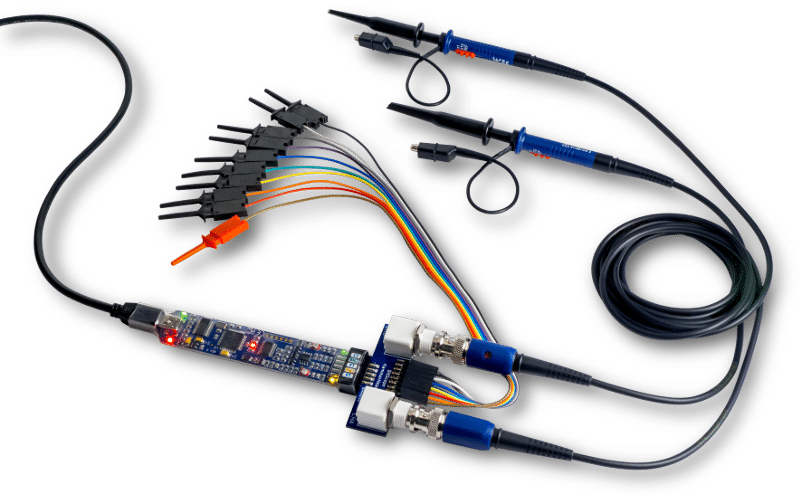

Using the BitScope Micro mixed signal oscilloscope probe adapter (MP01) it’s easy to connect everything at once.

Any passive probe with 1:1, 10:1 or other attenuation ratio can be used. The MP01 adapter also supports active differential probes, current probes or any other BNC terminated probe or sensor designed for use with a standard oscilloscope.

It’s possible to do some of this using twisted pair BNC cables as described above but MP01 makes connectivity much more convenient. It supports flexible signal routing, twisted pair connections and other connectivity options.

The Bitscope BS05u is an abitrary waveform and clock generator…

BitScope Micro would not be complete without the ability to generate waveforms and drive clocks.

BitScope Micro Waveform Generator
BitScope Micro Waveform Loopback

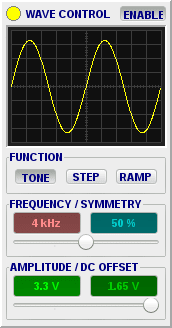

The standard waveform control panel can generate sinunsoidal, triangle, sawtooth and square waveforms out of the box.

The waveform generator in BitScope Micro is completely arbitrary; it can replay any wavetable of up to 1024 sample points programmed into it.

It could not be easier to get started.

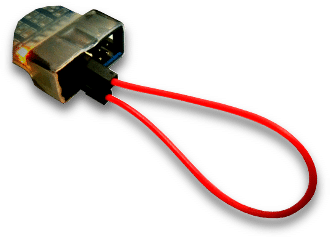

Simply connect a loop back wire or use one of the supplied test probes to connect from the L4/AWG pin or the L5/CLK pin to any input channel to experiment with waveforms and clocks.

You can use the waveform or clock generators to calibrate oscilloscope probes, drive digital logic or test analog circuits such as amplifiers and signal processing systems.

The waveform and clock generators operate concurrently with the oscilloscope and logic analyzer functions. This means you can use it to drive logic circuits while monitoring the results or use impulse or step functions to evaluate analog system responses. You can vary the waveform parameters in real-time to produce dynamically changing waveforms. For example, create a sweep to measure the frequency response of a system which BitScope Micro can do just as well because…

The Bitscope BS05u is a Spectrum Analyzer too…

There’s a lot you can see in the time domain but for complete systems analysis you’ll need a spectrum analyzer too.

BitScope Micro Spectrum Analyzer

BitScope Micro is a powerful real-time mixed domain (time and frequency) spectrum analyzer too. It can be used in baseband or narrow band (RF) applications.

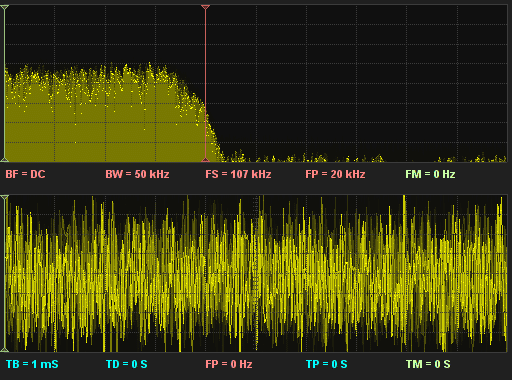

The example above shows white noise passed through a 20 kHz audio amplifier where the roll off starts at 15 kHz to -3dB at 17 kHz, -20dB at 20kHz and -50dB beyond 22kHz.

The spectrum analyzer is mixed domain; it operates in real-time simultaneously as the waveform is displayed. It can provide some very good insights into the operation of analog, RF & communications.

All in real-time…

BitBot rejoices for BitScope Micro

BitScope Micro is all these test, measurement & data acquisitions systems in one tiny low cost device. Most functions can operate concurrently and like BS10, BitScope Micro is very fast with a frame rate up to 50 Hz driving a digital phosphor display. It may be small and very low cost but works just like a quality stand-alone mixed signal oscilloscope. View waveforms, plots, spectra and more on its smooth flowing real-time display. Even live captured logic data can be viewed this way.

With its large buffers it can support very high speed one-shot capture for such a small device with post-capture zoom, scrolling and measurement. Alternatively stream capture direct to disk for off-line replay and analysis. In fact subject to its different specifications (e.g. bandwidth, channels, connector etc) it can do almost anything BS10 can do!

Low power and compatible with Raspberry Pi !

BitScope Micro Spectrum Analyzer

BitScope Micro is very low power and compatible with Raspberry Pi in addition to Windows, Mac and Linux.

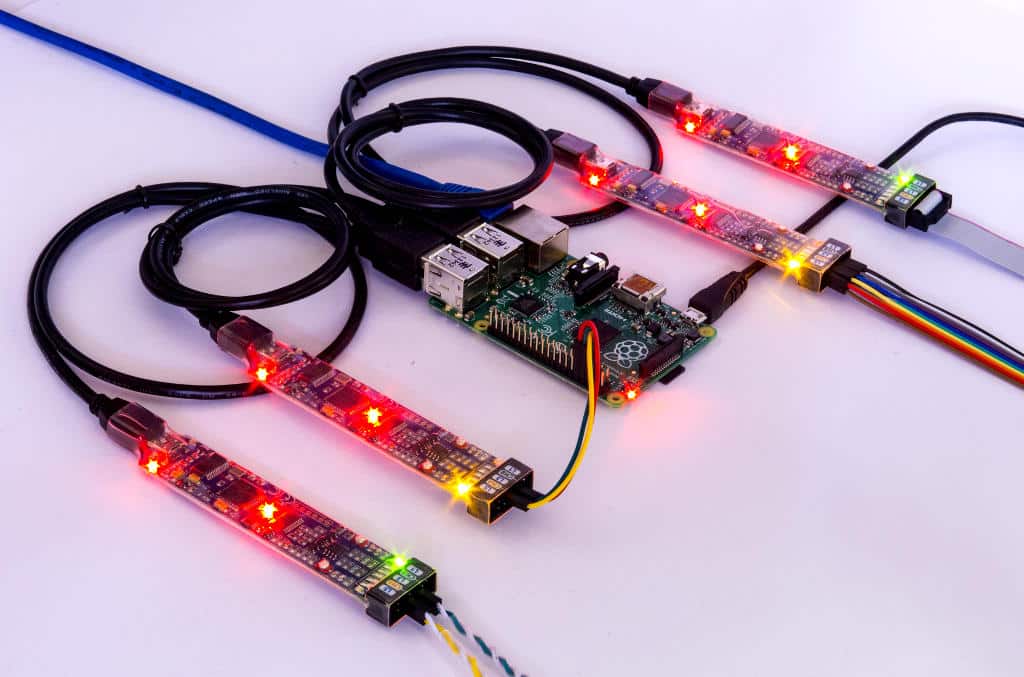

One Raspberry Pi Model B+ can connect and power up to four BitScope Micro !

In fact BitScope Micro works with any model Raspberry Pi including the new Model A+ or if you use the Model B or B+ you can connect BitScope to a network.

The BitScope DSO software application is included as standard and other options are available for download free of charge.

Almost all BitScope software is compatible with Windows, Mac, Linux and Raspberry Pi and a range of other applications are also available for download at no extra cost. Many other options are already available and more software is in development for the entire BitScope range including support for mobile and online.

See the tutorial video for full details…

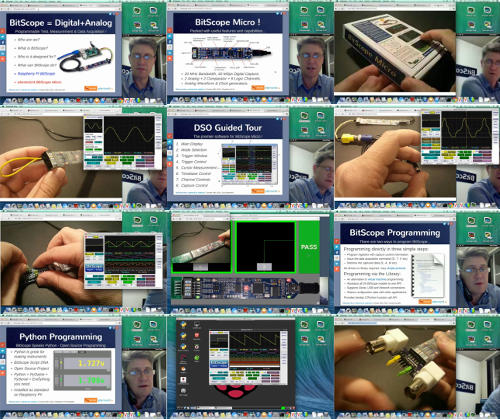

We presented a tutorial webinar hosted by Farnell element14 about BitScope Micro and Raspberry Pi.

BitScope Micro Webinar Tutorial

Additional information

Weight 0.12 kg
Dimensions 16 × 12 × 3 cm
