$9.52
Antenna 900MHz 2dBi Monopole (RPSMA) (R/A) The Antenna 900MHz 2dBi Monopole RPSMA (R/A), a 900MHz quarter wave monopole antenna with RPSMA connector, 90 degree connector mounting. This antenna is well suited for airborne UAV/FPV applications due to its light weight and small size. It must be mounted on a ground... Read More
In stock

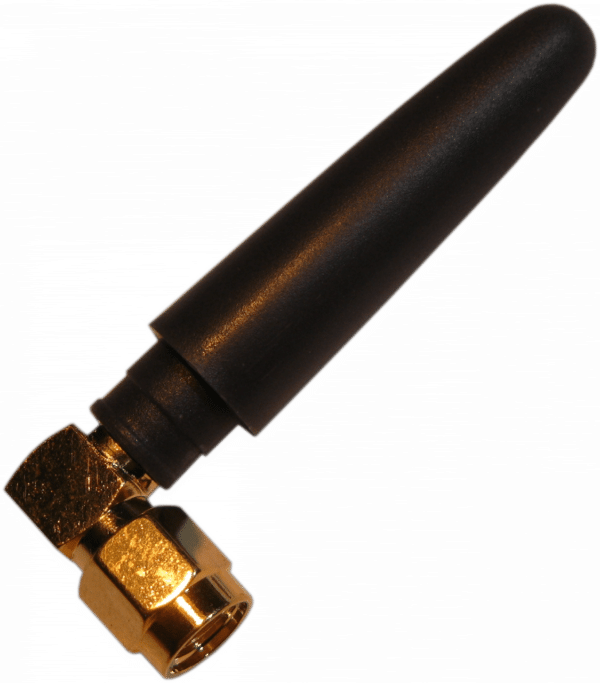

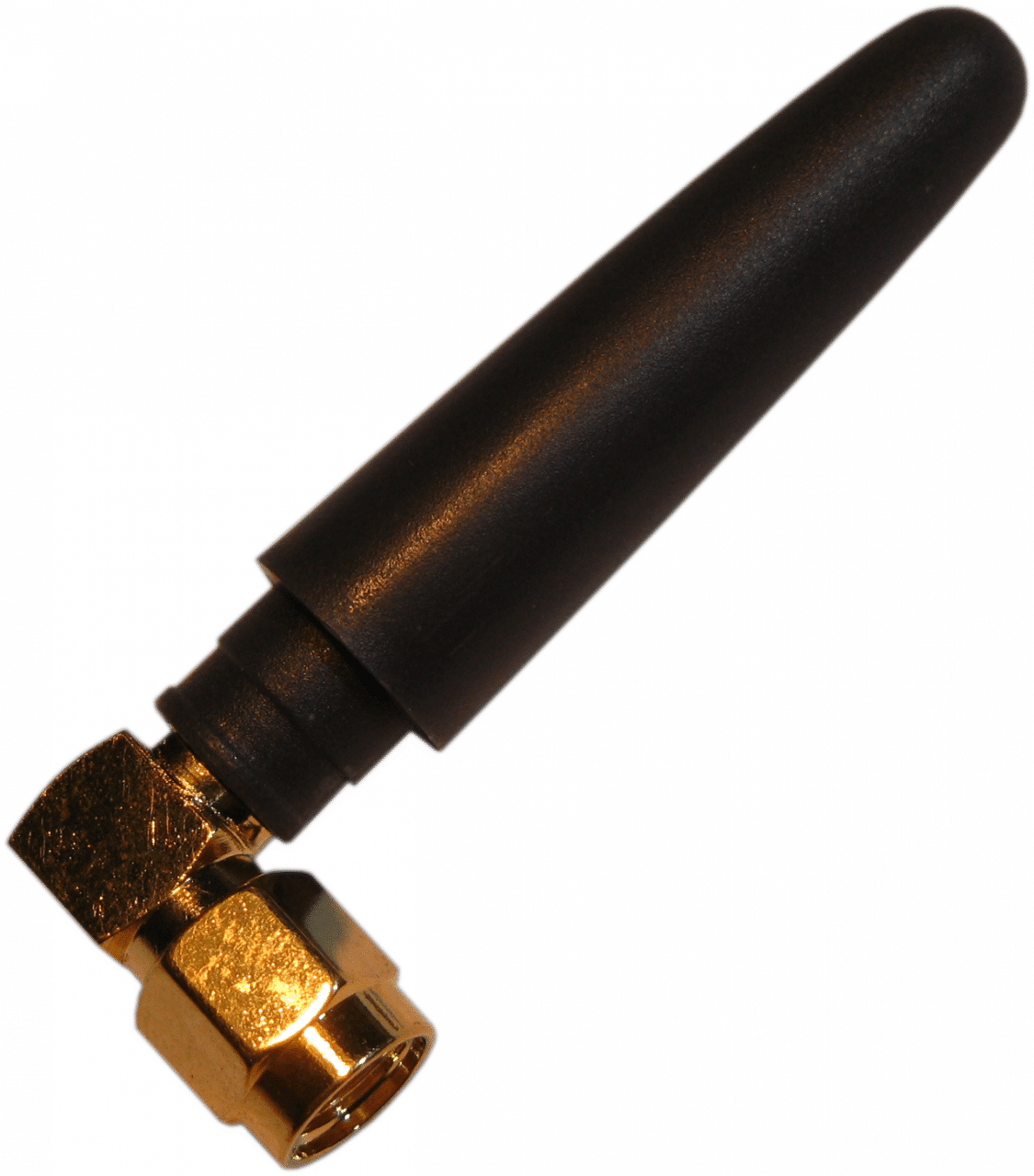

The Antenna 900MHz 2dBi Monopole RPSMA (R/A), a 900MHz quarter wave monopole antenna with RPSMA connector, 90 degree connector mounting.
This antenna is well suited for airborne UAV/FPV applications due to its light weight and small size.
It must be mounted on a ground plane to achieve the best performance.
Frequency range: 902-928MHz
Gain: 2.1dBi
VSWR: < 1.5
Impedance: 50 R
Polarisation: Vertical
Weight: 7.4g
Size: 52.2 mm long, 10.5 mm diameter at base
RF Connector: RP-SMA
| Weight | 0.1 kg |
|---|---|
| Dimensions | 6 × 1 × 1 cm |
