Antenna 900MHz 2dBi Monopole (RPSMA)

$9.52

Description

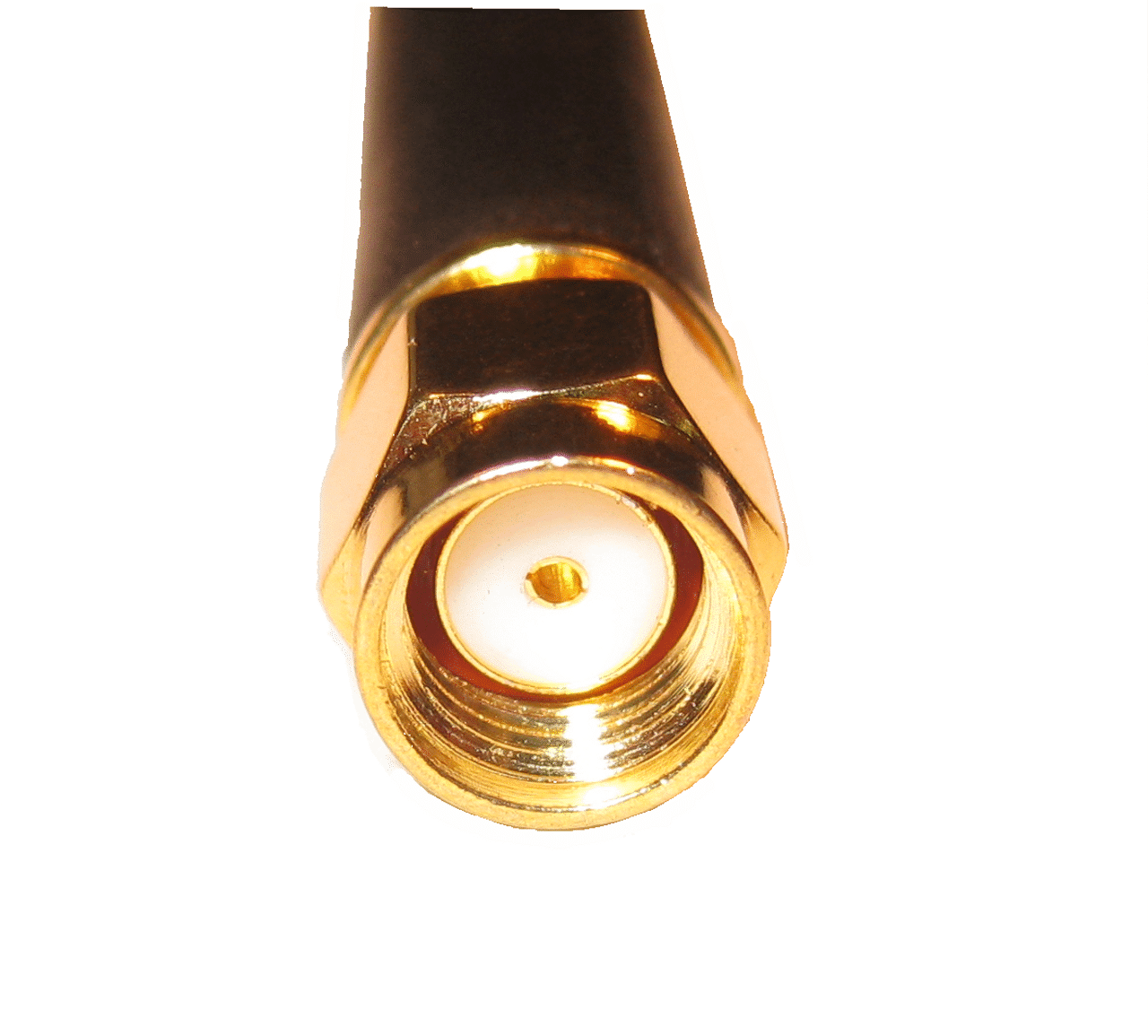

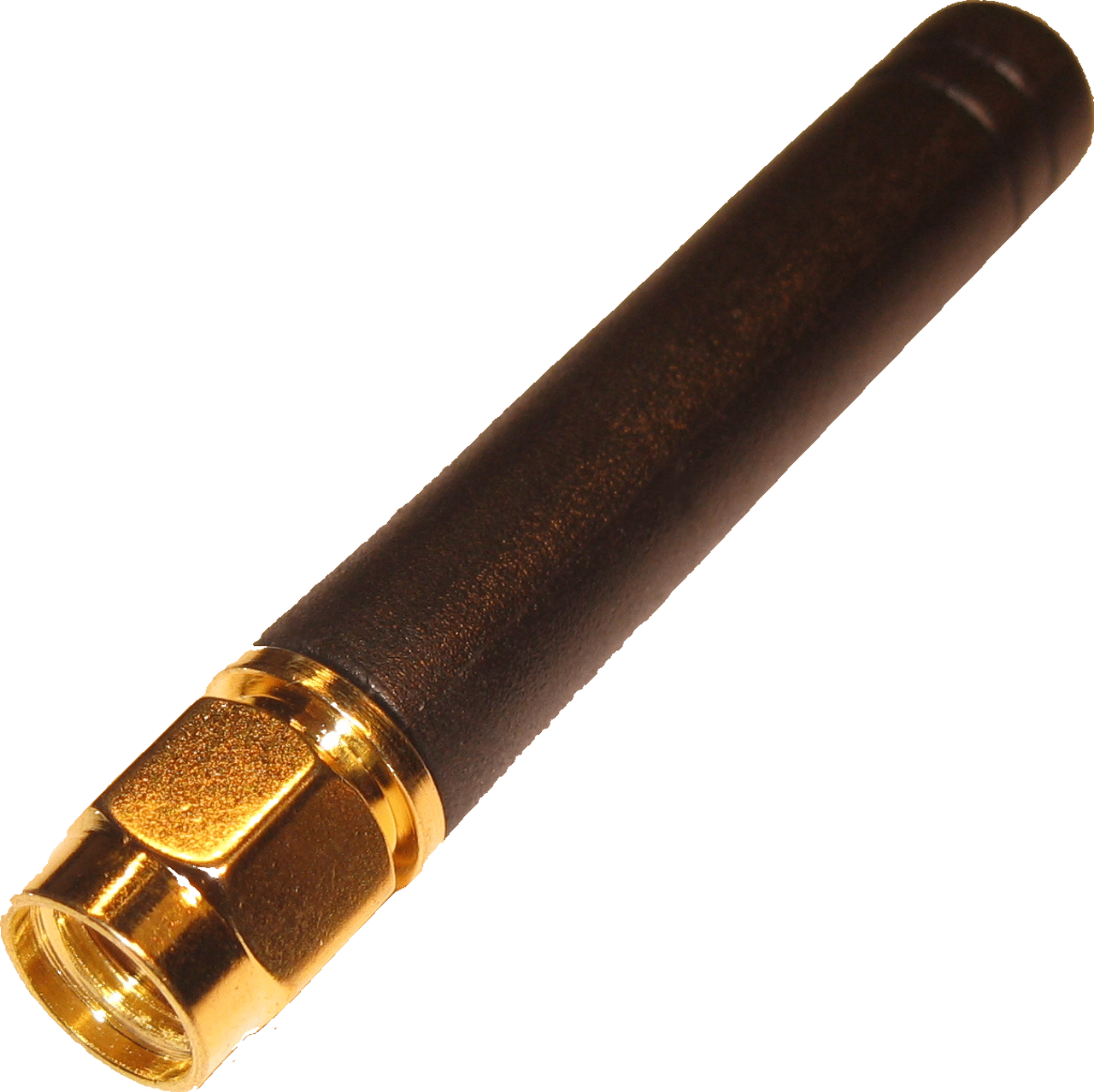

900MHz quarter wave monopole antenna with RPSMA connector.

This antenna is well suited for airborne UAV/FPV applications due to its light weight and small size.  It must be mounted on a ground plane to achieve the best performance.



Frequency range: 902-928MHz

Gain: 2.1dBi

VSWR: < 1.5

Impedance: 50R

Polarisation: Vertical

Weight: 10g

Size: 51mm long, 8mm diameter

Additional information

Weight 0.1 kg
Dimensions 6 × 1 × 1 cm
