Aerobits TIM MC1

$558.00

2 in stock

Description

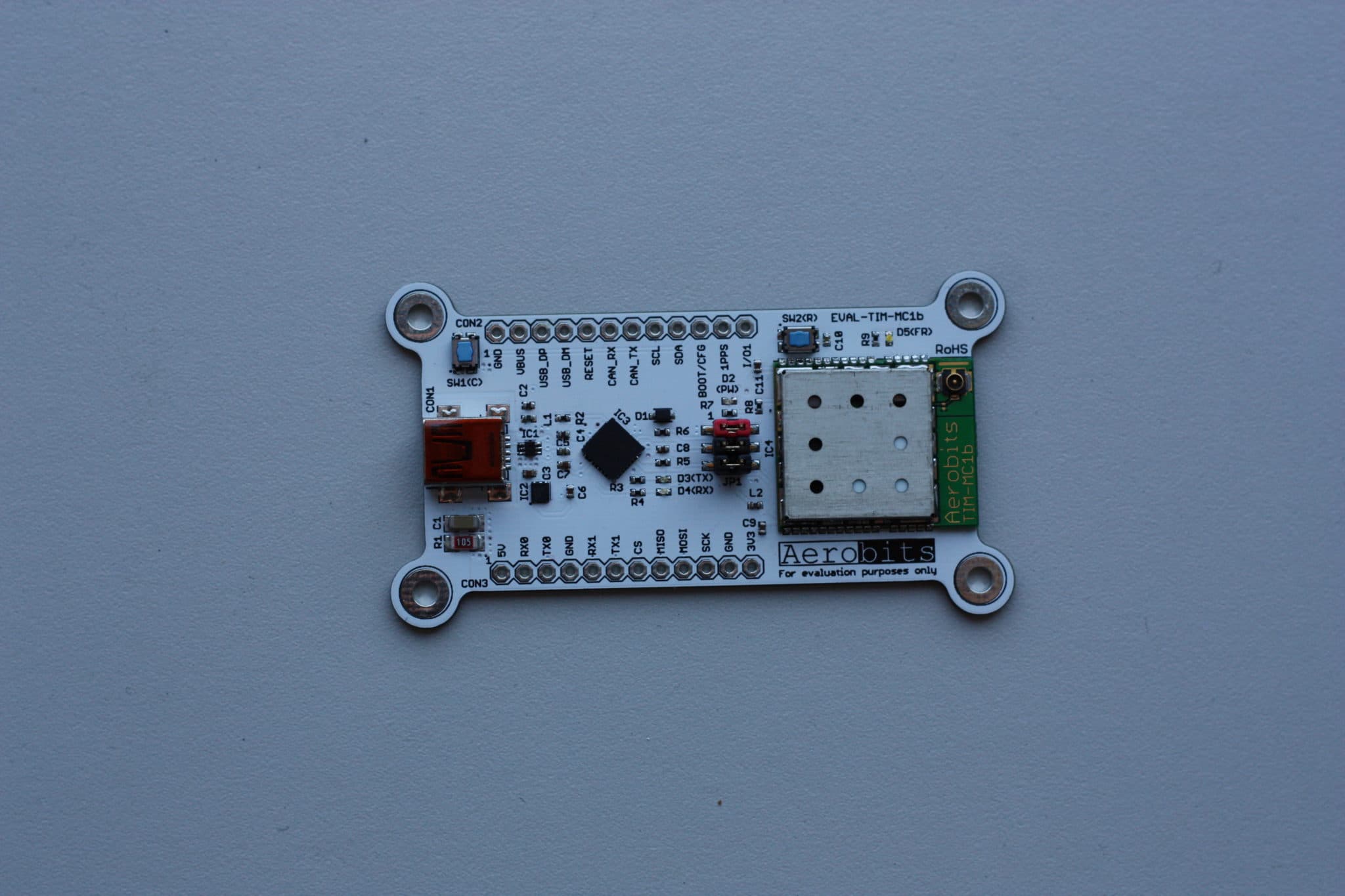

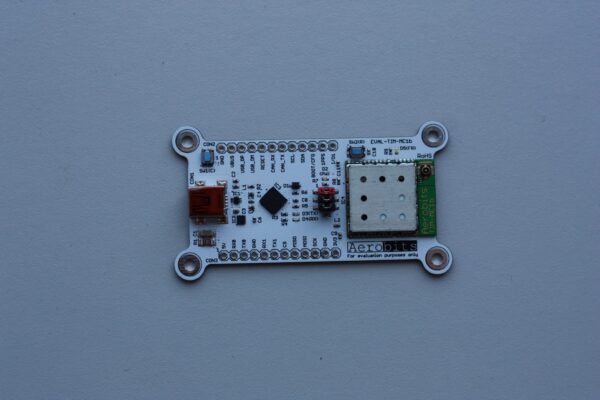

Aerobits TIM MC1 Multicore ADSB receiver module

The Aerobits TIM-MC1 Multicore ADSB receiver module is a 1090MHz, high-performance ADS-B receiver with unique combination of a multi-core processor and FPGA support. Allowing high-speed data processing, comparable to professional, ground-based stations. Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.

Features

FPGA-In-The-Loop technology for the fastest ADS-B/In implementation
High-resolution ADC with real-time signal processing based on an adaptive algorithm; best-in-class aircraft tracking
ADS-B and Mode-S with a capability of receiving thousands of frames per second
RF power measurement for each frame (useful for distance estimation in case of Mode-S)
High sensitive front-end with ranges over 200 miles
Simple module integration – programming using high-speed UART and AT commands
Scalable OEM solution with enormous customization potential
High-speed memory interface for data storage
GNSS (NMEA) input for dynamic calculations of relative distances to the aircraft
Power supply 3.3 V, current consumption ≈200mA
Designed to meet the requirements of TSO-C199
Size & weight: 23.0 x 18.0 x 2.5mm, ~4cm2 (2g)



Brochure

Manual



Applications

SAA/DAA (Sense and Avoid / Detect and Avoid)
UAS ground stations
Mobile air traffic information devices
High-density traffic surveillance
Traffic-flow analysis and statistics
For systems that meet the NextGen/SESAR philosophy

Technical specification

Absolute Maximum Ratings

ParameterMinMaxUnit
Storage Temp.-40+70C
Supply Voltage (Vcc1)2.73.6DCV
Supply Voltage (Vcc2)4.05.5DCV
Other pin voltageVSS-0.4VCC+0.4DCV
RF Input Power+10dBm

Recommended Operating Conditions

ParameterMinMaxTyp
Storage Temp.-40+70C
Supply Voltage (Vcc1)3.03.6DCV
Supply Voltage (Vcc2)4.55.5DCV

General Electrical Specification

ParameterDescriptionMinTypMaxUnit
Carrier Freq. 1090MHz
RX SensitivityFor operation at 50Ohm

U.fl connector (TT-MC1b)

-85dBm
Input Low VoltageRESET, UARTs, CAN, USB, SPI, I2C-0.30.8DCV
Input High VoltageRESET, UARTs, CAN, USB, SPI, I2C, GPIO0.7 Vcc1Vcc1+0.3DCV
Output Low VoltageUARTs, CAN, USB, SPI, I2C, GPIO0.4DCV
Output High VoltageUARTs, CAN, USB, SPI, I2C, GPIOVcc1-0.4DCV
Current Consumption (digital)200mA
Current Consumption (RF front end)60mA

Additional information

Weight0.2 kg
Dimensions10 × 10 × 1 cm
