Price range: $185.09 through $1,111.02
Aaronia OmniLOG Antennas The Aaronia OmniLOG Antenna series, omnidirectional broadband antennas specially designed for quasi isotropic (radial isotropic) measurements. It is the perfect complement to the Aaronia SPECTRAN® spectrum analyzers. Compared to our HyperLOG® antennas, the OmniLOG® antenna allows the direct, radial field strength to be measured without having to... Read More
The Aaronia OmniLOG Antenna series, omnidirectional broadband antennas specially designed for quasi isotropic (radial isotropic) measurements. It is the perfect complement to the Aaronia SPECTRAN® spectrum analyzers. Compared to our HyperLOG® antennas, the OmniLOG® antenna allows the direct, radial field strength to be measured without having to align the antenna. Thus, the field strength can be determined practically immediately.

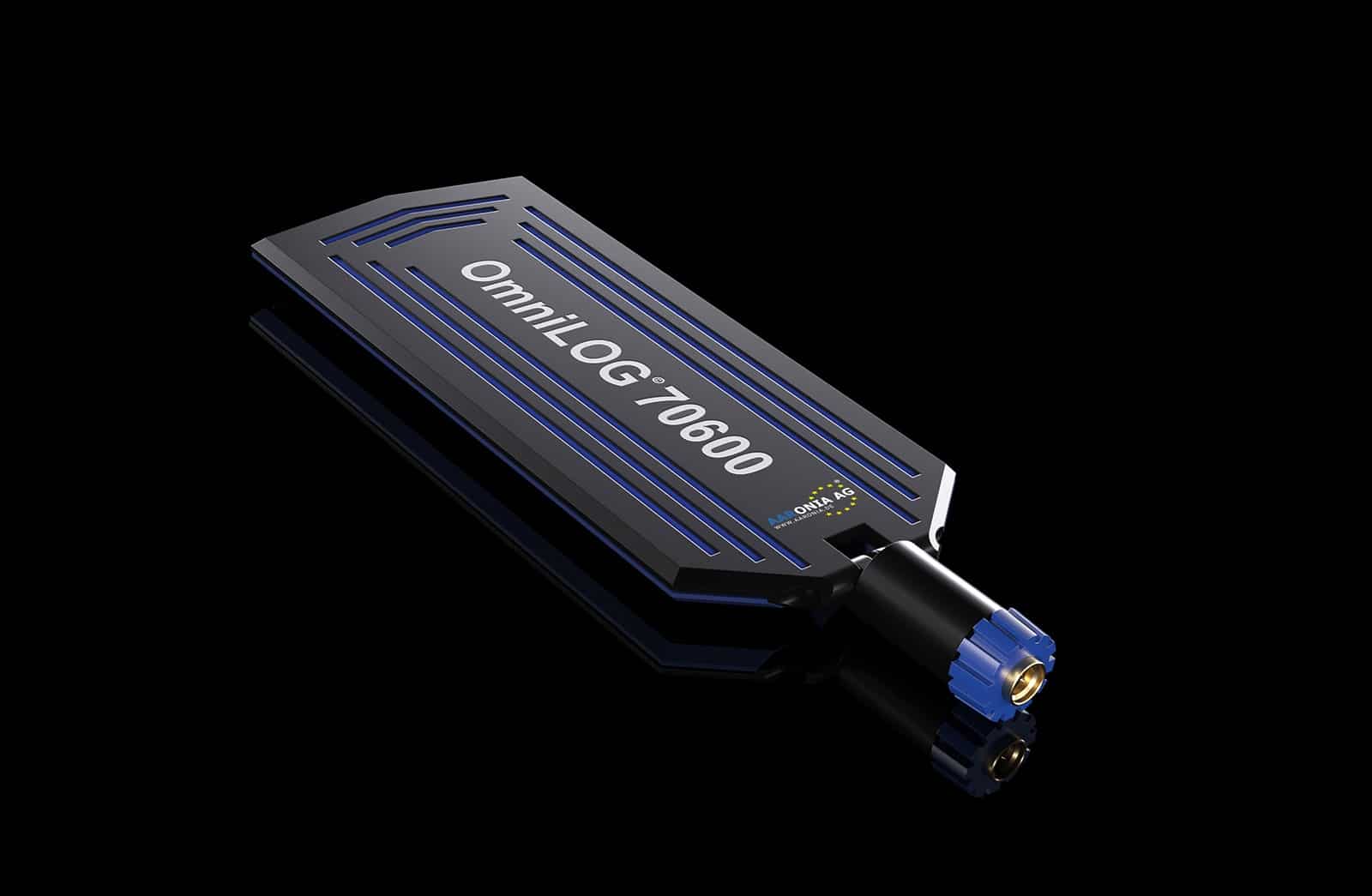

The Aaronia PC analysis software “MCS” supports the use of the OmniLOG® 70600 as a broadband antenna. Therefore, the antenna can even be used here with the SPECTRAN® measuring instruments of the V3 series with the full bandwidth.
Its extremely small dimensions, in contrast to the HyperLOG® antennas, also predestine it for inconspicuous or concealed measurements.
The OmniLOG® series omnidirectional broadband antenna is specially designed for quasi isotropic (radial isotropic) measurements. It is the perfect complement to the Aaronia SPECTRAN® spectrum analyzers. Compared to our HyperLOG® antennas, the OmniLOG® antenna allows the direct, radial field strength to be measured without having to align the antenna. Thus, the field strength can be determined practically immediately. The Aaronia PC analysis software “MCS” supports the use of the OmniLOG® 70600 as a broadband antenna. Therefore, the antenna can even be used here with the SPECTRAN® measuring instruments of the V3 series with the full bandwidth.
Its extremely small dimensions, in contrast to the HyperLOG® antennas, also predestine it for inconspicuous or concealed measurements.

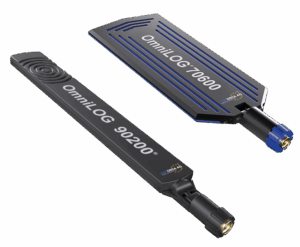

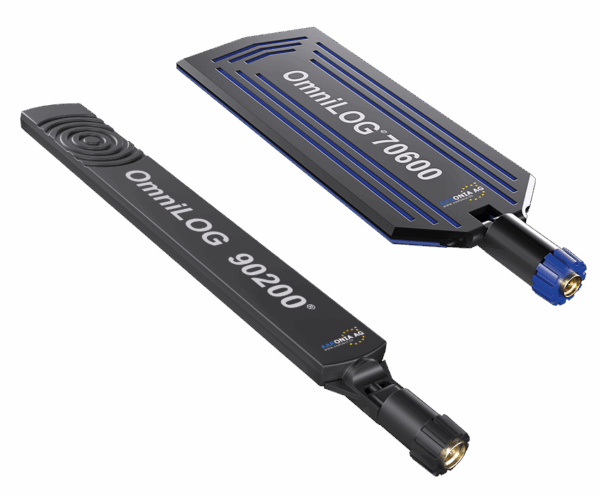

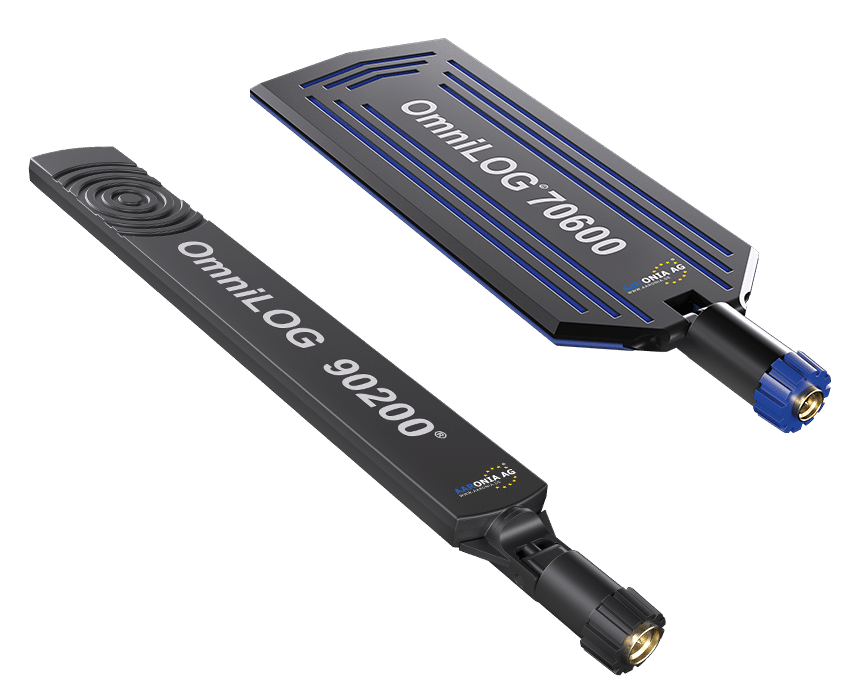

| OmniLOG 90200 | OmniLOG 70600 | OmniLOG 30800 | |
|---|---|---|---|

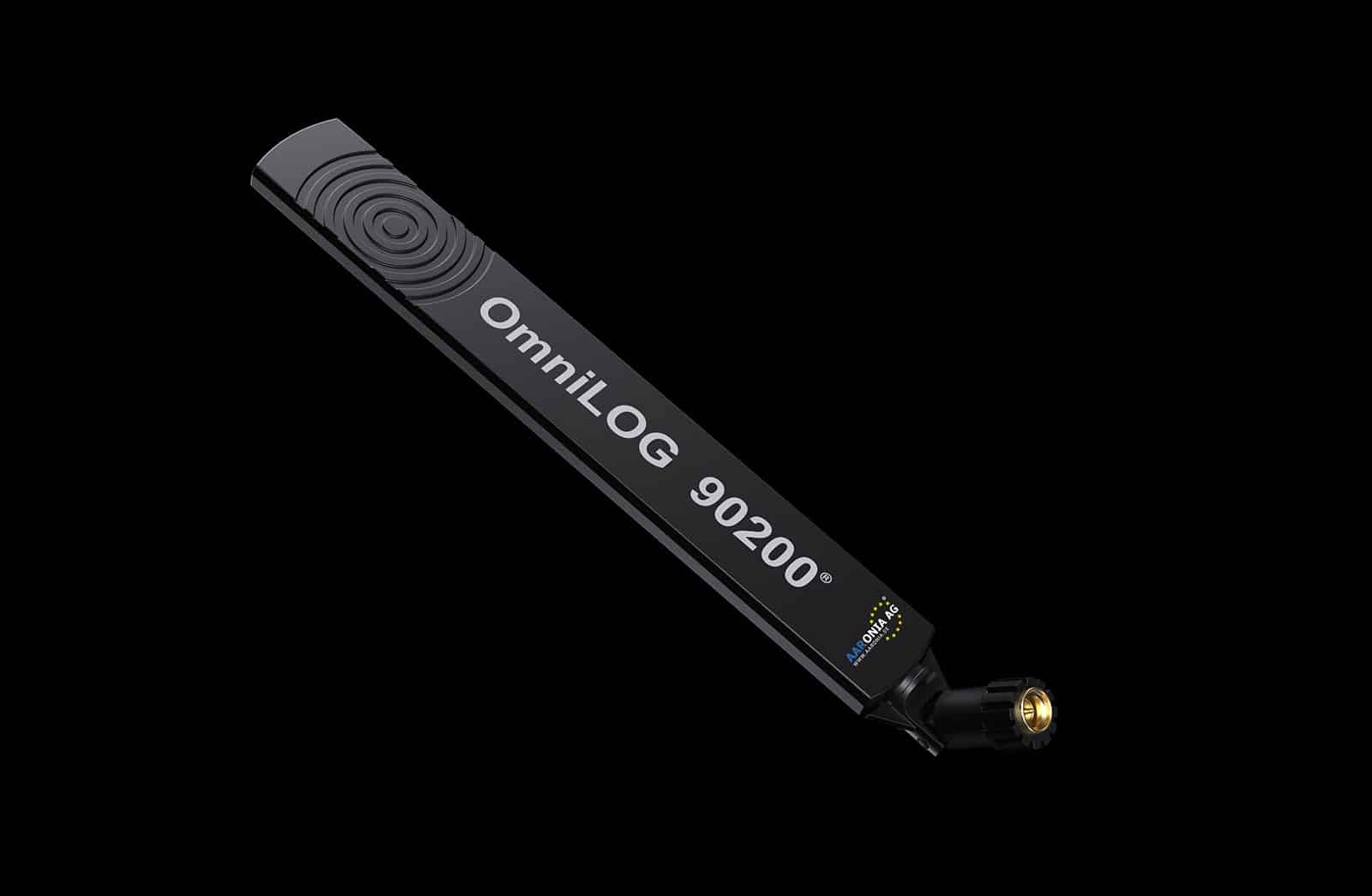

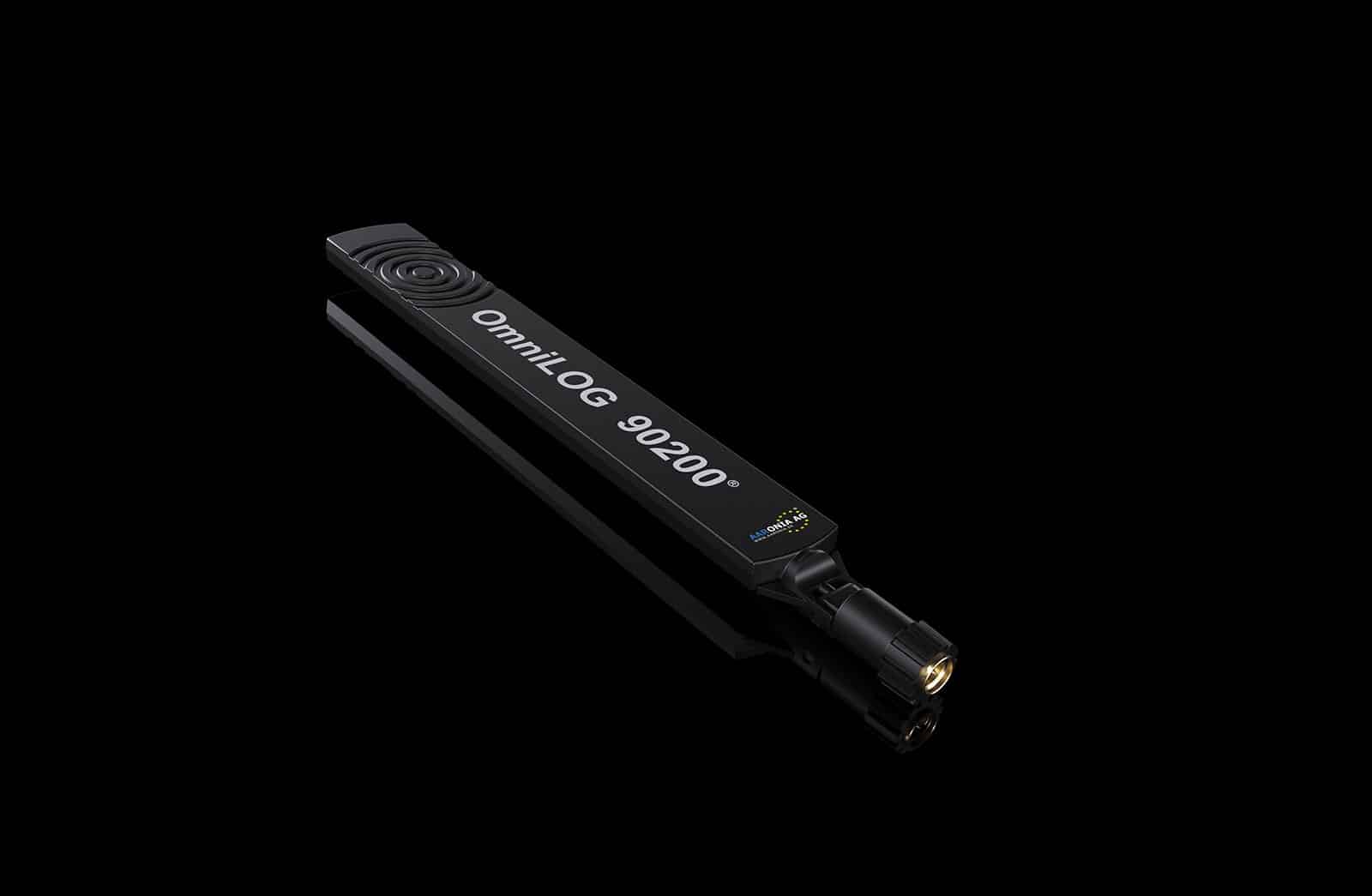

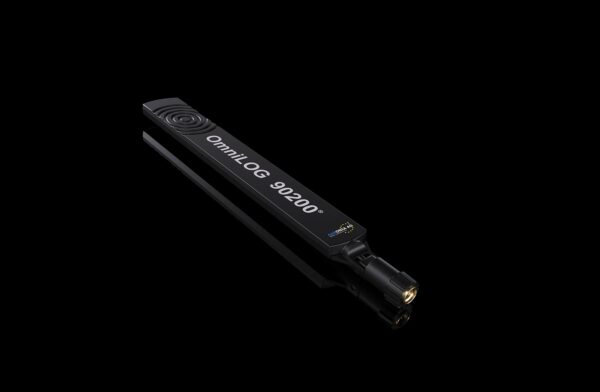

| Frequency Range | 700MHz – 2,5GHz | 680MHz – 6GHz | 300MHz – 8GHz |
| Gain | 2dBi | 3,5dBi | 3,5dBi |
| Design | Omni-Directional | ||
| Nominal impedance | 50 Ohm | ||
| VSWR (typ) | < 3:1 | ||
| Max. Input Power | 2 Watts | 5 Watts | 5 Watts |
| RF-connection | SMA (male) | ||
| Temperature range | -20°C to +70°C | -40°C to +85°C | -40°C to +85°C |
| Dimensions (L/W/D) | 210 x 22 x 15mm | 173 x 62 x 9 mm | 173 x 62 x 9 mm |
| Weight | 70g | 54g | 54g |
| Warranty | 2 Years | ||
