WLAN AH Measurements Toolkit

Signal Hound WLAN AH Measurements Toolkit

Spike™ includes specialized WLAN modulation analysis features, allowing physical layer measurements on WLAN transmitting devices and providing RF metrics to accurately evaluate your signal performance and quality. You can demodulate your waveforms and analyze modulation quality down to the bit level.

This annual license enables measurements on signals that conform to the 802.11ah standard.

This license is compatible with BB/SP/SM devices.

Features:

• Support for 1, 2, 4, and 8 MHz bandwidth signals.
• Support for MCS[0-9]+10
• Support for long and short preambles
• Configurable display
• Up to 15 measurement windows
• Automatic signal and bandwidth detection
• EVM measurements up to 50dB SNR (Using an SP/SM device)
• SCPI automation

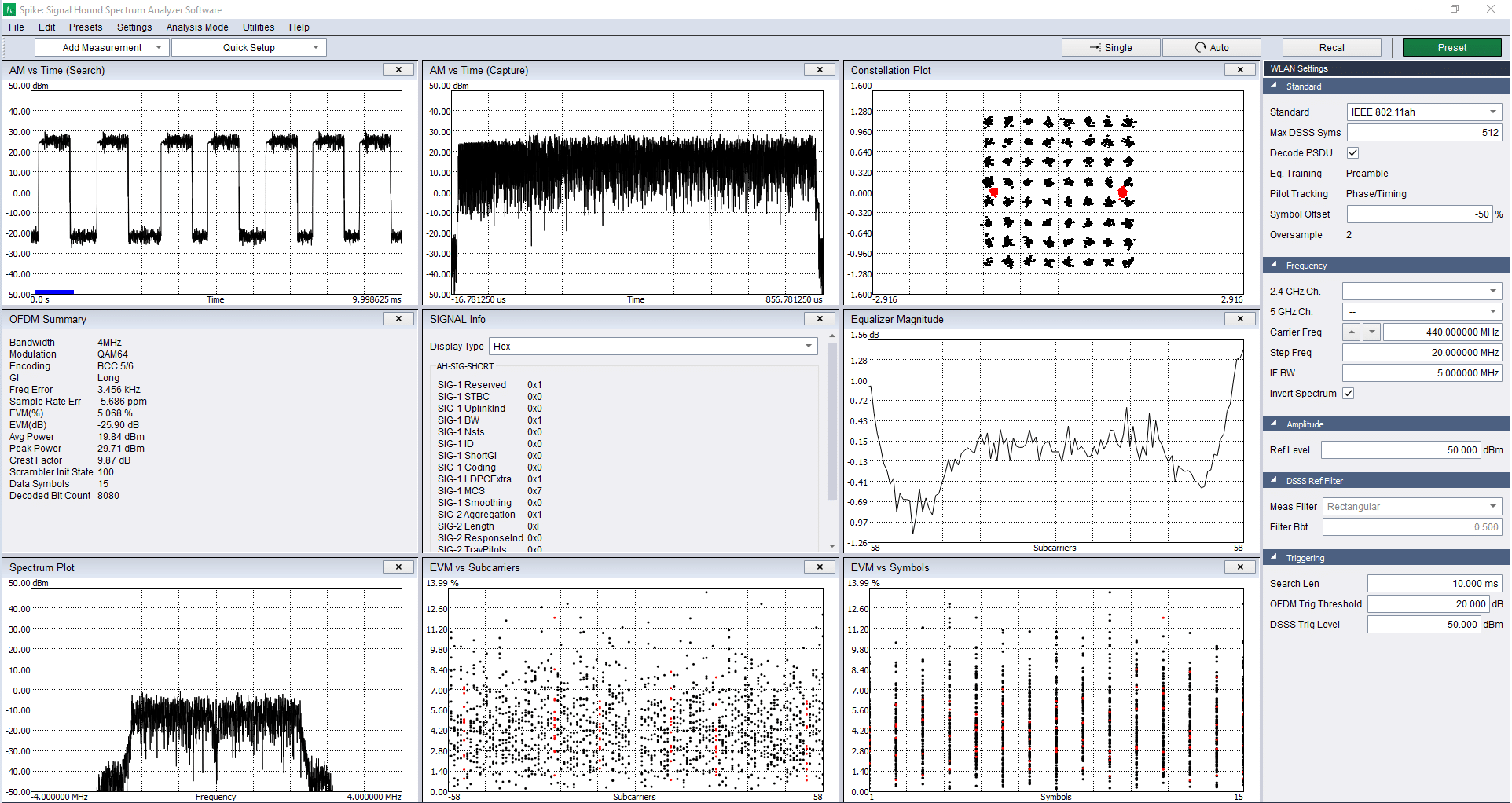

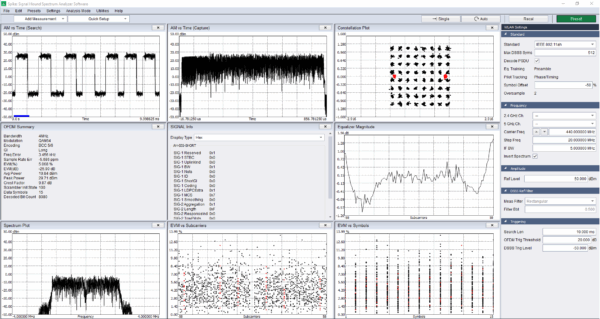

Measurements:

• EVM vs subcarrier/symbol
• Freq and time plots
• SIGNAL and payload bit decoding
• Equalizer response
• RF quality metrics

NOTE: Annual Subscription is required at the price given.
