$442.80
IntroductionThe Virtins DSO2820 is one of the second-generation USB DSOs designed and developed by Virtins Technology. This generation of USB DSOs features Virtins Technology’s unique hardware-based DSP algorithm which enhances the performance and functionality dramatically without adding extra hardware cost. When used in conjunction with Multi-Instrument(TM) software, the USB DSO... Read More
2 in stock
Introduction

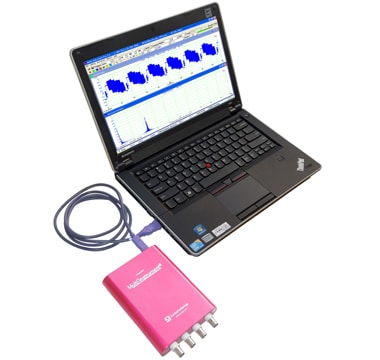

The Virtins DSO2820 is one of the second-generation USB DSOs designed and developed by Virtins Technology. This generation of USB DSOs features Virtins Technology’s unique hardware-based DSP algorithm which enhances the performance and functionality dramatically without adding extra hardware cost. When used in conjunction with Multi-Instrument(TM) software, the USB DSO converts any desktop, laptop, or tablet PC into a powerful oscilloscope, spectrum analyzer, multimeter, data logger, signal generator and so forth, all of which work simultaneously.
Virtins DSO2820 Package Contents

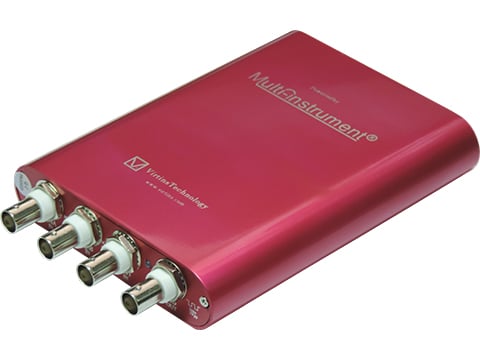

1) VT DSO-2820 unit with a hardware bundled Multi-Instrument Standard software license
2) 2 x 100 MHz Oscilloscope Probe P6100 with two switchable positions: x1, x10
3) Signal Generator Test Lead (1m)
4) USB cable (1.5m)
5) CD (contains the copy-protected Multi-Instrument software and VT DSO-2820 driver)
6) Individual voltage calibration data
Powered by Multi-Instrument(TM), a powerful multi-function virtual instrument software
Free to download and try with full functionality using your sound card:Â http://www.virtins.com/MIsetup.exe
Main Hardware Specifications
Oscilloscope
Max. Sampling Rate: 200MHz
Min. Sampling Rate: 1Hz
Equivalent Time Sampling Rate: 40GHz
Bit Depth: 8~16 bits
Analog Bandwidth: 80MHz
12 Voltage Ranges:Â +/-10mV ~Â +/-50V
DC Accuracy: 1%
Modes Supported: Frame & Streaming
Frame Buffer Size: 20k bytes per channel
Streaming Buffer Size: virtually unlimited
Analog Inputs: 2 (1 MΩ, 15 pF)
Digital Input: 1 (1 MΩ, 15 pF)
Re-calibration: supported
Signal Generator
Max. Sampling Rate: 6.25MHz
Min. Sampling Rate: 3.125kHz
Bit Depth: 10 bits
Analog Bandwidth: 150kHz
Voltage Range:Â +/-2V
DC Accuracy: 0.5%
Modes Supported: DDS & Streaming
DDS Buffer Size: 1024 x 65536 Samples
Streaming Buffer Size: virtually unlimited
Analog & Digital Output: 1 (600 Ω)
Weight | 0.5 kg |
---|---|
Dimensions | 21 × 15 × 6 cm |
