DS Instruments TT7000 RF Power and Frequency Meter

DS Instruments TT7000 RF Power/Frequency Meter

TT7000, A Multi-Purpose Instrument

The DS Instruments TT7000 RF Power/Frequency Meter combines a Microwave Power Meter, Signal Source, Frequency counter, and RF Divider in one compact instrument. The frequency counter and power meter cover up to 7000MHz. The signal generator covers from 300 to 9600MHz.

Counting and Power reading can be done simultaneously over the entire band. The power meter dynamic range is from -50dBm to +5dBm. Accuracy is typically +/- 1.0dB from 0dBm to -30dBm when the frequency count is valid. Frequency can be manually set for low power signals to calibrate the power reading value.

The SG function is fully synthesized with step size less than 10Hz using precision internal or external 10MHz reference. Adjustable output power from +10dBm to -20dBm is now standard for the TT7000 with 0.25dB steps! Signal generator and power meter can function simultaneously and will auto-calibrate to the set frequency.

The RF input can also be processed by a RF Divider with 1/2/4/8 options. The output of the RF Divider is available on the RF OUT port with adjustable power level.

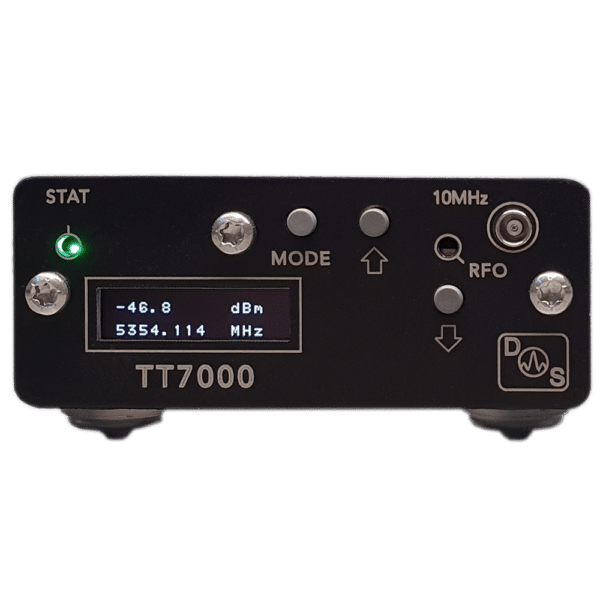

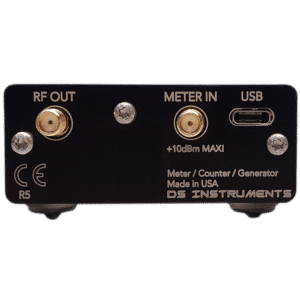

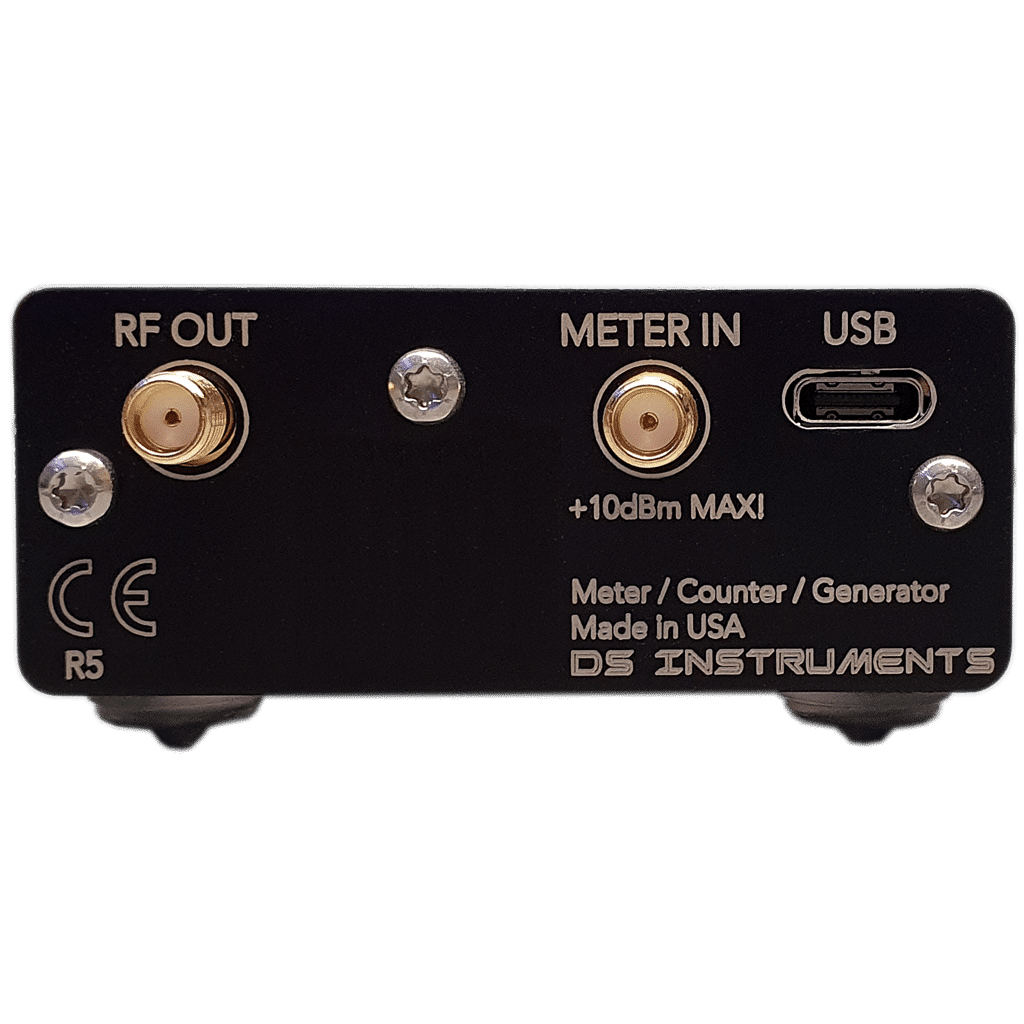

Front Panel and USB Interfaces

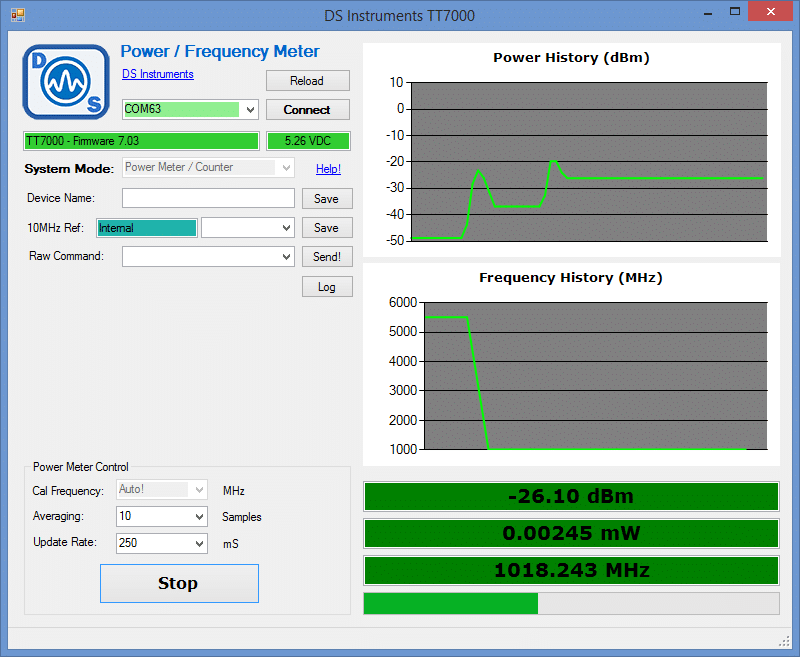

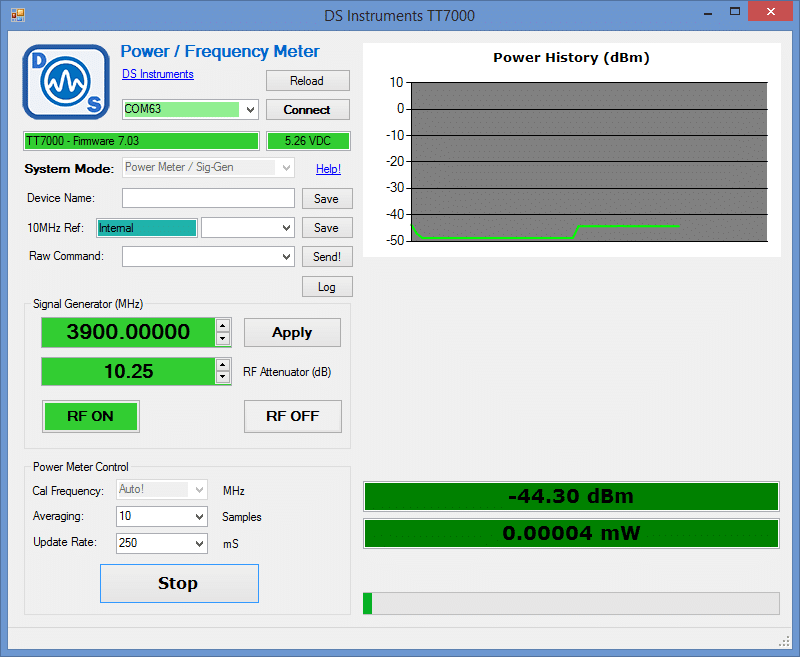

With the DS Instruments TT7000 RF Power/Frequency Meter connected to a host PC via its USB port, which is configured as a virtual COM port, industry standard SCPI text commands can control the TT7000 and retrieve instrument measurement data. The OLED display and interface buttons allow the user to not only verify incoming SCPI commands from the USB interface, but also control the unit in standalone mode with NO HOST PC REQUIRED.

Never exceed the maximum power of +15dBm on the meter INPUT port!

Power measurements can be inaccurate if the automatic counter cannot determine an
approximate frequency. Use the PC GUI to manually enter the frequency range of your signal if
auto-range is not consistent.
If the power level is too low or there is no signal input, the frequency counter display will wonder.
This is normal functionality.

The TT7000 requires up to 0.75 Amperes in certain modes. Some legacy USB ports
are limited to 0.5 Amperes. A stable 5.0 volt input voltage is critical for reliable
operation within the unit s specifications.

Many common ways to satisfy this requirement exist:

A high quality USB cable connected directly to a POWERED USB hub.
A high quality dual-port USB cable connected to two USB ports.
A high quality USB cable plugged into a blue USB 3 port.
A lithium-ion USB battery pack
A USB smart phone charger (5 Volt wall adapter)

*A High Quality USB cable uses a heavier gauge wire resulting in less voltage loss from end to end.
Our suggested cable is maximum 1 meter length with 22 AWG conductors.

SPECIFICATIONS

TT7000 SIGNAL GENERATOR SPECIFICATIONS

Parameter		Min	Max	Typ	Units
Frequency Range (Adjustable power – Band 1)		300	4800		MHz
RF Output Power (Calibrated Mode – Band 1)		-21	+10		dBm
RF Output Power (Uncalibrated Mode – Band 1)		-35	+12		dBm
Frequency Range (Fixed – Band 2)		4800	9600		MHz
RF Output Power (Fixed: 4800-9600MHz Band 2)		+10	+17	+13	dBm

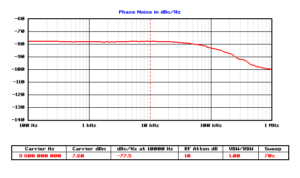

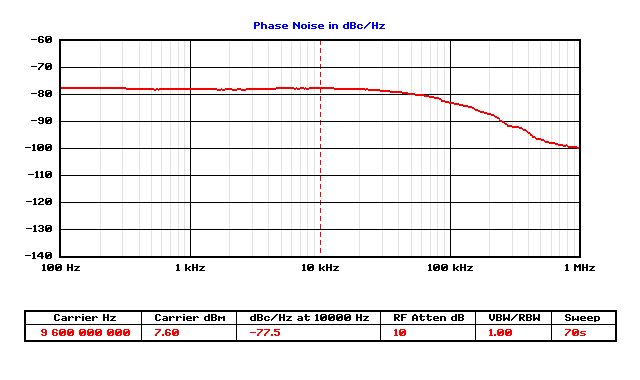

Phase Noise	@ 9600MHz, 10KHz Offset			-76	dBc

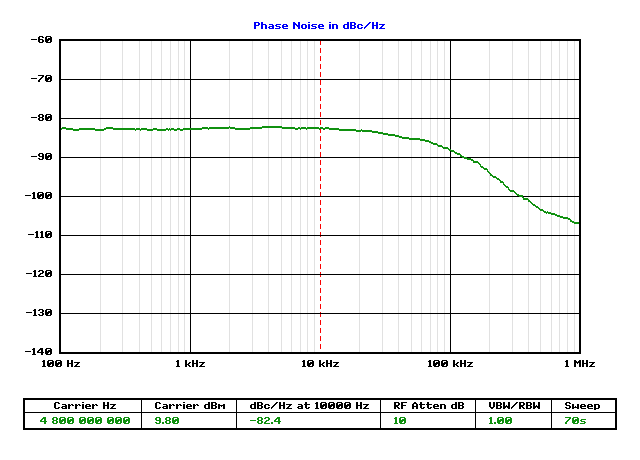

	@ 4800MHz, 10KHz Offset			-80	dBc
	@ 2100MHz, 10KHz Offset			-87	dBc
	@ 900MHz, 10KHz Offset			-95	dBc
	@ 433MHz, 10KHz Offset			-102	dBc
	@ 315MHz, 10KHz Offset			-104	dBc
Output Port Return Loss		6		10	dB
Frequency Step Size (Band 2 is doubled)			10		Hz
Step Attenuator Range (Calibrated Band)			31.5		dB
Attenuator Step Size (Calibrated Band)		0		0.25	dB
Variable Attenuator Dyn. Range (Calibrated Band)				15	dB
Power Output Level Typical Accuracy				+/-1.5	dBm
USB Voltage		4.75	5.35	5.0	Vdc
Device Current Requirement				0.75	A
Temperature Range		-30	+50	25	C
Reference Frequency MCX Input (10MHz)		-5	+12	+5	dBm
Internal 10MHz Reference Stability				+/-280	PPB

TT7000 FREQUENCY COUNTER SPECIFICATIONS

Conditions: 25C, USB supplied power

Parameter	Min	Max	Typ	Units
Input Frequency Range	100	7000		MHz
Input Power Sensitivity	-25	+10	0	dBm
Input Impedance			50	Ohm
Input VSWR, 50 to 7000MHz	1.3:1	1.6:1	1.5:1	SWR
Internal 10MHz Time Base Stability			+/-280	PPB
Resolution @ 1sec Gate Time			1000	Hz
Gate Times
( Front Panel Operation Only Supports 1sec Gate)	0.1	10	1	Sec

TT7000 RMS POWER METER SPECIFICATIONS

Parameter	Min	Max	Typ	Units
Input Frequency Range	50	7000		MHz
Dynamic Range (0.01 – 2.0GHz)	-54	+9		dBm
Dynamic Range (2.0 – 6.0GHz)	-45	+5		dBm
Dynamic Range (6.0 – 7.5GHz)	-35	+5		dBm
Max Power Input (Damage Level)			+15	dBm
Input Impedance			50	Ohm
Input VSWR, 50 to 7000MHz	1.3:1	1.8:1		SWR
Resolution			0.01	dBm
Absolute Power Accuracy	+/-2.00		+/-0.75	dBm
Relative Power Accuracy	+/-0.75		+/-0.25	dBm
Temperature Stability			+/-0.25	dBm
Power Meter Architecture			RMS
Measurement Speed	25	500	100	mS
Averaging Range	1	50	10

TT7000 RF DIVIDER SPECIFICATIONS

Conditions: 25C

Parameter		Min	Max	Typ	Units
Input Frequency Range @ RF IN Jack		300	7000		MHz
Output Frequency Range @ RF OUT Jack		37.5	3500		MHz
Divide Ratios Available	1/2/4/8
Input Power Sensitivity		-10	+10	0	dBm
Input Impedance @ RF IN Jack				50	Ohm
Input VSWR, 300 to 7000MHz		1.2:1	1.6:1	1.4:1	SWR
Output Power @ RF Out Jack		+7	+14	+10	dBm
Output Impedance @ RF OUT Jack				50	Ohm
Output VSWR		1.3:1	1.6:1	1.25:1	SWR
