SKU: TR-ONEAS

Teraranger One-A

$212.50

  • Uncategorized
  • Terabee

TeraRanger One-A is the most iconic optic distance sensor made by Terabee. A high-performance ToF distance measurement sensor for mobile robotics and automation applications. Its Time-of-Flight technology offers a 14-meter range in a lightweight (8 grams) and low-cost design. The sensor is much faster than ultrasound, more compact than laser-based... Read More

1 in stock

After some more information?

Product Enquiry
Teraranger One
TeraRanger One
TeraRanger One
TeraRanger One

Additional Information

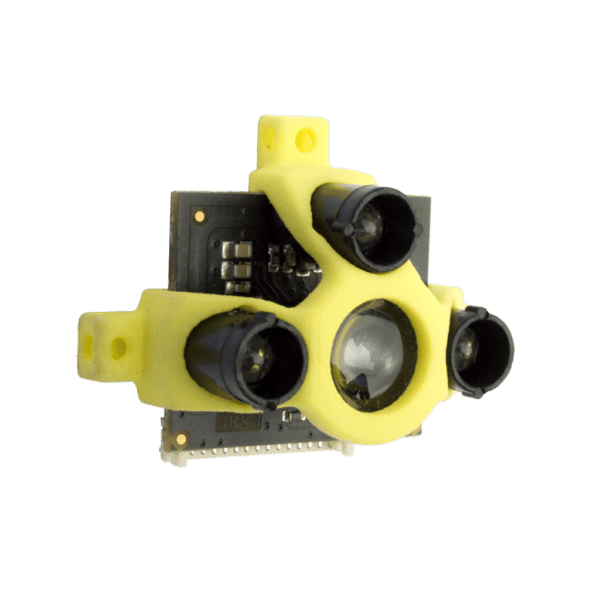

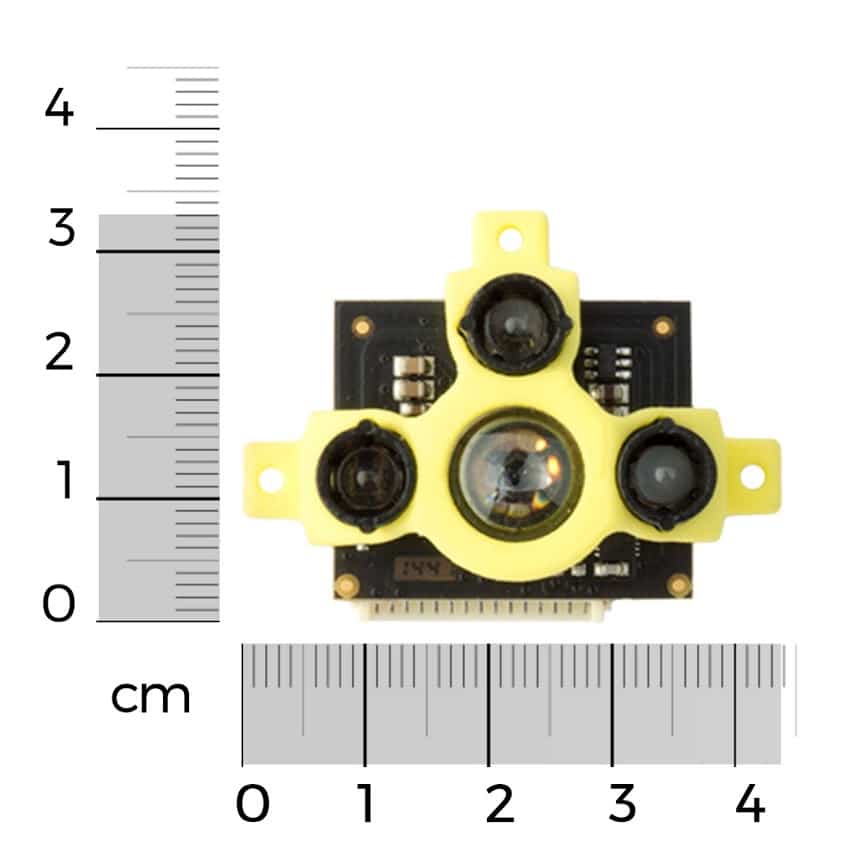

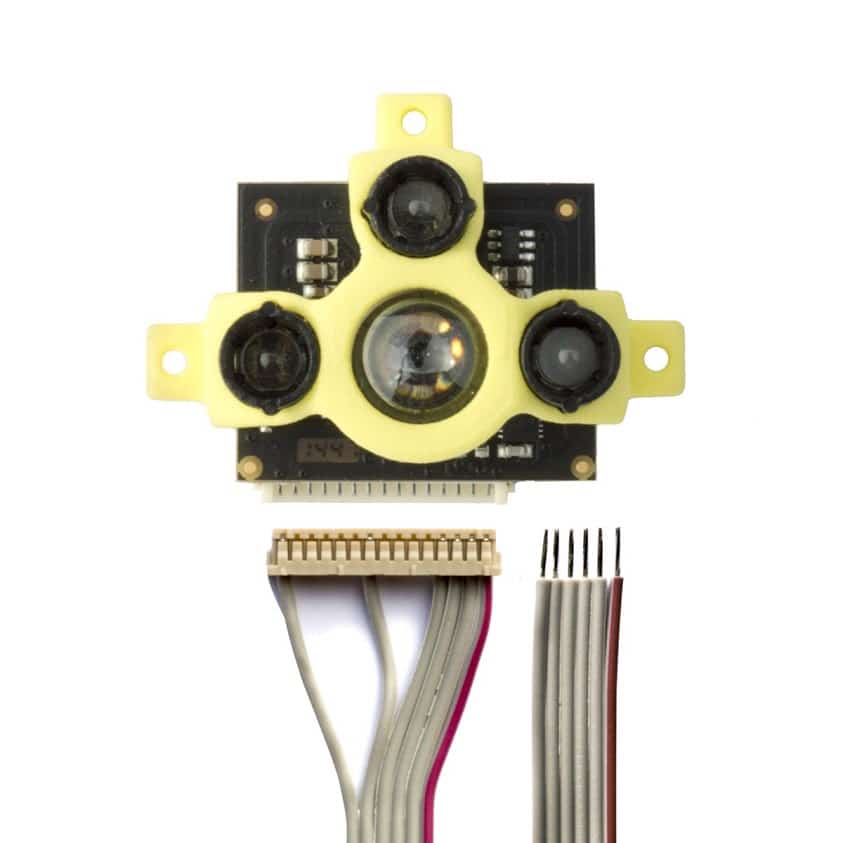

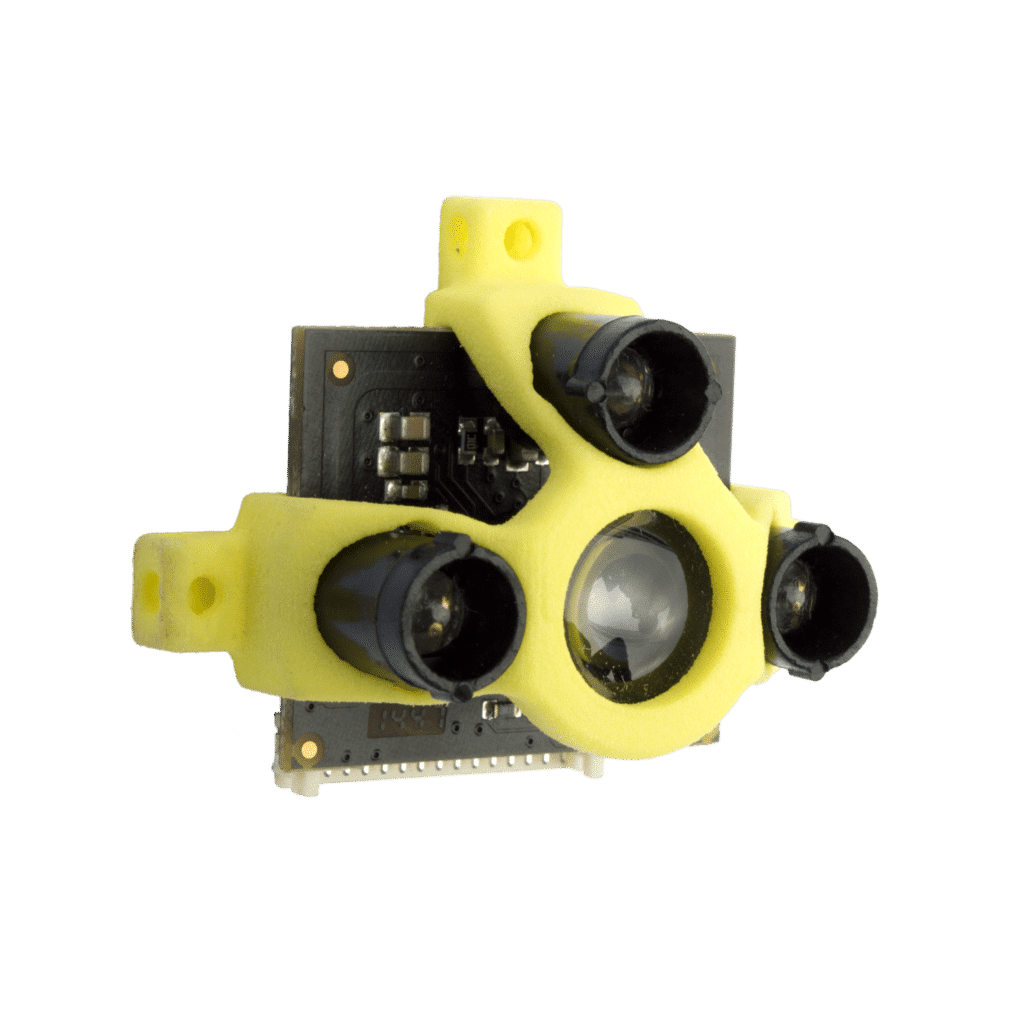

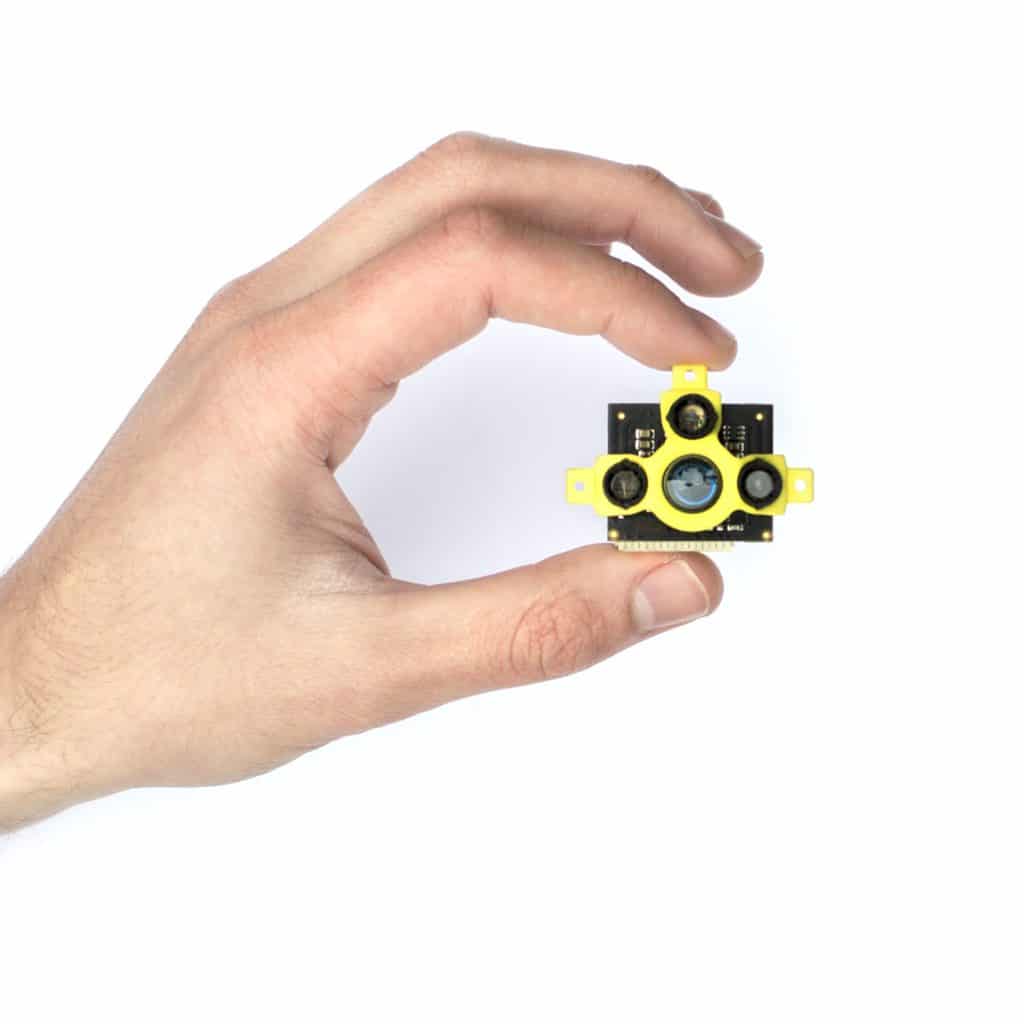

TeraRanger One-A is the most iconic optic distance sensor made by Terabee.  A high-performance ToF distance measurement sensor for mobile robotics and automation applications.

Its Time-of-Flight technology offers a 14-meter range in a lightweight (8 grams) and low-cost design. The sensor is much faster than ultrasound, more compact than laser-based systems & less power demanding than vision-based systems. This makes the TeraRanger One ideal for fast-moving robotics and automation applications.

Teraranger One – Key product features

  • Infrared Time-of-Flight technology
  • Up to 14-meter detection range
  • Update rate: up to 600Hz (precision mode)
  • Weight: 8 grams
  • UART / I2C / USB interface (via USB / I2C adapter set)
  • ROS and Pixhawk ready
  • Eye-safe in all conditions

Additional information

Weight 0.15 kg
Dimensions 10 × 10 × 2 cm
