Signal Hound SP-145 14.5GHz Spectrum Analyser

$17,250.00 – $19,990.00

  • Spectrum Analysers, TSCM
  • Signal Hound

Signal Hound SP-145 14.5GHz Spectrum Analyser Offering real-time analysis up to 14.5 GHz with ultra-fast sweep speeds in a portable form factor, the SP-145 14.5GHz Spectrum Analyser from Signal Hound is your ideal RF analysis companion in the field and at the lab. At-a-glance specs: 100 kHz to 14.5 GHz... Read More

After some more information?

Product Enquiry

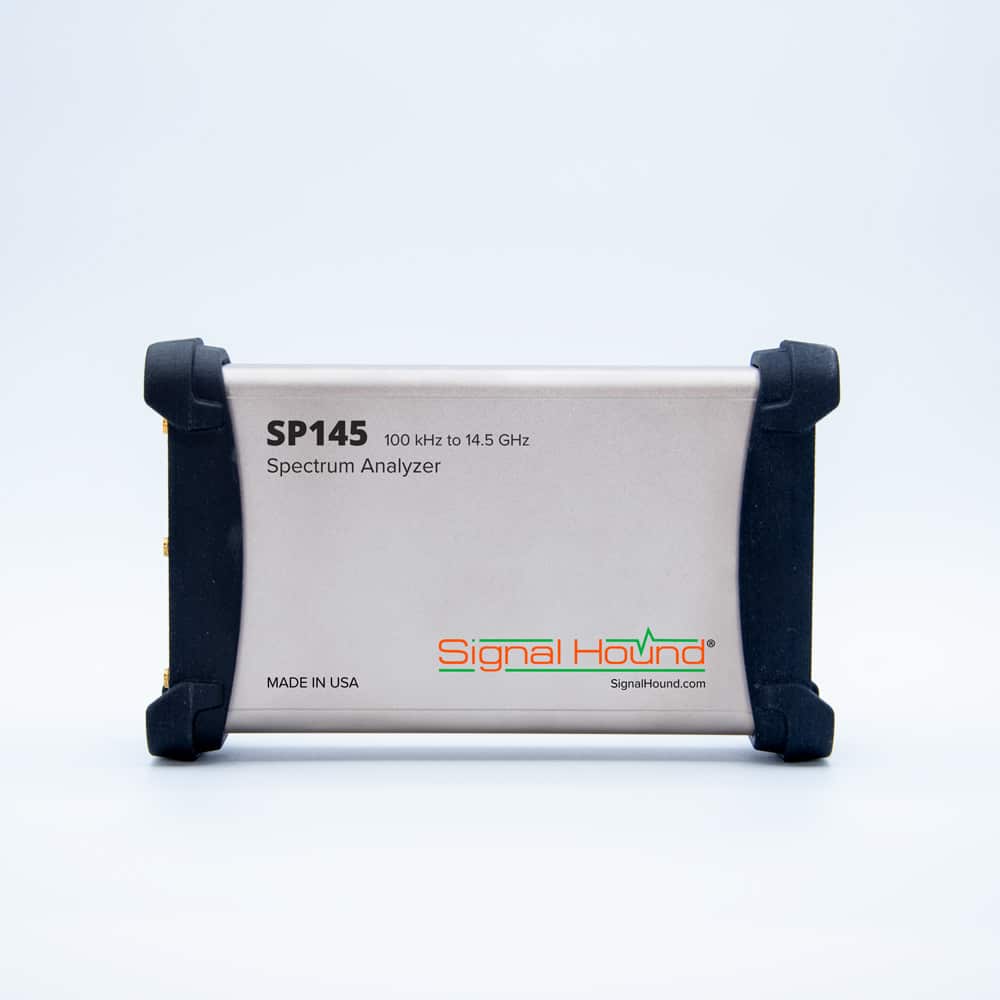

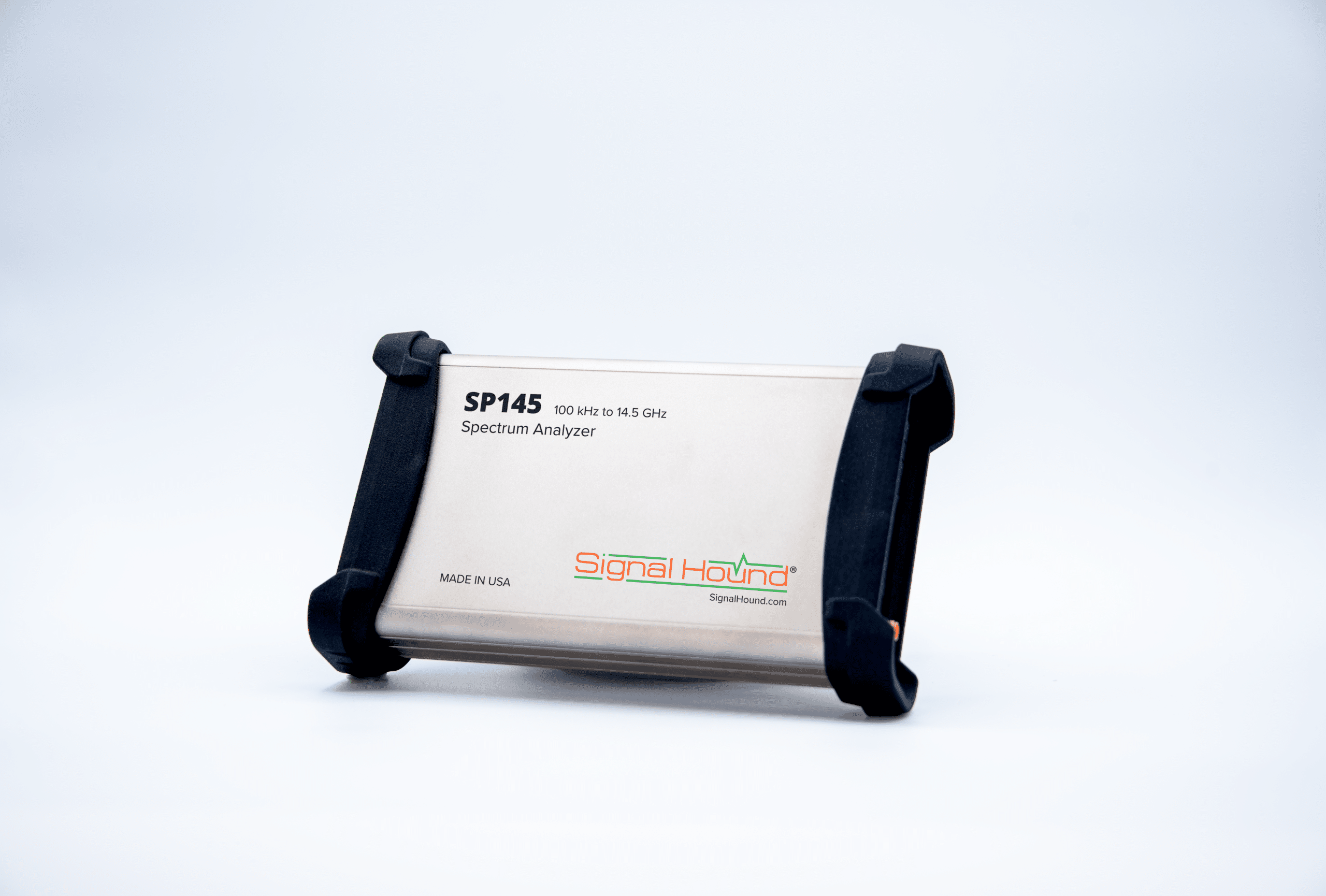

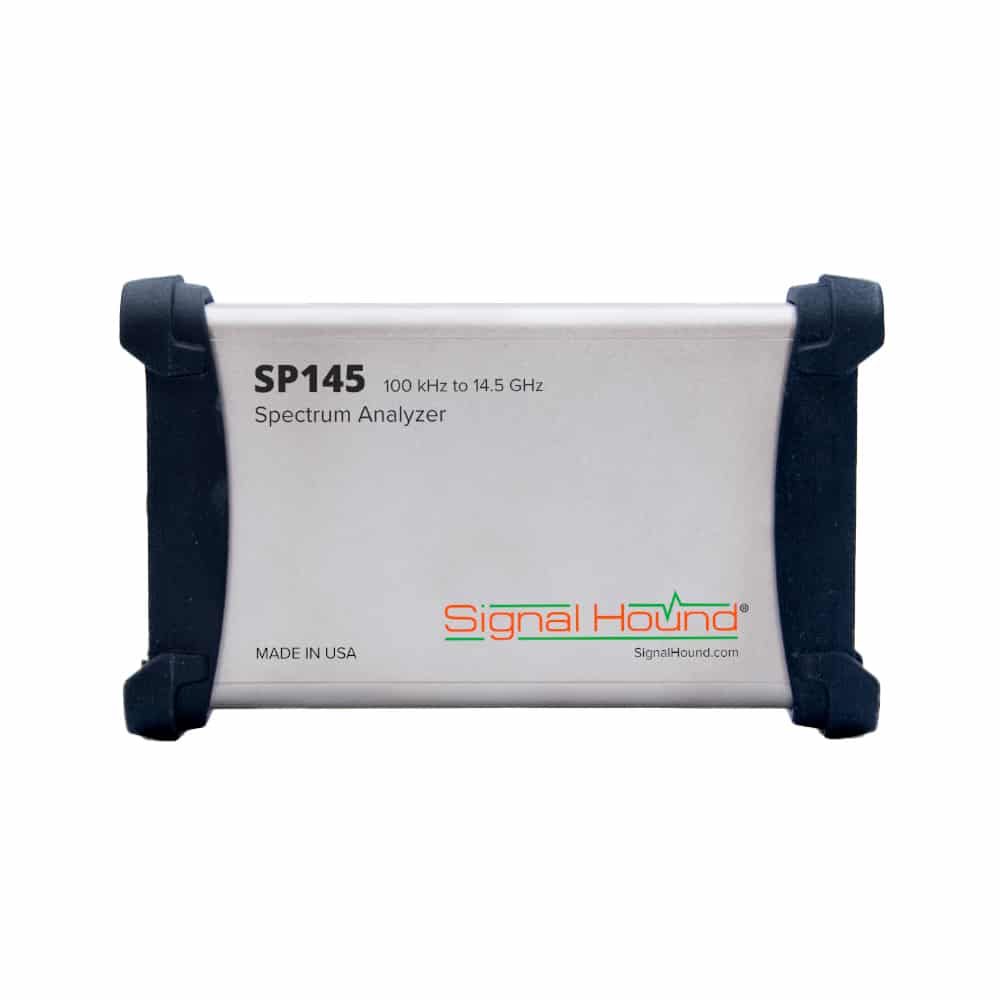

Signal Hound SP145 Spectrum Analyser
Signal Hound SP-145 Spectrum Analyser

Additional Information

At-a-glance specs:

  • 100 kHz to 14.5 GHz frequency range
  • Sweeps at 200 GHz/sec (at ≥70 kHz RBW)
  • Calibrated Streaming I/Q:
  • Up to 40 MHz of selectable I/Q streaming bandwidth
  • Connects to a PC for analysis (Spike spectrum analysis application included) via USB-C
  • Small form factor:
  • 7.45″ x 4.51″ x 1.81″ (189mm x 115mm x 46mm) 1.1 lbs.(0.5 kg)
  • Extended temperature range option available
  • Compatible with Windows or Linux, x64_86 architecture

Downloads:

Download the SP145 data sheet

Compare the SP145 with other analyzers

Additional information

Weight .5 kg
Dimensions 19 × 12 × 5 cm
Temperature

0 – 65C, -40 – 65C
Calibration Certificate

No cal certificate, Calibration Certificate from Factory
