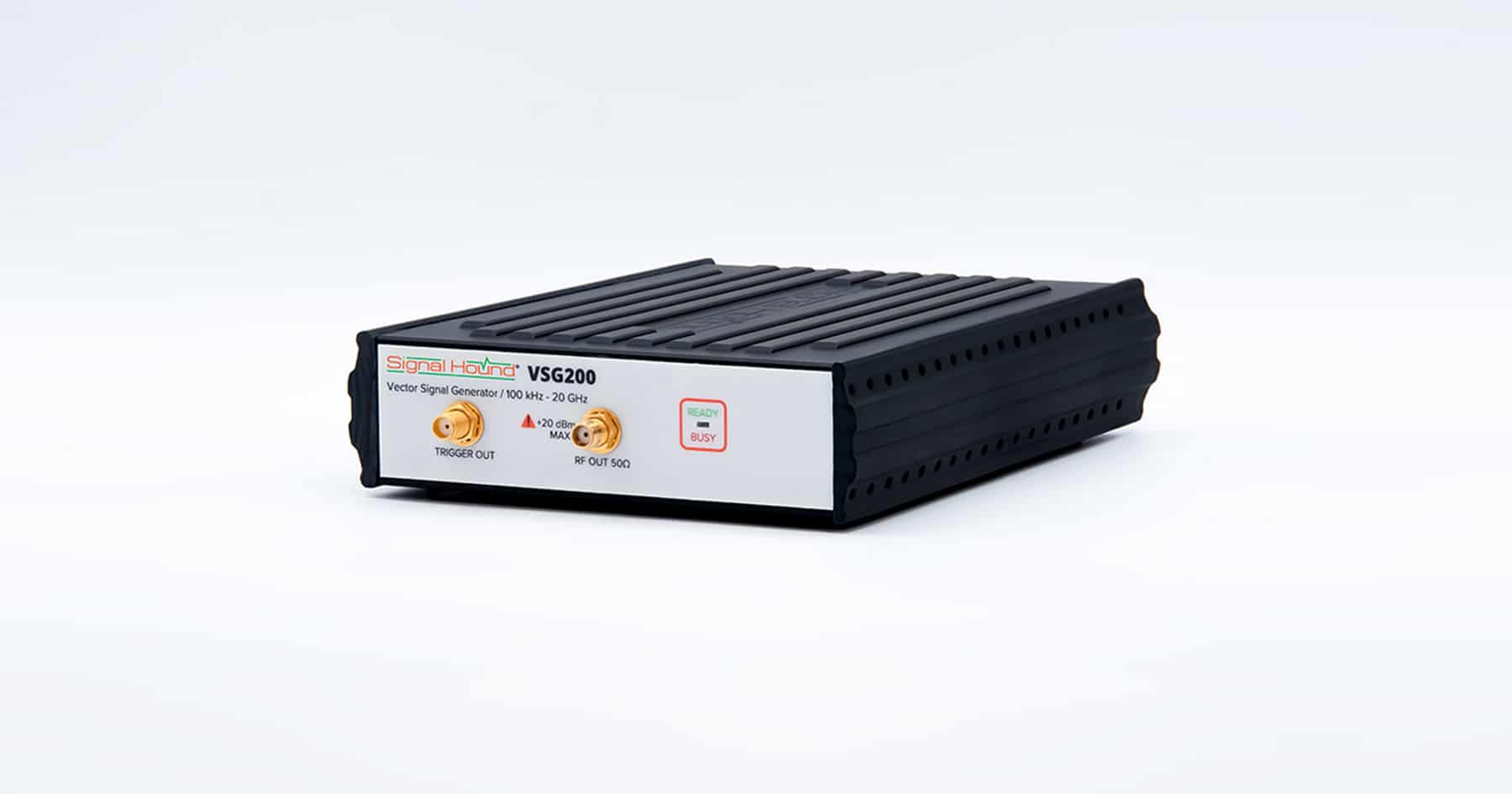

Signal Hound VSG200 20GHz Vector Signal Generator

Signal Hound VSG200 20GHz Vector Signal Generator

ADVANCED SIGNAL GENERATION ACROSS A WIDE FREQUENCY RANGE, DELIVERING 40 MHz OF REAL-TIME STREAMING BANDWIDTH IN A COMPACT FORM FACTOR.

The VSG200 offers the performance and agility of a fully-featured vector signal generator and includes a powerful software suite. A dual 14-bit DAC runs at 2x or 3x the I/Q symbol rate using digital oversampling to provide a flat, clean baseband. A digitally adjustable internal VCTCXO ensures frequency errors are kept to a minimum over temperature, or an external 10MHz input may be used for zero ppm frequency error. A trigger output is available to synchronize your VSG200 with other test equipment.

The VSG200 builds on Signal Hound’s current vector signal generator platform, offering industry standard connection, the addition of USB-C power, and frequency bandwidth all the way up to the K band. Equipped with the performance specifications Signal Hound is known for, and the quality you trust, this new vector signal generator combines performance with value. Simply put, you will not find another more capable VSG in this category anywhere.

APPLICATIONS

• General purpose RF test & measurement
• General purpose RF signal generation
• Arbitrary RF waveform generation
• Pulse/ FM chirp generation
• Amplifier EVM testing
• CCDF
• Channel characterization
• WiFi / Bluetooth testing
• Manufacturing test
• Receiver testing with signal impairments
• Antenna pattern measurement

FEATURES

• RF Frequency Range: 100kHz to 20GHz
• 40 MHz of real-time streaming bandwidth
• Amplitude Range: -55dBm to+ 7dBm,

+10 dBm below 3GHz

• Arbitrary I/Q sample rates from 12.5kSPS to 51.2MSPS
• Low phase noise LO
• External 10MHz input and trigger output

See the full specifications here:

VSG200 Preliminary Data Sheet (12/2025)

NOTE: Expected earliest delivery date is late January, 2026.
