GB30000 Wideband Microwave Amplifier, 20-30GHz

Wideband Microwave Amplifier, 20-30GHz, 20dBm

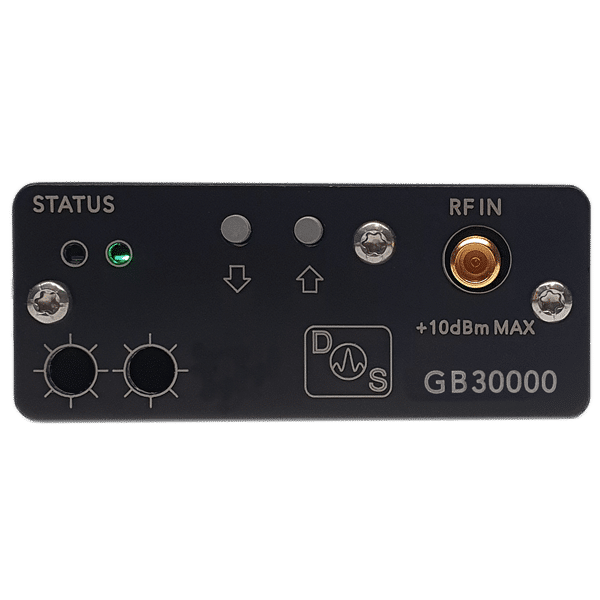

The DS Instruments Wideband Microwave Amplifier GB30000 provides a compact and affordable way to amplify signals from 20-30GHz for a variety of Ka and K-band applications. Simple USB-C power input and control makes this device much faster to integrate, and more flexible than traditional multi-voltage lab-supply powered devices. All negative voltage generation, gate control biasing, current limiting, temperature monitoring, and voltage detection are done internally automatically.

K-Band Variable-Gain Amplifier Specifications:

• Frequency Range: 20 – 30GHz
• Amplifier Max Gain Setting: +25dB typical
• Gain Control Step Size: 0.5dB
• Gain Control Range: 30dB
• p1dB: +21dBm
• Saturated Power:  +23dBm
• Max input power: +10dBm
• IP3: +33dBm
• Noise Figure: 5dB
• Return Loss: ~6dB typical
• USB Current Requirement: < 0.75A

30GHz Amplifier Feature List:

• Front gain control buttons
• Precision 2.92mm RF input and output ports
• Standard USB-C 5VDC power input
• Compact aluminum enclosure
• Status LEDs and audible alerts
• Temperature, voltage, current monitoring
• USB control

GB30000 Applications

• Automated testing environments
• Satellite signal amplification
• Production verification
• Educational / university lab use
• Aerospace / defense research
• Wireless infrastructure
• Antenna research
• Communication link design
