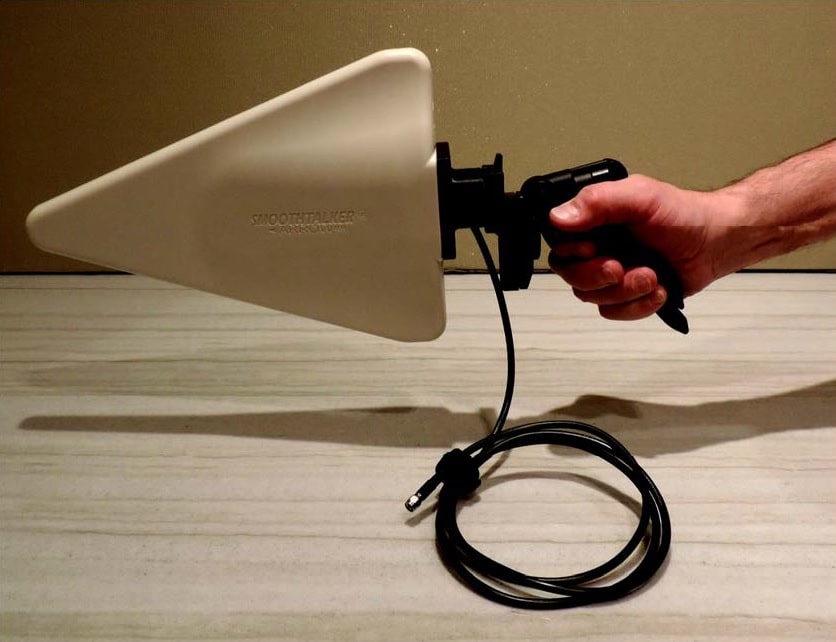

The KestrelPod Antenna (KestrelPod III Log‐Periodic)™ is an ideal low-cost solution under the powerful Kestrel® brand. The KPod-III covers all known and developing operational threat levels within the private or public sector security apparatus.
This Canadian manufactured product has an innovative proprietary custom engineered, combination pistol grip and table top tripod. It is a single-antenna solution for primary detection, collection, analysis and signal localization in a modern moving target threat model.
The KestrelPod III (Log Periodic)™ antenna kit is the result of significant Research and Deployment (R&D) efforts and significant testing and qualification standards by Kestrel’s Technical Research and Standards Group (TRSG)™.
Frequency Range (Far‐Field): 680 MHz to 6 GHz
Frequency Range (Near‐Field TSCM): 10 MHz to 12 GHz
Isotropic Gain: Nominal (11.14 dBi)
Type: Log‐Periodic (Directional)
Polarization: Vertical and Horizontal
Front / Back Ratio: Nominal (19 dB)
Impedance: 50 Ω
Connector: SMA (M)
Mechanical: 295 mm x 210 mm x 55 mm
Weight: 0.4 kg
Cable: Quad Shield Low Loss | SMA (M) Connector
Specifications are Subject to Change Without Notice…
| Weight | .4 kg |
|---|---|
| Dimensions | 30 × 25 × 10 cm |
