PS6000L Digital Phase Shifter 0.4-6GHz

$955.00

Available on back-order

Description

PS6000L Digital Phase Shifter 0.4-6GHz

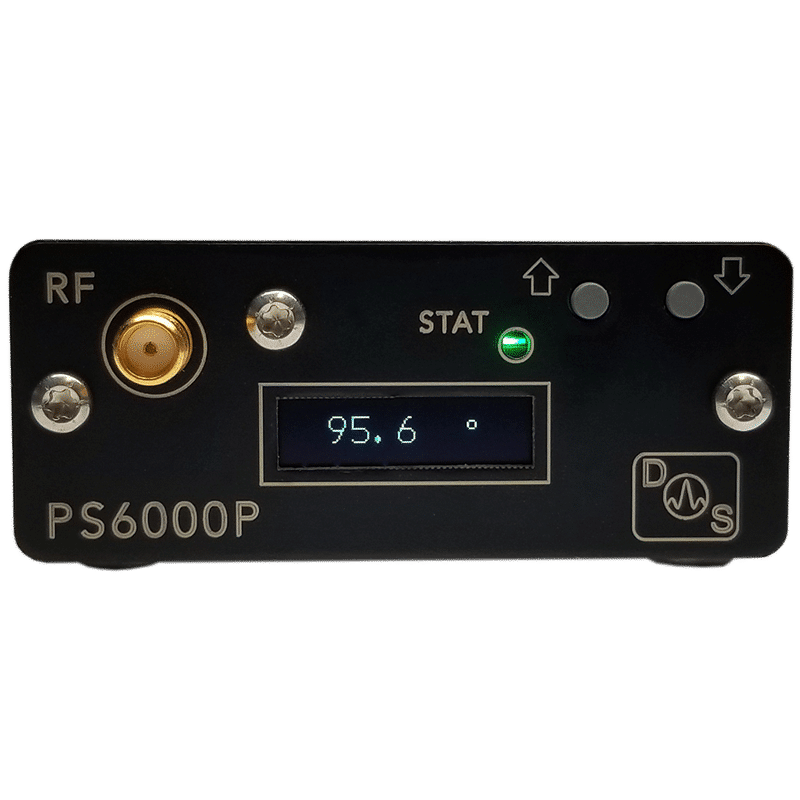

DS Instrument PS6000P RF Phase Shifter

DS Instruments PS6000L Digital Phase Shifter 0.4-6GHz

The PS6000L ultra-wideband active RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 360 degrees in tiny 1/2-degree increments. This ultra-compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS6000L’s robust frequency coverage makes it extremely attractive for many medium-power CW applications.

New (Rev 5) device with smaller step size and output attenuator!

Ethernet now available!

 PS6000L FineStep Specifications:

  • Frequency: super-wideband 400 – 6000 MHz range
  • Uni-directional design
  • NO insertion loss (internal limiter & amplifier)
  • Angle range: -180 to +180 degrees
  • Power input range: -20dBm to +10dBm
  • 1/2-degree phase resolution
  • Signal output power: adjustable -20 to +10dBm (0.25dB steps)
  • Not designed for use with modulated input signals.

PS6000L Features:

  • Ultra compact powder-coated aluminum case
  • Audio feedback
  • Simple automated remote control interface
  • Micro-USB powered
  • Free PC control application
  • Micro-USB powered and controlled
  • Front control buttons and OLED display
  • Premium gold SMA ports
  • High reliability and output power

Typical RF Applications:

  • Antenna systems
  • Beam forming research
  • MIMO development
  • Advanced LTE and WIFI
  • Phased-array technology
  • RF signal cancellation
  • Electronic warfare and defense
  • Carrier signal shifting



Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
