PS6000P-E Digital Phase Shifter 3.5-6GHz w/Ethernet

Description

Digital Phase Shifter 3.5-6GHz w/Ethernet

DS Instruments Digital Phase Shifter 3.5-6GHz w/Ethernet

The PS6000P wideband RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments. This ultra-compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS6000P is extremely attractive for many wideband applications.

 Ethernet option available!

 PS6000P Specifications:

• Frequency Range: 3500 – 6000 MHz
• Angle Range: 0 – 355 degrees
• Power Input Range: < +25dBm
• Phase Resolution: 5.625 degrees
• Insertion Loss: 5-6dB
• Return Loss: > 12dB typical
• Bi-directional design
• No minimum input power level

PS6000P Features:

• Ultra compact powder-coated aluminum case
• Audio feedback
• Simple automated remote control interface
• Micro-USB powered
• Free PC control application
• Micro-USB powered and controlled

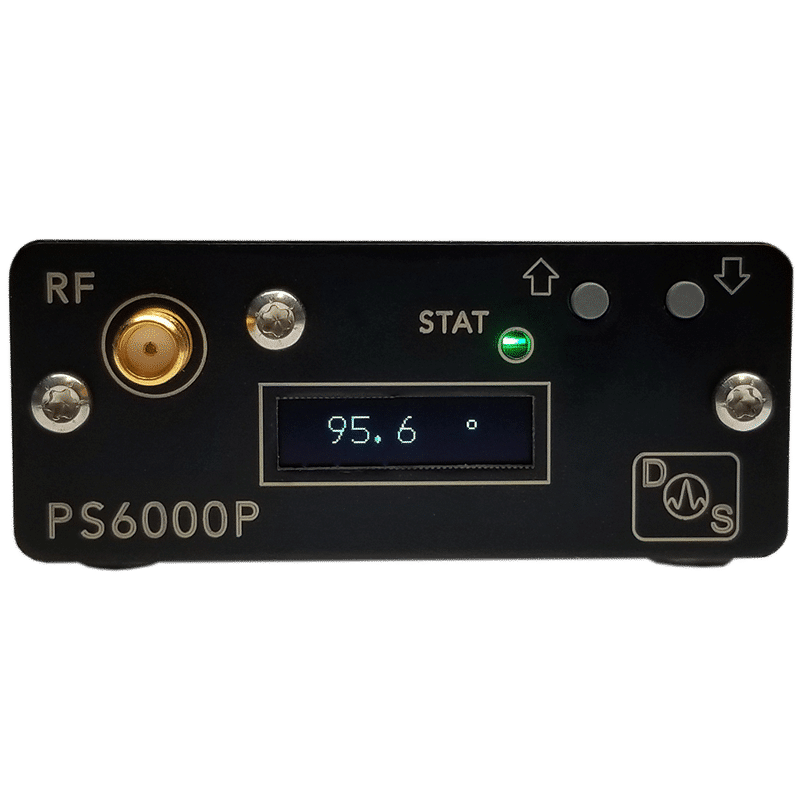

• Front control buttons and OLED display
• Premium gold SMA ports
• High reliability

Typical RF Applications:

• Antenna systems
• Beam forming research
• MIMO development
• Advanced LTE and WIFI
• Phased-array technology
• RF signal cancellation
• Electronic warfare and defense
