PS6000L-E Digital Phase Shifter 0.4-6GHz w/Ethernet

Digital Phase Shifter 0.4-6GHz w/Ethernet

DS Instruments Digital Phase

The PS6000L ultra-wideband active RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 360 degrees in tiny 1/2-degree increments. This ultra-compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS6000L’s robust frequency coverage makes it extremely attractive for many medium-power CW applications.

New (Rev 5) device with smaller step size and output attenuator!

Ethernet now available!

 PS6000L FineStep Specifications:

• Frequency: super-wideband 400 – 6000 MHz range
• Uni-directional design
• NO insertion loss (internal limiter & amplifier)
• Angle range: -180 to +180 degrees
• Power input range: -20dBm to +10dBm
• 1/2-degree phase resolution
• Signal output power: adjustable -20 to +10dBm (0.25dB steps)
• Not designed for use with modulated input signals.

PS6000L Features:

• Ultra compact powder-coated aluminum case
• Audio feedback
• Simple automated remote control interface
• Micro-USB powered
• Free PC control application
• Micro-USB powered and controlled

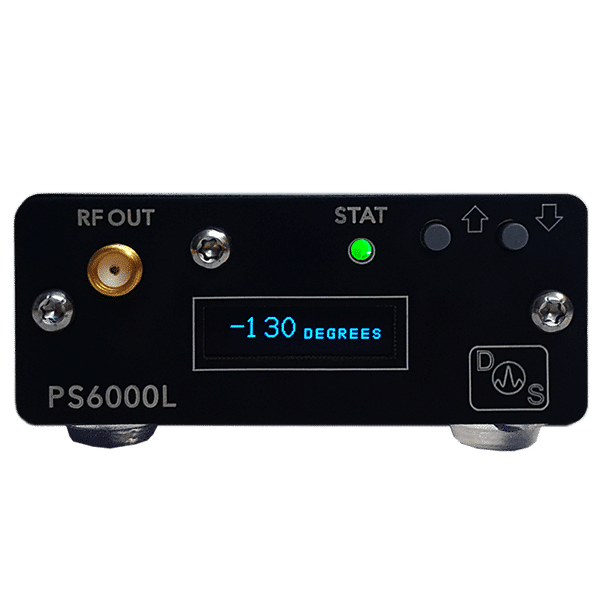

• Front control buttons and OLED display
• Premium gold SMA ports
• High reliability and output power

Typical RF Applications:

• Antenna systems
• Beam forming research
• MIMO development
• Advanced LTE and WIFI
• Phased-array technology
• RF signal cancellation
• Electronic warfare and defense
• Carrier signal shifting
