SKU: BMP-5075R+

Coaxial Matching Pad

$79.00

Accessories
Signal Hound

Coaxial Matching Pad Overview The Minicircuits BMP-5075R+ Coaxial Matching Pad is used as a matching pad between RF circuit elements. Features • excellent VSWR 1.15: typ. • excellent flatness • wideband coverage, DC to 2000 MHz Coaxial Matching Pad Applications • impedance matching Refer: Data Sheet.

Out of stock

After some more information?

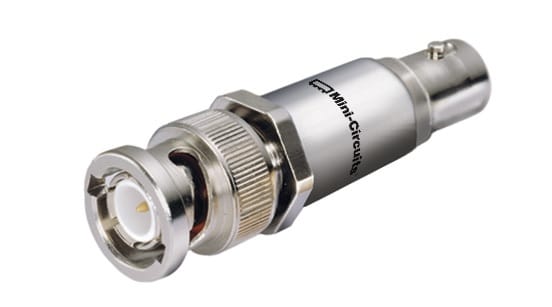

Coaxial Matching Pad BMP-5075R+

RF Limiter 6GHz Minicircuits-BMP-5075R

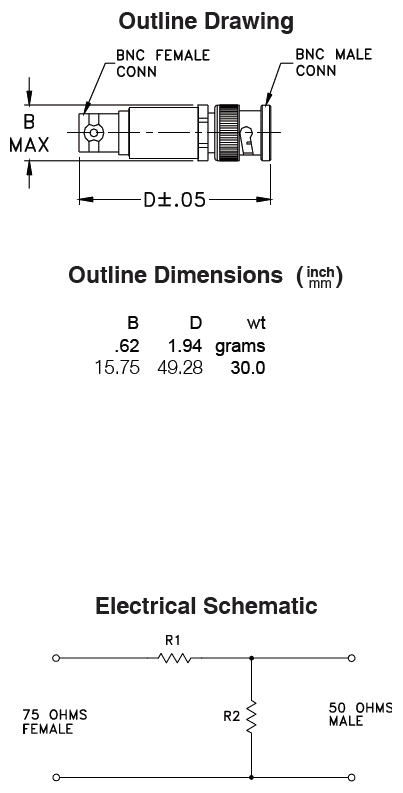

Minicircuits-BMP-5075R dims

Coaxial Matching Pad

Overview

The Minicircuits BMP-5075R+ Coaxial Matching Pad is used as a matching pad between RF circuit elements.

Minicircuits-BMP-5075R dims

Features

• excellent VSWR 1.15: typ.
• excellent flatness
• wideband coverage, DC to 2000 MHz

Coaxial Matching Pad Applications

• impedance matching

Coaxial Matching Pad 2GHz Minicircuits-BMP-5075R

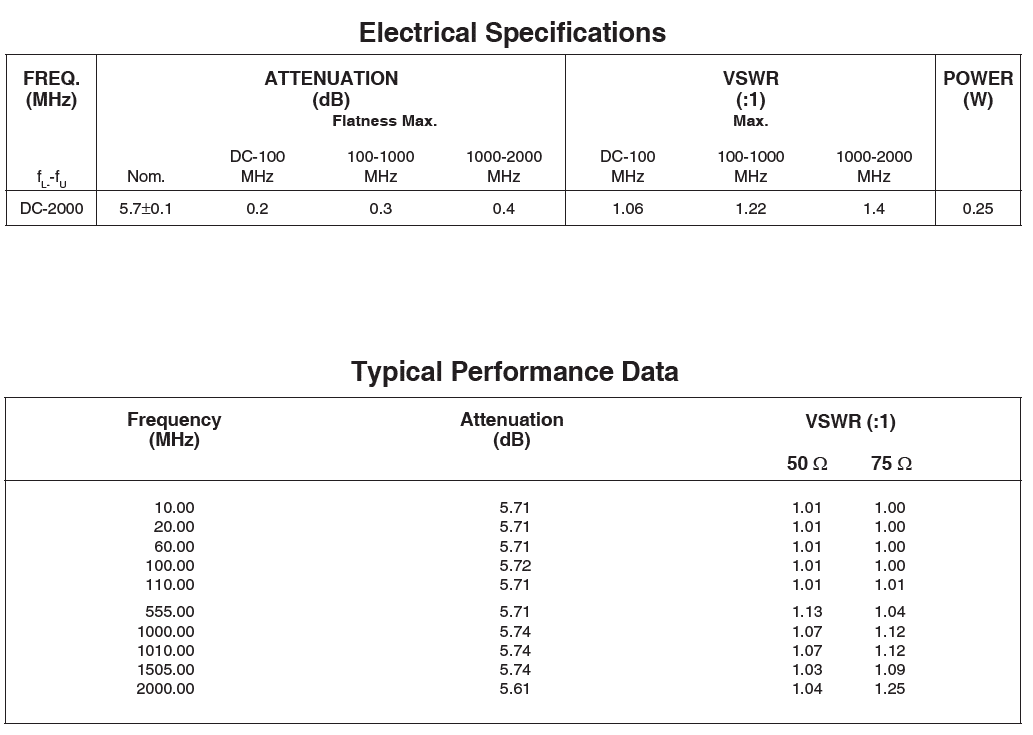

Refer: Data Sheet.

Additional information

Weight	0.175 kg
Dimensions	9 × 7 × 2 cm
