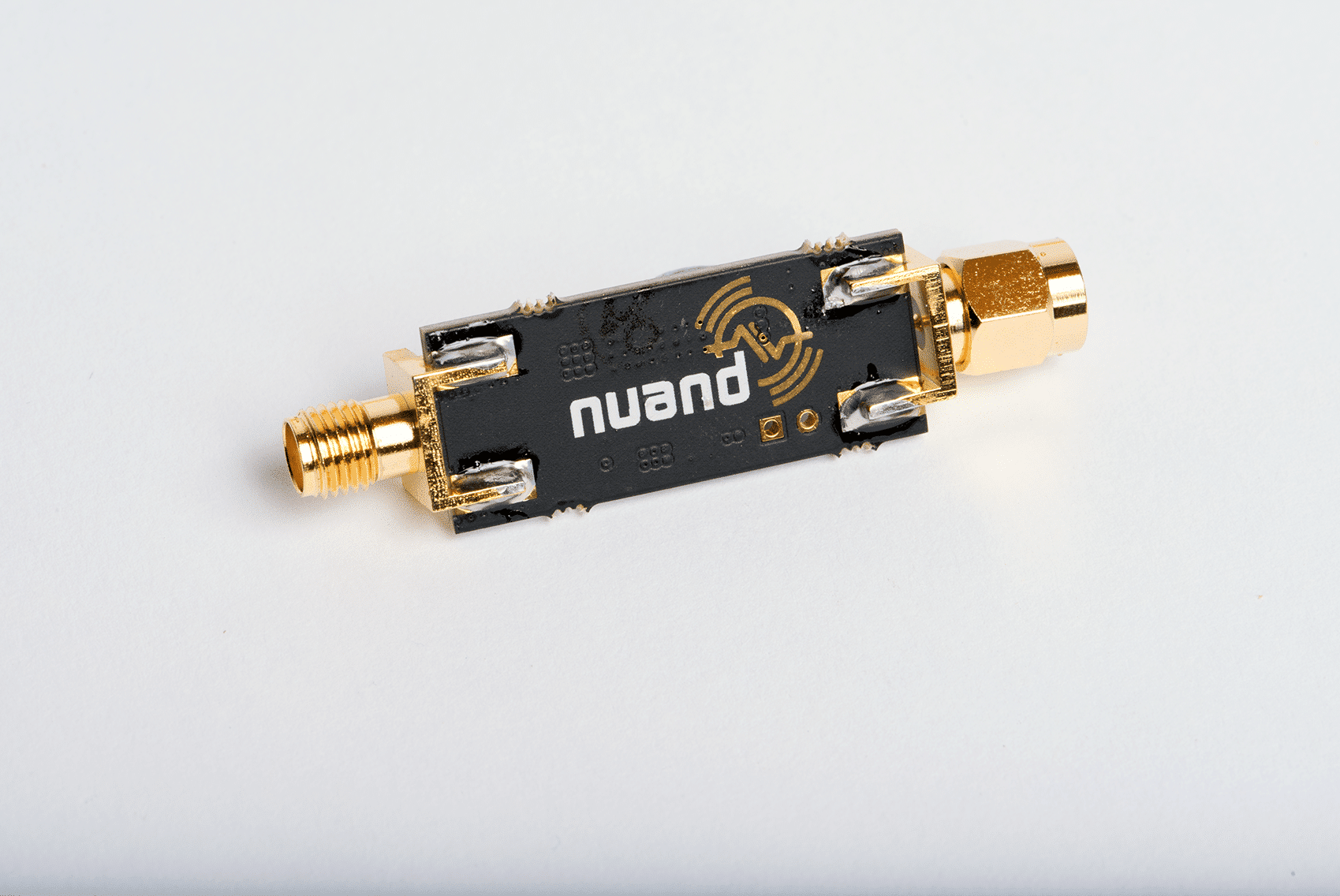

BladeRF BT100 PA: Bias-tee Power Amplifier The BladeRF BT100 PA: Bias-tee powered Power Amplifier (TX) for the bladeRF 2.0 micro. Key features: Features Mini-Circuits PHA-1H+ MMIC Amplifier – 50MHz to 6GHz MMIC Power consumption: 200mW Blue LED power indicator Typ Gain: +15.6dB @ 200MHz, +10.7dB @ 2.4GHz Low TX Noise... Read More
The BladeRF BT100 PA: Bias-tee powered Power Amplifier (TX) for the bladeRF 2.0 micro.
set biastee tx on
set biastee tx off
print hardware

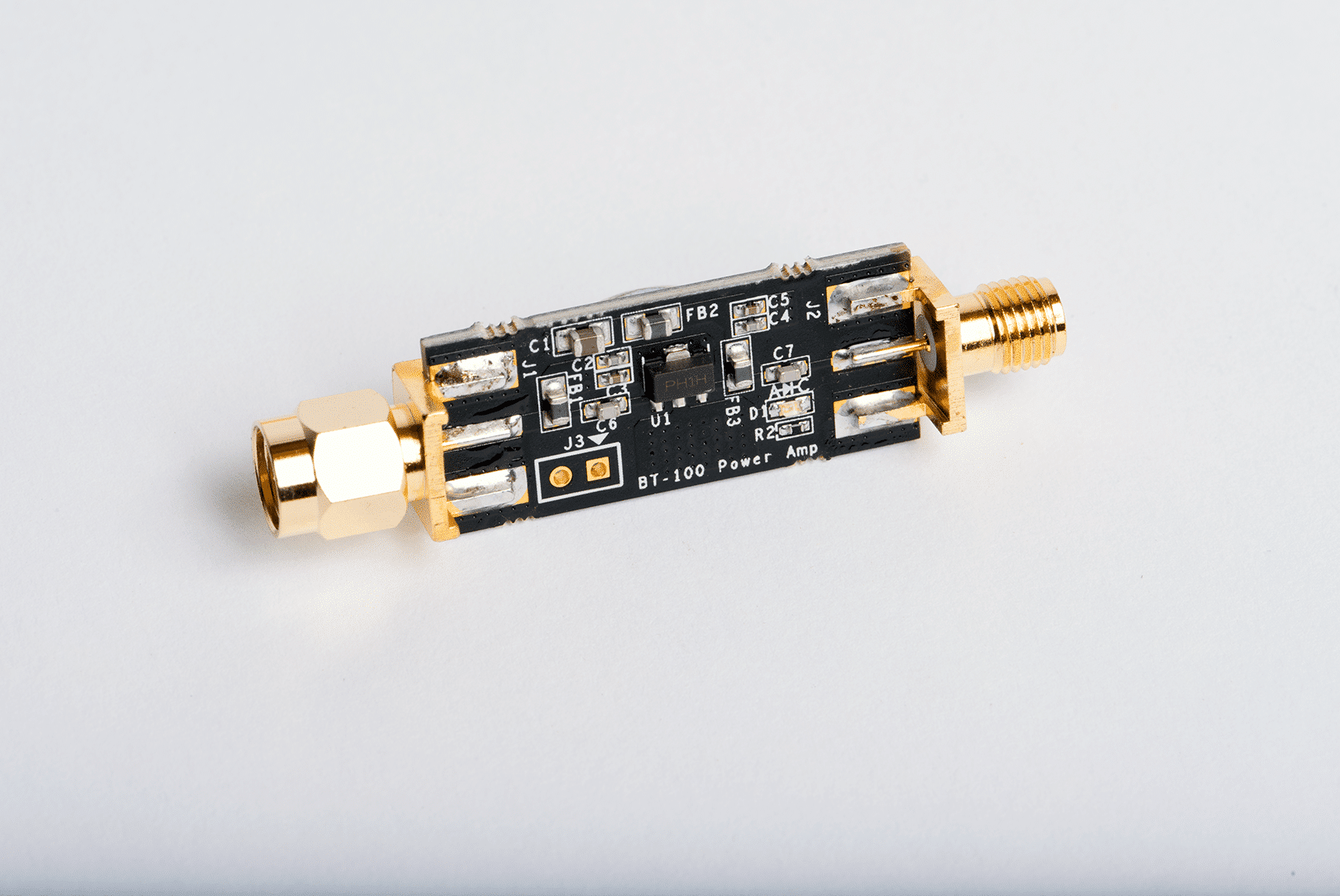

The BT-100 is a wideband bias tee TX Power Amplifier (PA) that draws its current from the bladeRF 2.0 micro’s SMA connectors. The BT-100 is versatile PA that is an ideal intermediary or final stage amplifier in a TX chain. bladeRF-cli and the libbladeRF API can be used to enable and disable the bias-tee when it is needed. Care should be taken to avoid overdrawing current when powering the bladeRF 2.0 micro from USB bus power and enabling multiple bias-tee amplifiers simultaneously. In case the power budget (print hardware
in bladeRF-cli) is a concern, the bladeRF 2.0 micro can be powered by an external DC power supply.
NOTE: The BT-100 can only be plugged into the TX ports.
How can I tell if the PA is enabled?

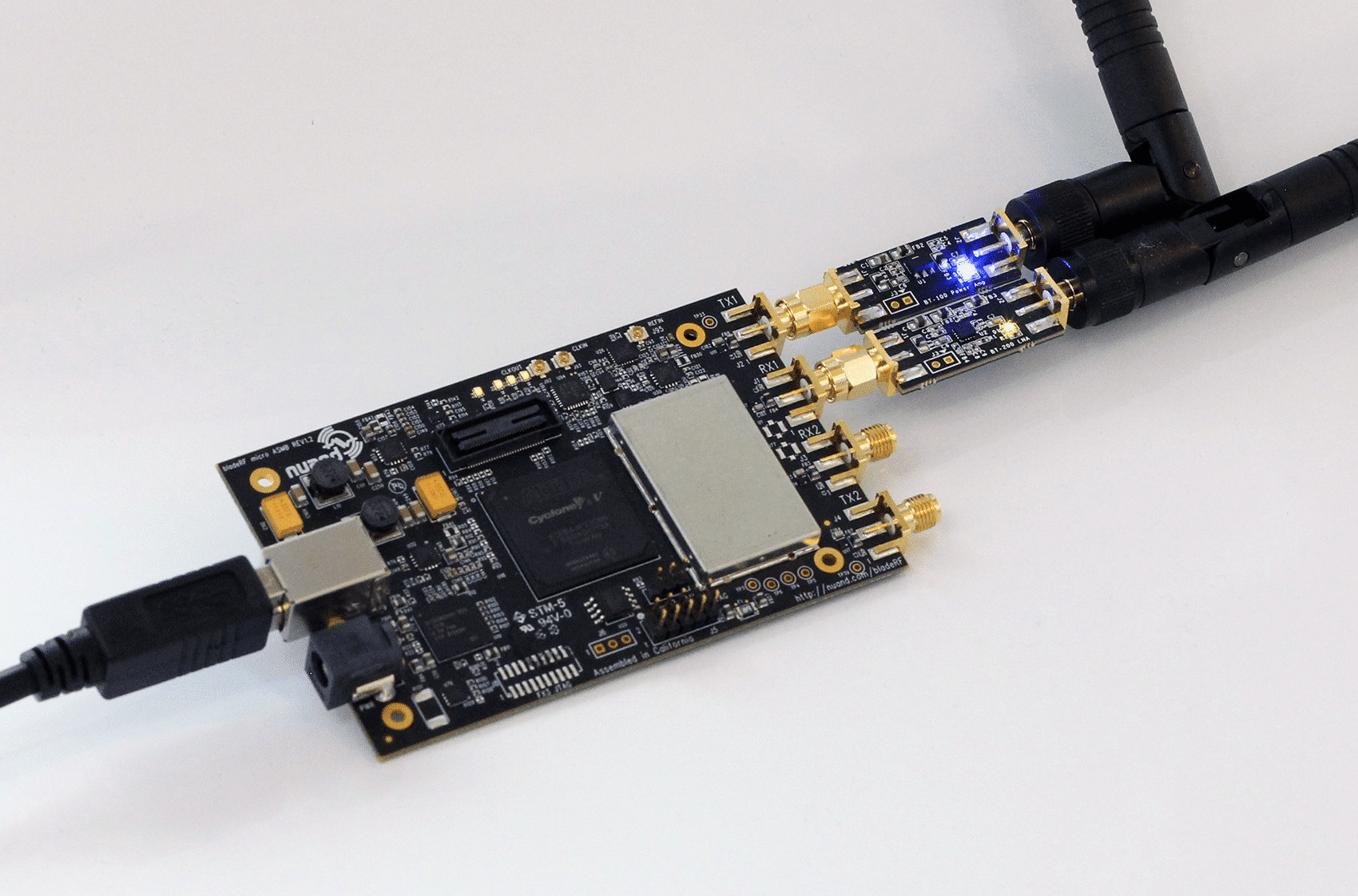

A green light will appear on the BT-100 if the program or tool you are using enables the bias-tee. In addition to the command line commands listed above, add “biastee=tx” to gr-osmosdr sink blocks to enable BT-100 from within GNU Radio.
How many BT modules can be added to the bladeRF 2.0 micro?

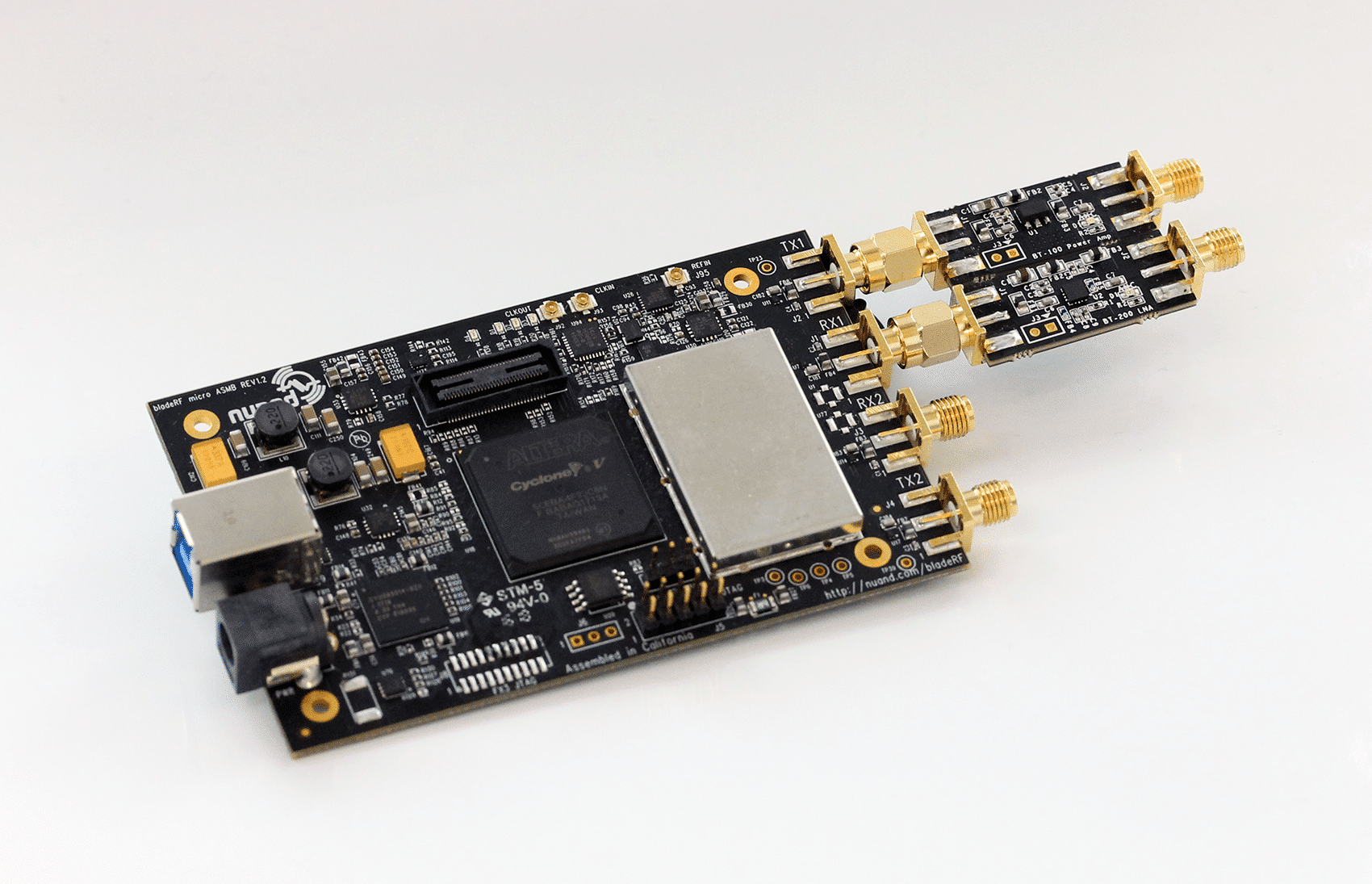

All 4 ports of the bladeRF 2.0 micro are powered, so any and all RF ports can have a bias-tee module installed and powered.
Weight | .1 kg |
---|---|
Dimensions | 4 × 3 × 2 cm |
