900MHz 6dBi Yagi Antenna

Description

900MHz 6dBi Yagi Antenna

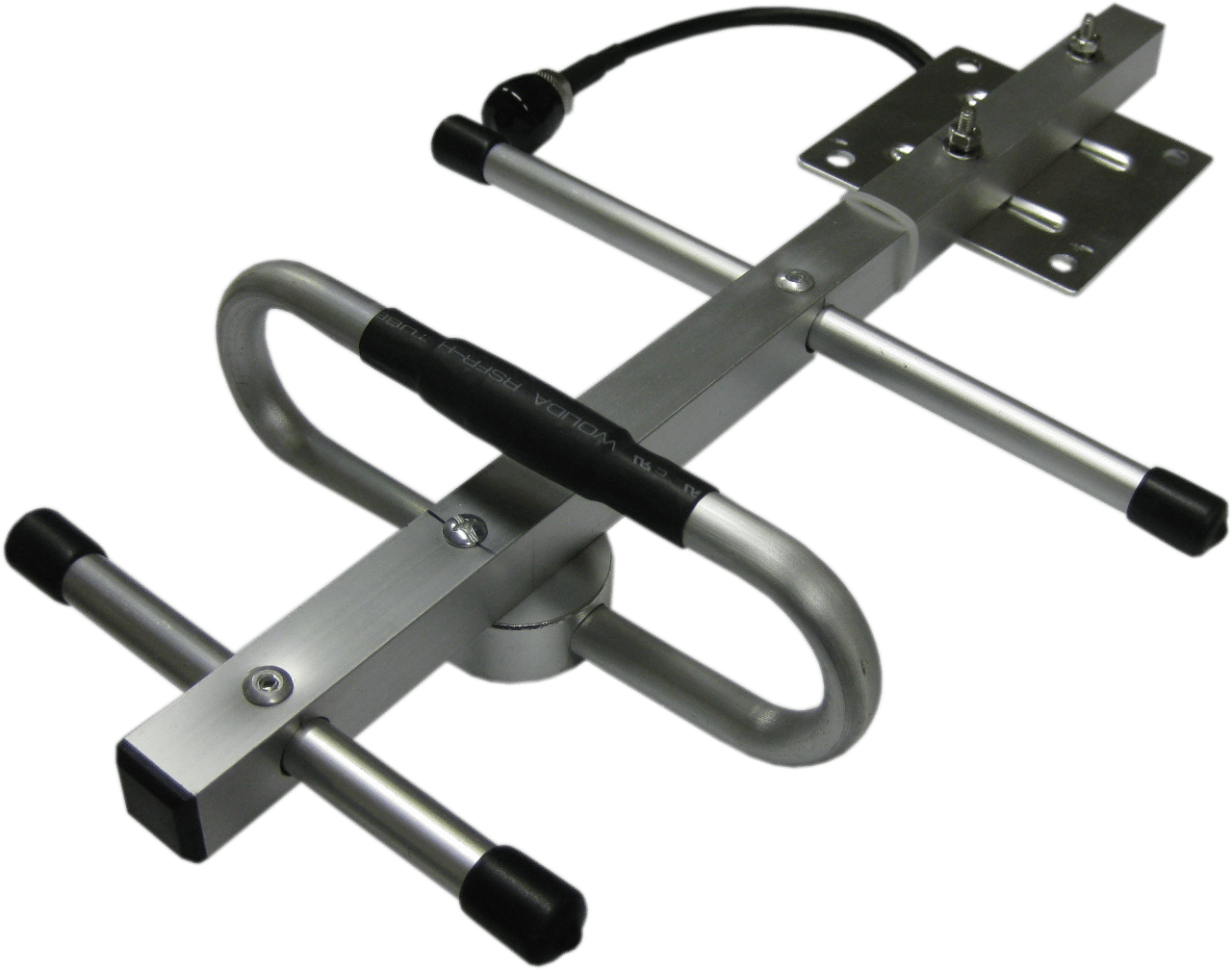

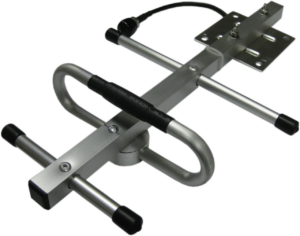

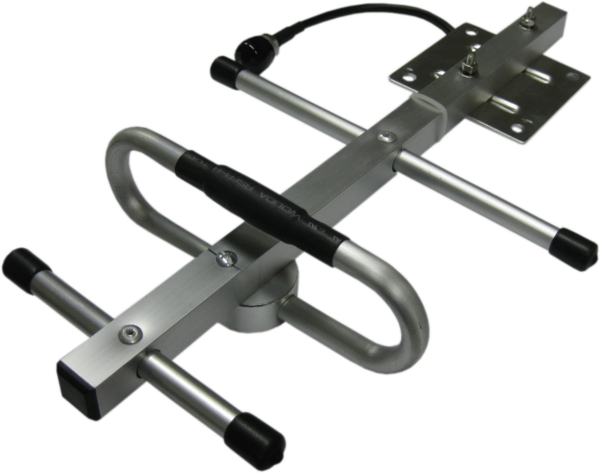

This 3 element, 900MHz 6dBi Yagi Antenna, for operating in the 900MHz band, is a great antenna for ground control stations or base-stations. Quality made yet light-weight, it is fitted with a plate for pole mounting.

Specifications:

• Antenna Type : Yagi
• Elements : 3
• Frequency range : 902-928MHz
• Gain : 6dBi
• Horizontal beamwidth : 60 deg
• Vertical beamwidth : 50 deg
• Front/Back ratio : >13dB
• VSWR : < 1.5
• Impedance : 50 R
• Maximum Power : 100W
• Connector : N-type, female.
• Cable length : ~250mm
• Mounting mast diameter : 35 – 50mm  ( Mounting hardware included )
• Length: 325mm
• Width : 200mm
• Height : 55mm
• Weight: 275 g

To use this antenna with an RFD900 modem with RPSMA connectors, you will also need an N-RPSMA adaptor, and RPSMA(M)-(M) cable.
