SKU: ANT-900-1/4W-RPSMA

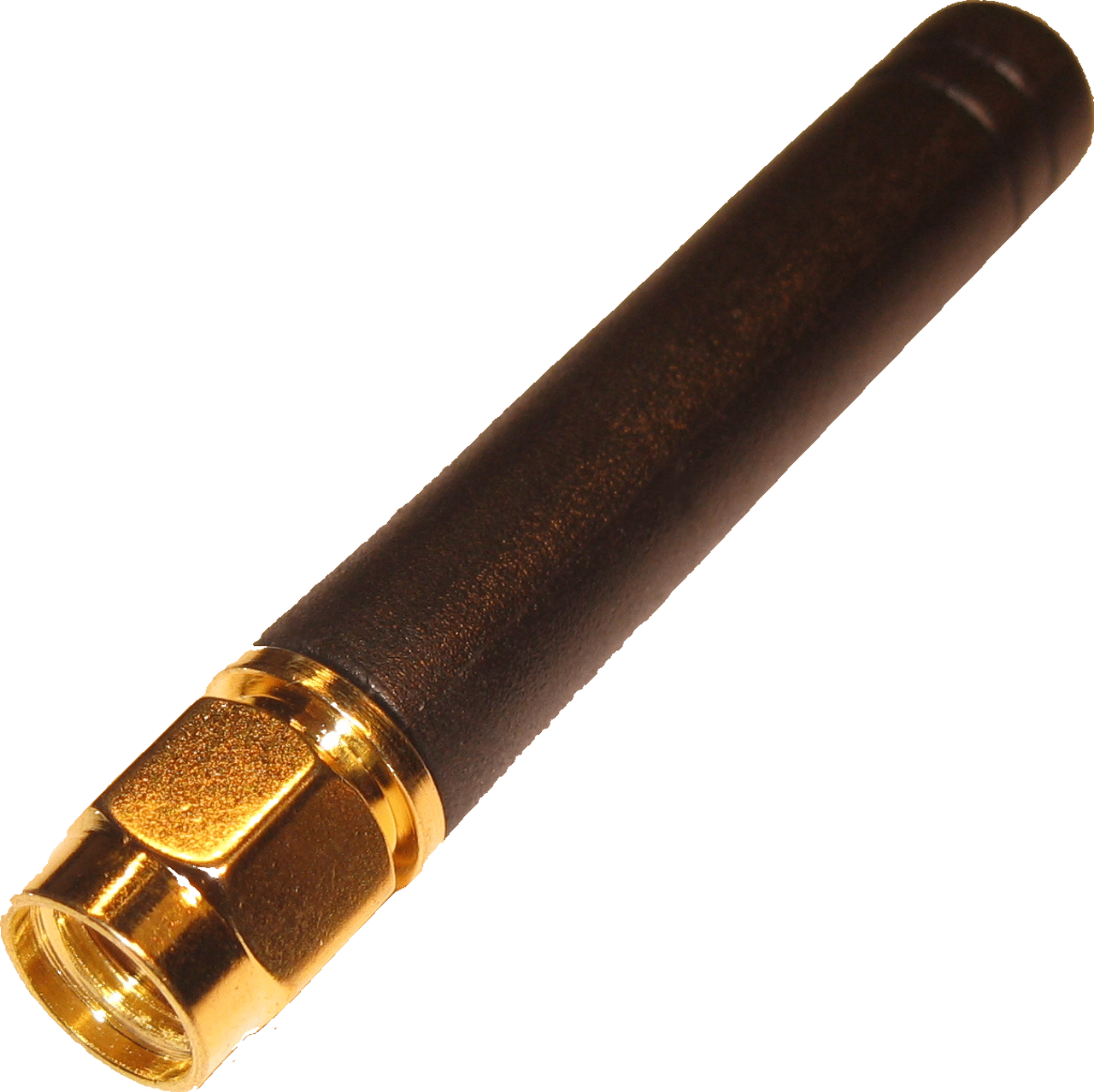

Antenna 900MHz 2dBi Monopole (RPSMA)

$9.52

Accessories, Antenna
RF Design

900MHz quarter wave monopole antenna with RPSMA connector. This antenna is well suited for airborne UAV/FPV applications due to its light weight and small size. It must be mounted on a ground plane to achieve the best performance. Frequency range: 902-928MHz Gain: 2.1dBi VSWR: < 1.5 Impedance: 50R Polarisation: Vertical... Read More

After some more information?

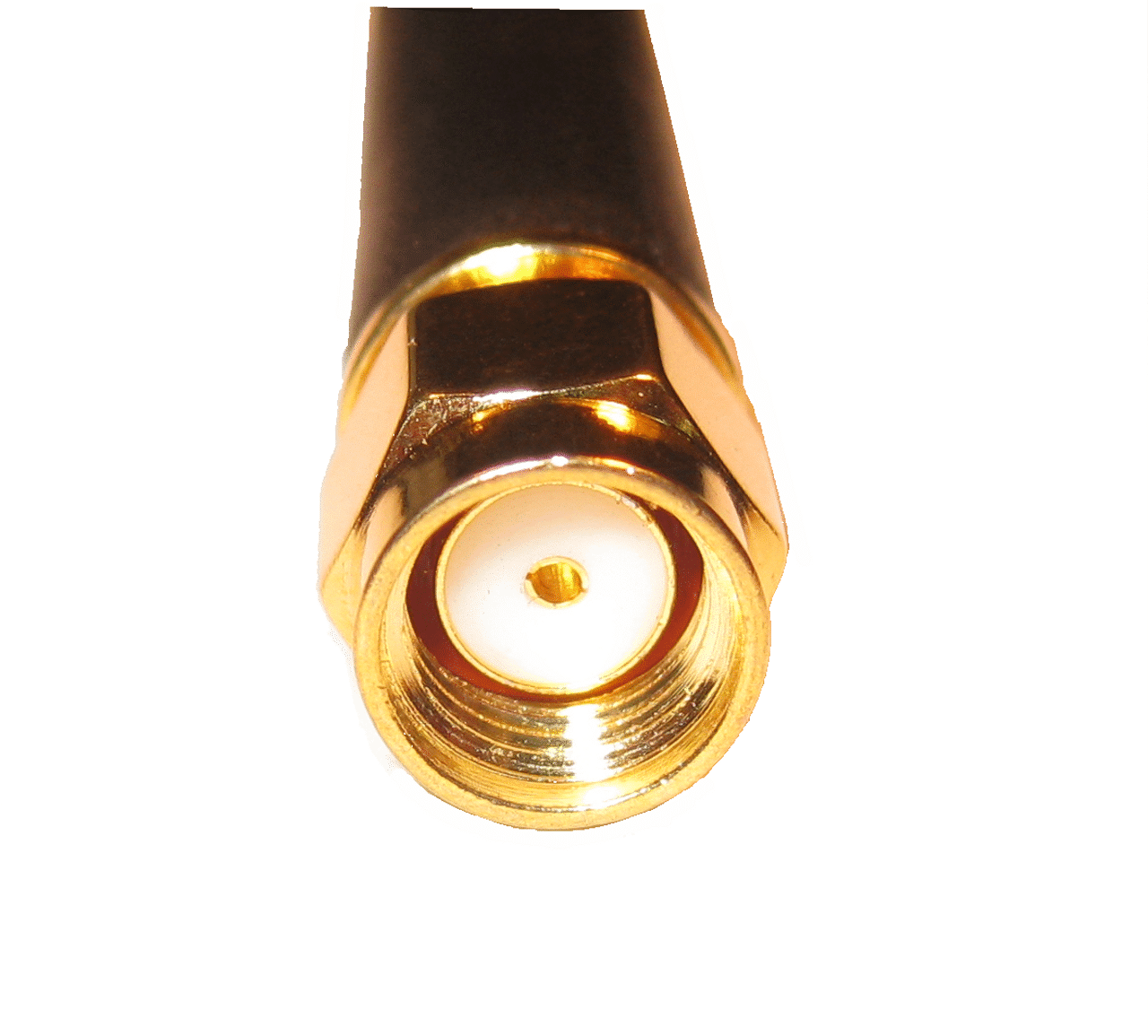

Antenna 900MHz 2dBi Monopole (RPSMA) - Image 2

900MHz quarter wave monopole antenna with RPSMA connector.

This antenna is well suited for airborne UAV/FPV applications due to its light weight and small size. It must be mounted on a ground plane to achieve the best performance.

Frequency range: 902-928MHz

Gain: 2.1dBi

VSWR: < 1.5

Impedance: 50R

Polarisation: Vertical

Weight: 10g

Size: 51mm long, 8mm diameter

Additional information

Weight	0.1 kg
Dimensions	6 × 1 × 1 cm
