Aerobits Eval TIM SC1

Description

Aerobits Eval TIM SC1

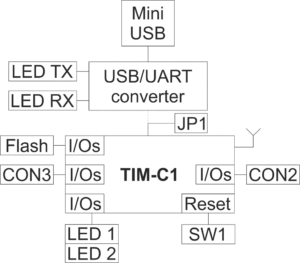

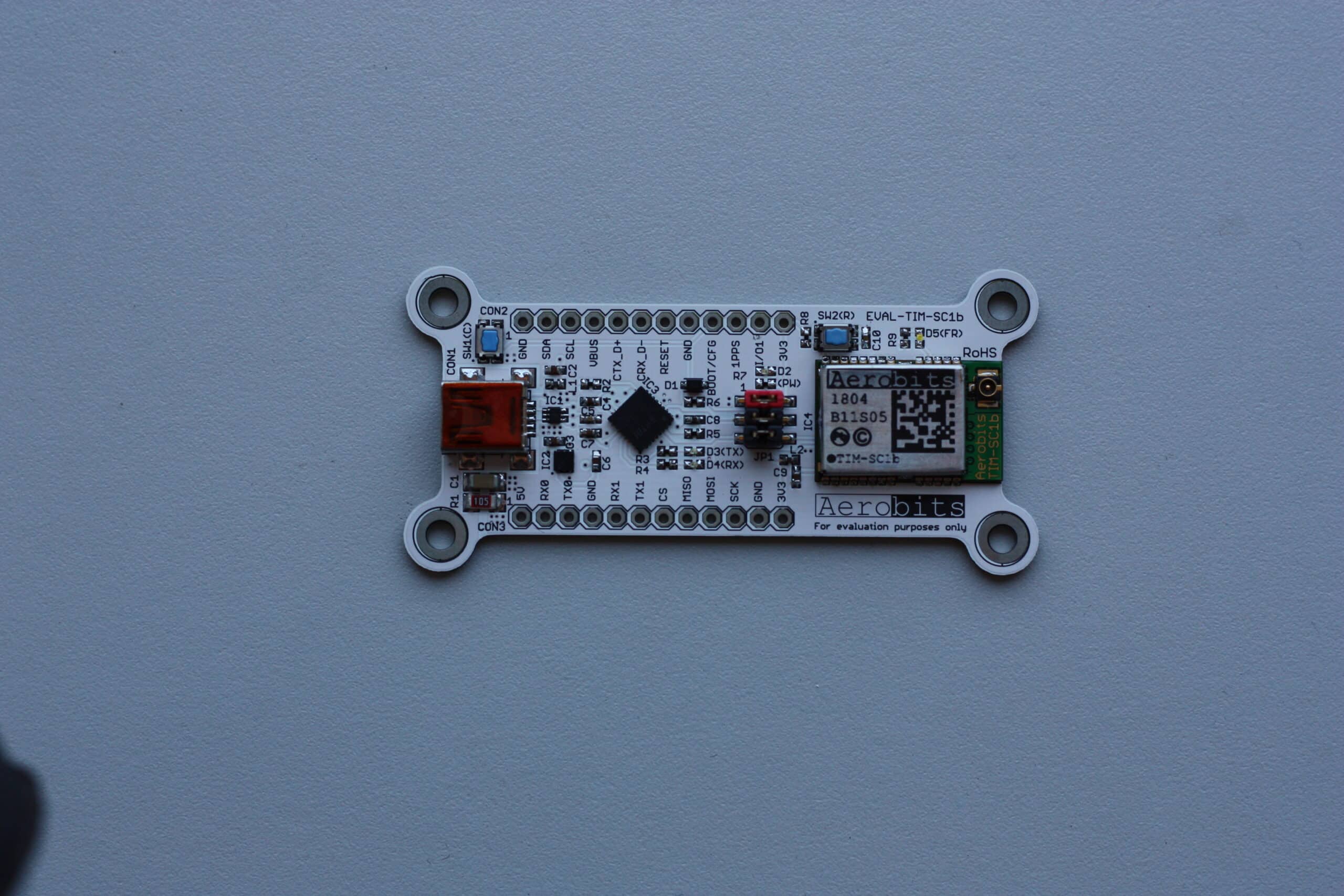

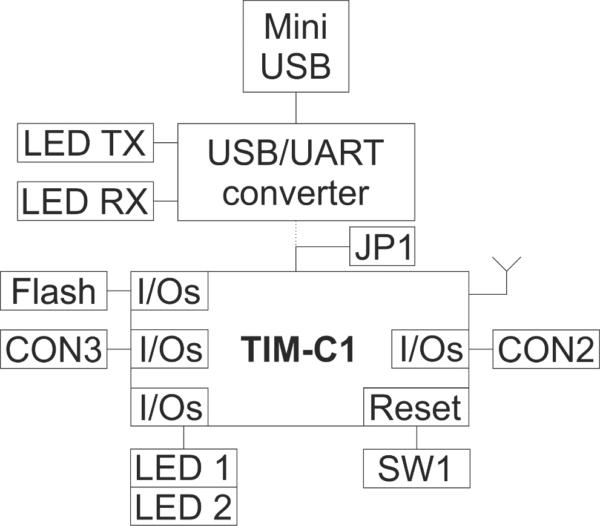

The Aerobits Eval TIM SC1 is an evaluation board for development of the low-cost OEM receiver series dedicated especially for drones (DAA Detect and Avoid technology). It offers high-speed ADS-B and Mode A/C/S implementation with RF power analysis. The modules based on proven FPGA-In-The-LoopTM technology and provide many interfaces for dedicated solutions.

FEATURES:

o FPGA-In-The-Loop technology for the fastest ADSB/In implementation on a surface of ~2cm2
o High-resolution ADC with real-time signal processing based on an adaptive algorithm; best-inclass aircraft tracking
o ADS-B and Mode-A/C/S with the ability to track up to 100 aircraft
o RF power measurement for each frame (useful for distance estimation in case of Mode-A/C/S)
o High sensitive front-end (jamming and ESD protection) with ranges over 200 km (1dBi antenna)
o Simple module integration – programming using UART and AT commands
o Many interfaces available: UART(standard), USB, SPI, CAN, I2C
o Scalable OEM solution with enormous customization potential
o Power supply 3.3 V, current consumption 40mA
o Designed to meet the requirements of TSO-C199
o Small outline (a): 16.0 x 13.0 x 2.5mm (1.2g weight)
o Small outline (b): 20.0 x 13.0 x 2.5mm (1.5g weight)

APPLICATIONS:

o SAA/DAA (Sense and Avoid / Detect and Avoid)
o Mobile and stationary traffic surveillance
o Anti-collision warning devices
o Traffic-flow analysis and statistics
o For UTM / U-Space construction, systems that meet the NextGen / SESAR philosophy
