TG12000 Tracking Generator 12GHz

DS Instruments Tracking Generator 12GHz

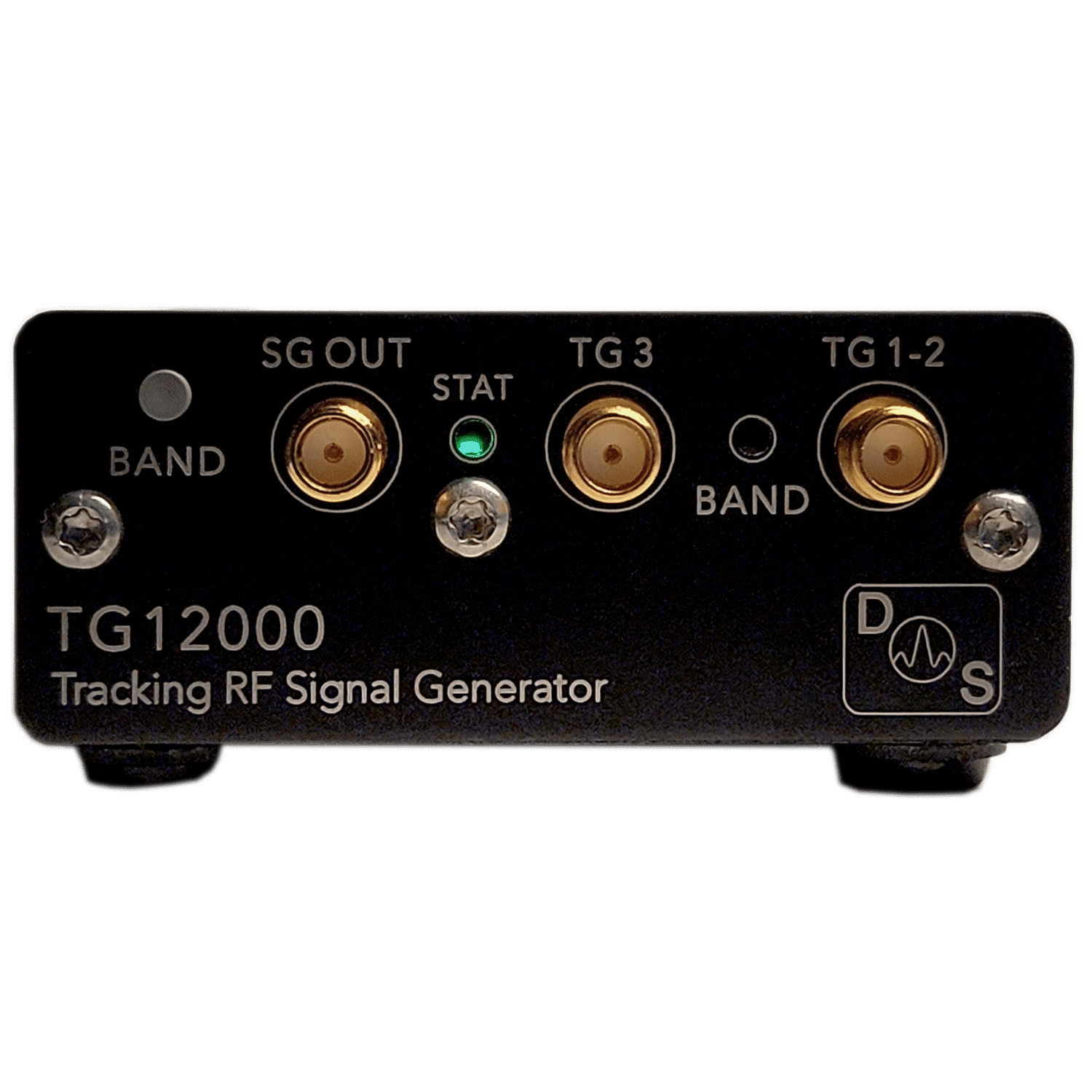

The new TG12000 REV9 (2021 version) is a generic RF Tracking Generator that can be used with many existing Spectrum Analyzers. It covers a range from DC to 12GHz in three bands via two front SMA outputs. It also functions as a standalone RF signal generator from 25 to 6000MHz.

The TG12000 can replace the Agilent HP 85640A external tracking generator and adds a Signal Generator function as well. In addition it covers the 2nd and 3rd band, which the 85640A does not, providing a TG signal to 12GHz. A very good troubleshooting and measuring tool to easily characterize filters and attenuators!

Note: The TG12000 is considered a specialty product and can take a few extra days to ship.

Tracking Signal Generator Specifications:

• Tracking signal bands: LF – 2.5GHz,  2.0 – 5.8GHz,  5.8 – 12 GHz
• Internal signal generator:  25-6000 MHz
• Typical TG output power band 1: -3dBm
• Typical TG output power band 2: -3dBm
• Typical TG output power band 3: -8dBm
• Compact dimensions: 2.75″ x 4.15″ x 1.15″

TG12000 Features:

• 18GHz microwave SMA connectors
• Rear MCX 10MHz reference frequency input
• Fully USB-powered
• Sturdy all-aluminium enclosure
• Industry standard SCPI command support
• Status and power LEDs / audio feedback
• USB virtual COM port control from included PC control application
