SW302K 30GHz Microwave Switch

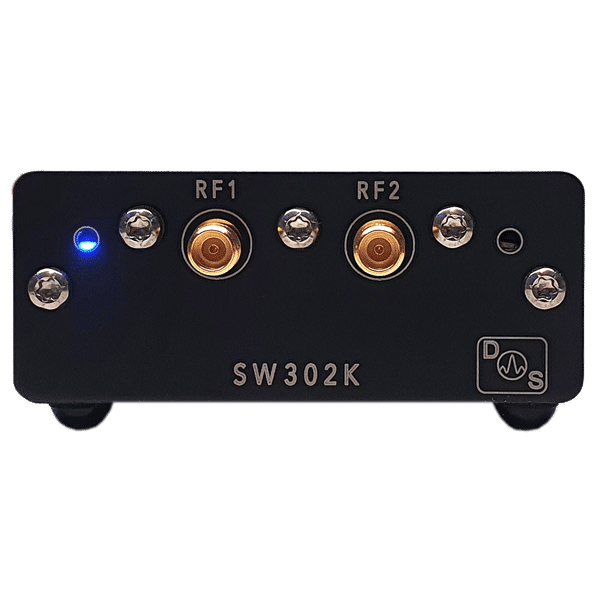

DS Instruments SW302K 30GHz RF Switch

DS Instrument’s new SW302K 30GHz Microwave Switch is a 2-way solid-state RF switch is powered via USB and controlled using a rear pushbutton switch, or SCPI commands via the USB virtual COM port or Ethernet connection. Status LEDs and audible feedback make this device extremely user friendly for stand-alone usage and remote scripted operation. This non-reflective high-frequency two-port switch is perfect for many high frequency automated test setups including 5G development. Fast switching time and an affordable price point make this the best high-frequency switch on the market. No special drivers are needed to send serial commands from any operating system or host device.

SW302K SPDT Switch Specifications:

  • Super-wideband 1 – 30GHz frequency range
  • Low insertion loss (< 5dB Typical)
  • Max RF  input power : +25 dBm
  • Return loss > 6dB
  • Non-reflective design
  • 40GHz-rated precision 2.92mm RF connectors
  • Solid-state reliability and speed
  • Bi-directional topology
  • Fast switching time
  • Superior isolation (40dB typical)
  • LED port status indication
  • Impedance: 50 Ohm
  • Micro-USB powered
  • Standard Ethernet port

Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
