Description
Signal Hound Accessories kit

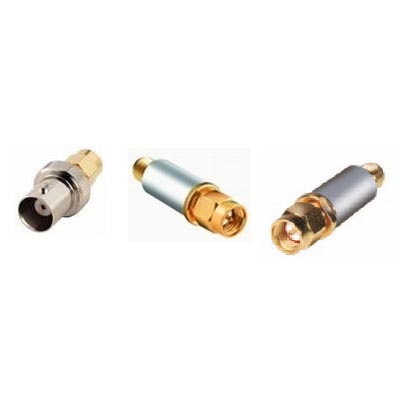

Signal Hound Accessories kit components: a selection of high-quality components from Minicircuits and includes a 20 dB pad, DC block, and BNC-to-SMA adapter.
BLK-89-S+
DC Block (SMA): 50Ω 0.1 MHz to 8 GHz
Features
• broadband performance
• low insertion loss
• rugged unibody construction
• off-the-shelf availability
Applications
• test and measurement instrumentation
• communication systems
• defense systems
VAT-20+
SMA Fixed Attenuator: 50Ω 0.5W 20dB DC to 6000 MHz
Features
• wideband coverage, DC to 6000 MHz
• rugged unibody construction
• off-the-shelf availability
• very low cost
Applications
• impedance matching
• signal level adjustment
Note; The accessories kit may use the replacement part VAT-20A+
SM-BF50+
Adaptor, SMA-M to BNC-F: 50Ω DC to 2 GHz
Features
• flat response
• excellent VSWR
• low cost adapters, available from stock
• brass body, nickel plated
Applications
• interconnection of RF cables and equipment
• testing
