SG40000L Signal Generator 40GHz


Available on back-order


SG40000L Signal Generator 40GHz

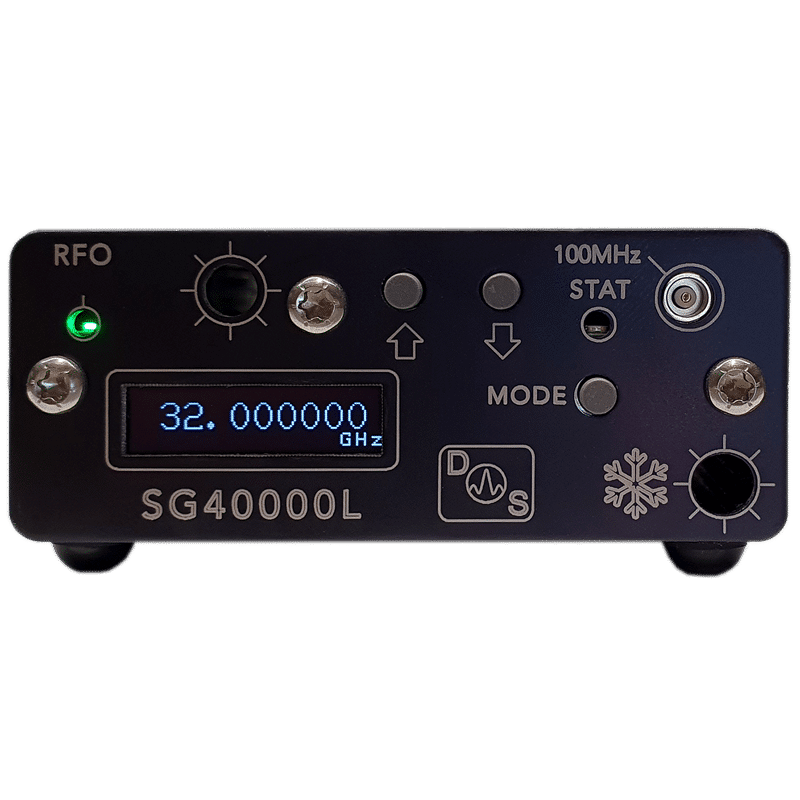

DS Instruments SG40000L 40GHz signal generator

SG40000L Signal Generator 40GHz

Introducing the SG40000L, our latest portable and affordable high-frequency signal generator!

DS Instrument’s new high-frequency microwave signal generator has been released! This new standard version offers the same low-noise performance of the SG30000L, but with a higher frequency band covering 25to 40GHz . Like our SG6000 product line, this source is fully programmable via SCPI commands, or the front panel interface, making it more flexible than any competing product. High output power, wide bandwidth, and ultra-compact size make this the best value 40GHz source on the market.

2023 REV 6 hardware now shipping with reduced sub-harmonic levels!


SG40000L Standard 40GHz Device Features:

  • Output frequency range covering 25 – 40GHz
  • Power output level range (calibrated): -13dBm to +13dBm
  • Power output level range (uncalibrated): -15dBm to +15dBm (typical)
  • Excellent phase noise: < -90dBc @ 40GHz @ 10KHz offset
  • Power level resolution: 0.5dB steps & vernier (< ~0.1dB)
  • Sub-harmonic levels: < -15dBc typical
  • Extremely small frequency step size: 4Hz
  • Ultra-low-noise 100MHz VCXO locked to internal TCXO or external 10MHz reference
  • Internal precision high-frequency reference source (±280PPB 10MHz)
  • Calibrated power absolute accuracy: < ±2.0dB (typical)
  • MCX input for 10MHz clock source
  • Compact powder-coated laser-etched enclosure
  • Precision 2.92mm output jack (3.5mm compatible)
  • Ethernet remote operation (DHCP)
  • Windows control software included (USB & Network enabled)
  • SCPI command aware via USB-C virtual COM port for remote control
  • Front controls and bright OLED display for stand-alone usage
  • Completely powered from USB-C, no DC adapter required!

Common microwave Applications:

  • Automated testing environments
  • General RF lab use
  • Flexible LO sourcing
  • Antenna design
  • EMC testing
  • Production verification and test setups
  • Educational / university lab use
  • Aerospace / Defense Research
  • satellite link testing
  • radar applications
  • Ka-band development
  • Up-converting and down-converting
  • Wireless infrastructure design
  • Transponder verification
  • 5G testing
  • mm-wave technology

Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
