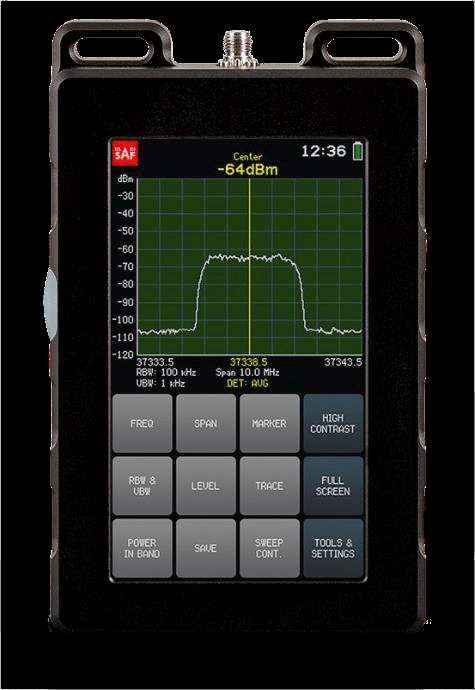

SAF Tehnika 43GHz Spectrum Analyser

Description

SAF Tehnika 43GHz Spectrum Analyser

SAF Tehnika 43GHz Spectrum Analyser

Measurements

  • Channel Power (measures the total power in a specified bandwidth)
  • Adjacent channel power
  • Signal bandwidth
  • Center frequency
  • Interference detection
  • Mask

Setup Parameters

  • Frequency: Center/Start/Stop
  • Trace mode: Normal, Max hold, Cumulative, # of Averages, Fill, MinMax Hold
  • Span: Full Span, Min Span, Selected Span

Save

  • Proprietary format
  • Saves actual data

Sweep Functions

  • Sweep: Continuous, Manual Trigger

Trace Functions

  • Trace operations: Normal, Max hold, # of Averages, Cumulative, MinMax Hold

Marker Functions

  • Marker: Peak search, set marker to center

Settings

  • RBW, VBW

Frequency

  • Frequency Range 24 000 – 40 000 / 43 000 MHz
  • Frequency Resolution 100 kHz
  • Frequency Reference
    • Aging ±1.0 ppm/1 year
    • Accuracy: ±2.5 ppm (25°C ±25°C) + aging
  • Frequency span 10 MHz to full Bandwidth (Performance Sweep Mode)
  • RBW 100 kHz 300 kHz 1MHz ▪ VBW 1 KHz 3 kHz 10 kHz 30 kHz 100 kHz

Amplitude Ranges

  • Measurement Range DANL to -40 dBm

Amplitude Accuracy (single sine wave input, Performance Sweep Mode)

  • 20° C to 30° C Typical: ±1 dB

VSWR

  • 24 000 – 40 000 / 43 000 MHz < 1.9 (10 dB)

Maximum Input Level

  • DC voltage     0 V
  • CW RF power Attenuation = 0 dB ; 0 dBm (1 mW)
  • Max. Damage level     0 dBm

Displayed Average Noise Level (DANL)

  • RBW = VBW = 100 kHz, AVG detector, trace average >/ 50, 20°C to 30°C, input impendence = 50 Ω
  • 24 000 MHz to 32 000 MHz -105 dBm typ
  • 32 000 MHz to 40 000 / 43 000 MHz -100 dBm typ

Level Display

  • Trace detectors:      AVG; MAX; MIN
  • Trace functions:     Clear write, max hold, average, cumulative, minmax hold

Frequency response

  • 24 000 – 40 000 / 43 000 MHz; amplitude accuracy ±1 dBm

RF Input Connector

  • Impedance:      50 Ω (nom.)
  • Connector:       2.92mm

Sweep

Sweep time

  • @ RBW=VBW=100kHz, MIN SPAN=10MHz
  • Sweep time = 200 ms

Display

  • Type:     Touchscreen
  • Resolution:     480 x 3 (RGB) x 272
  • Size:     4.3 inch
  • Color arrangement:     RGB-stripe

Other specifications:

  • Mass memory 8 GB
  • Input voltage 5V DC 3A
  • Interface USB Type-C
  • Battery life up to 3h
  • Operating temperature -15°C to +55°C / 5°F to 131°F
  • Dimensions 135 x 83 x 34 mm / 5.31 x 3.27 x 1.34 inch
  • Weight 0.57 kg / 20.11 oz

SAF Tehnika Spectrum Compact Series Spectrum Analysers brochure

SAF Tehnika 43GHz Spectrum Analyser Data Sheet

Product features may vary between different models and configurations. They are subject to change without prior notice.
