Signal Hound RFS44 44GHz 4-Port RF Switch

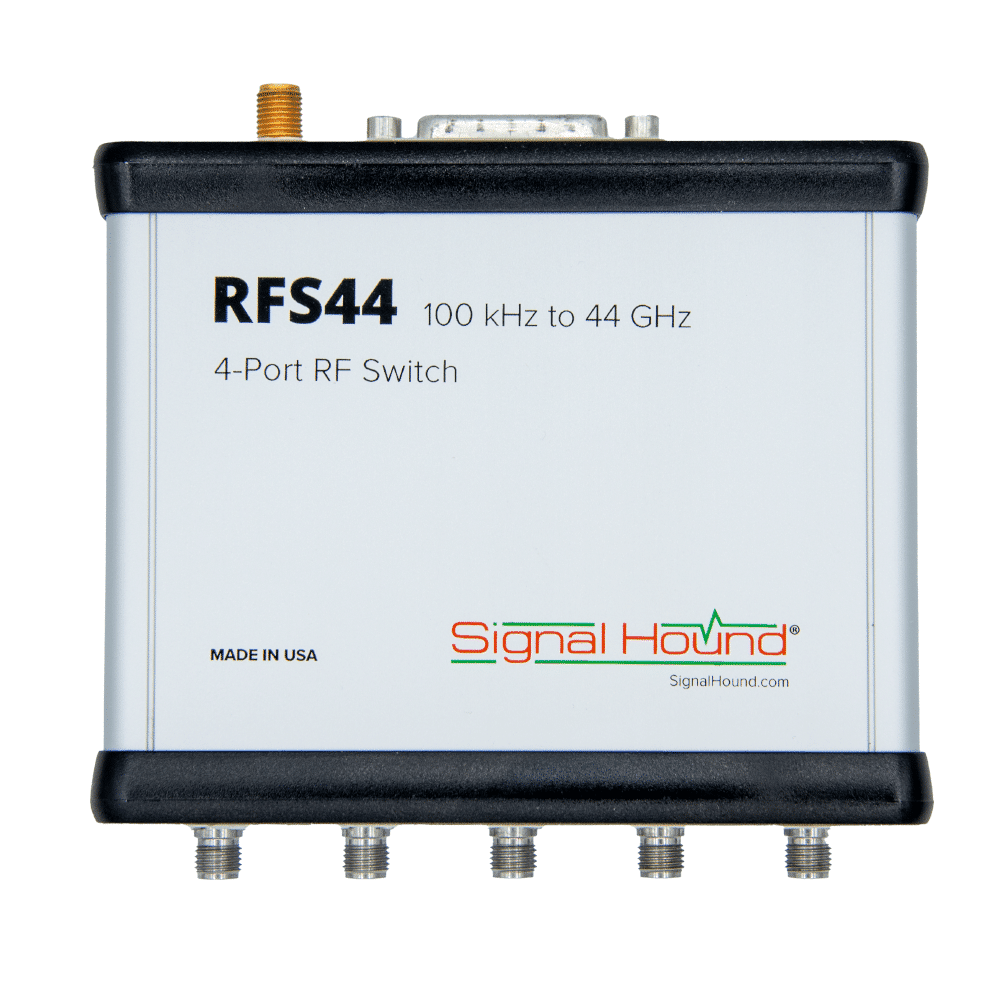

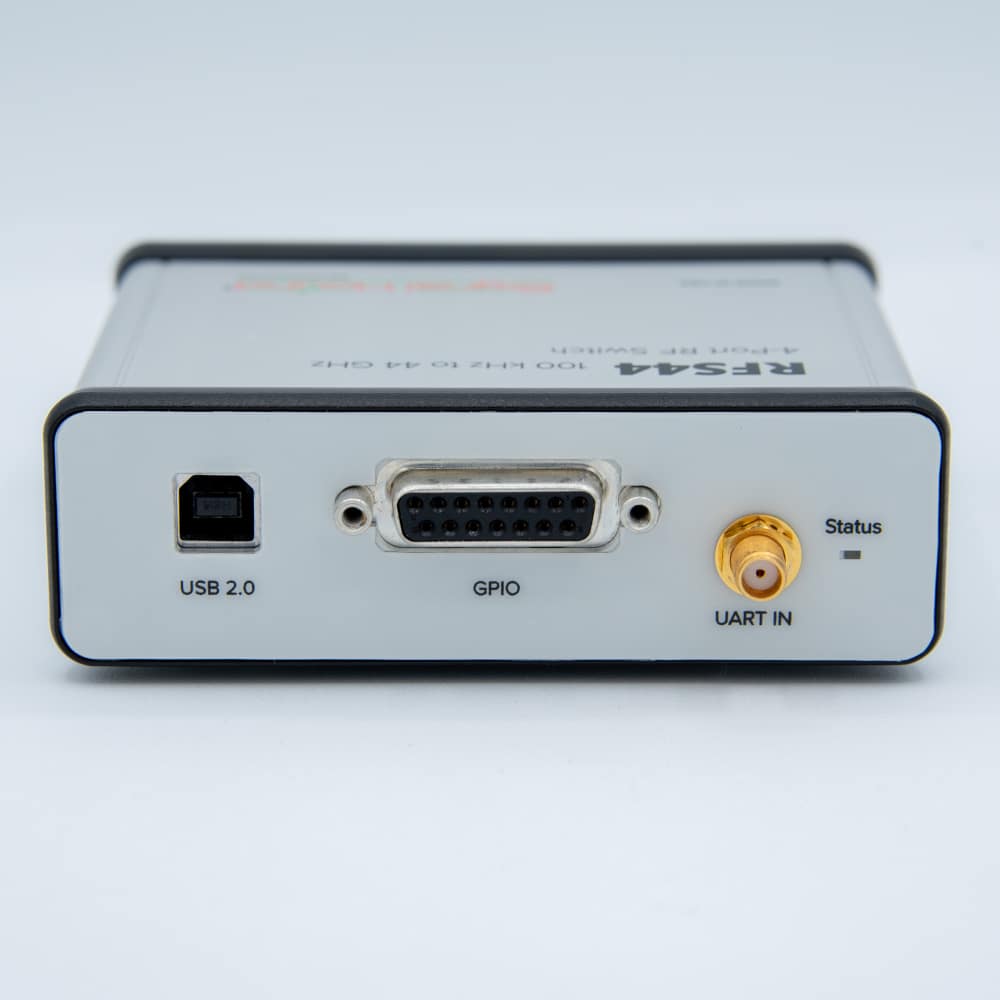

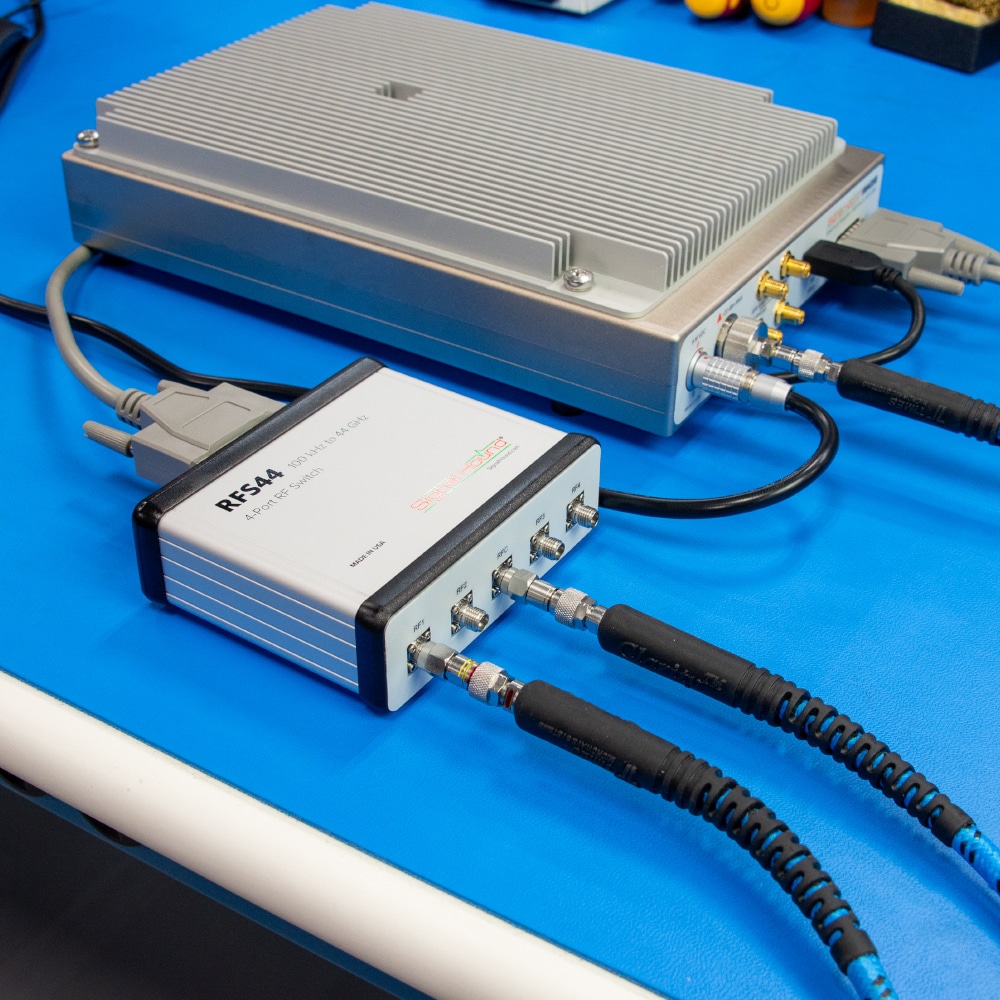

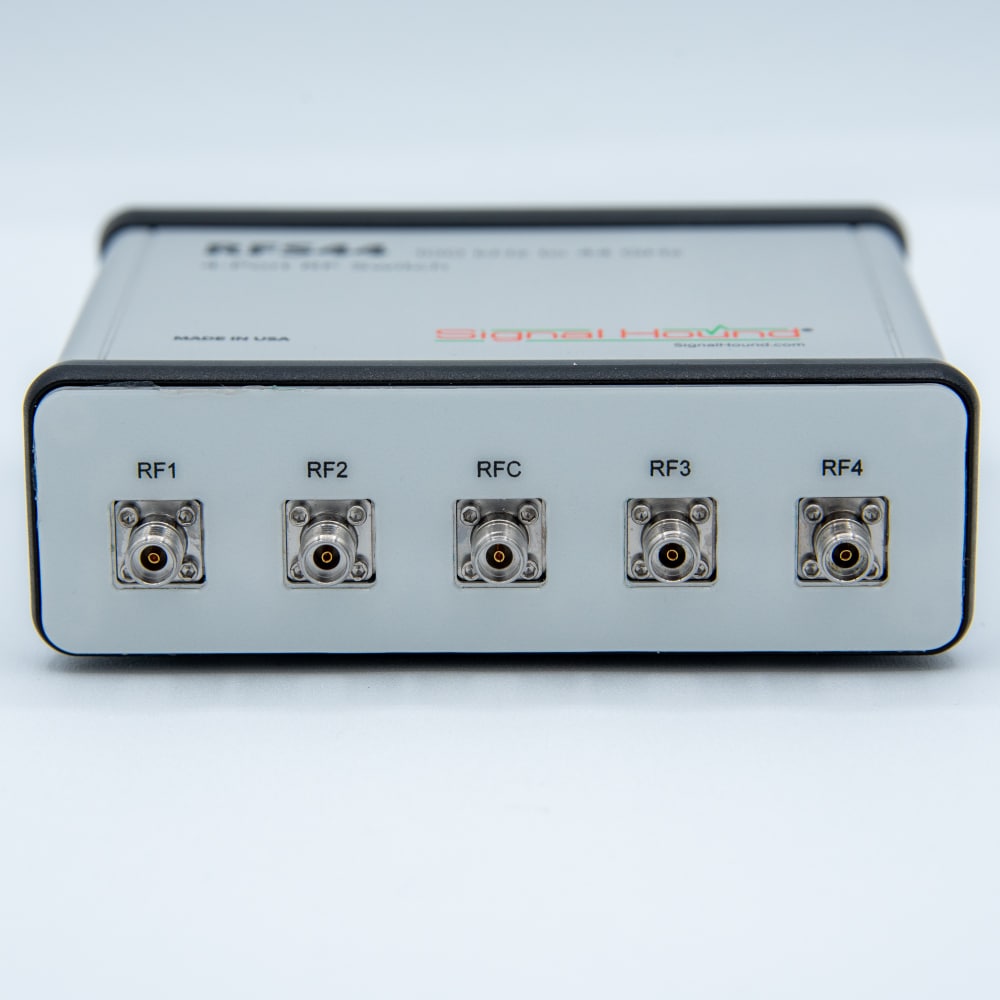

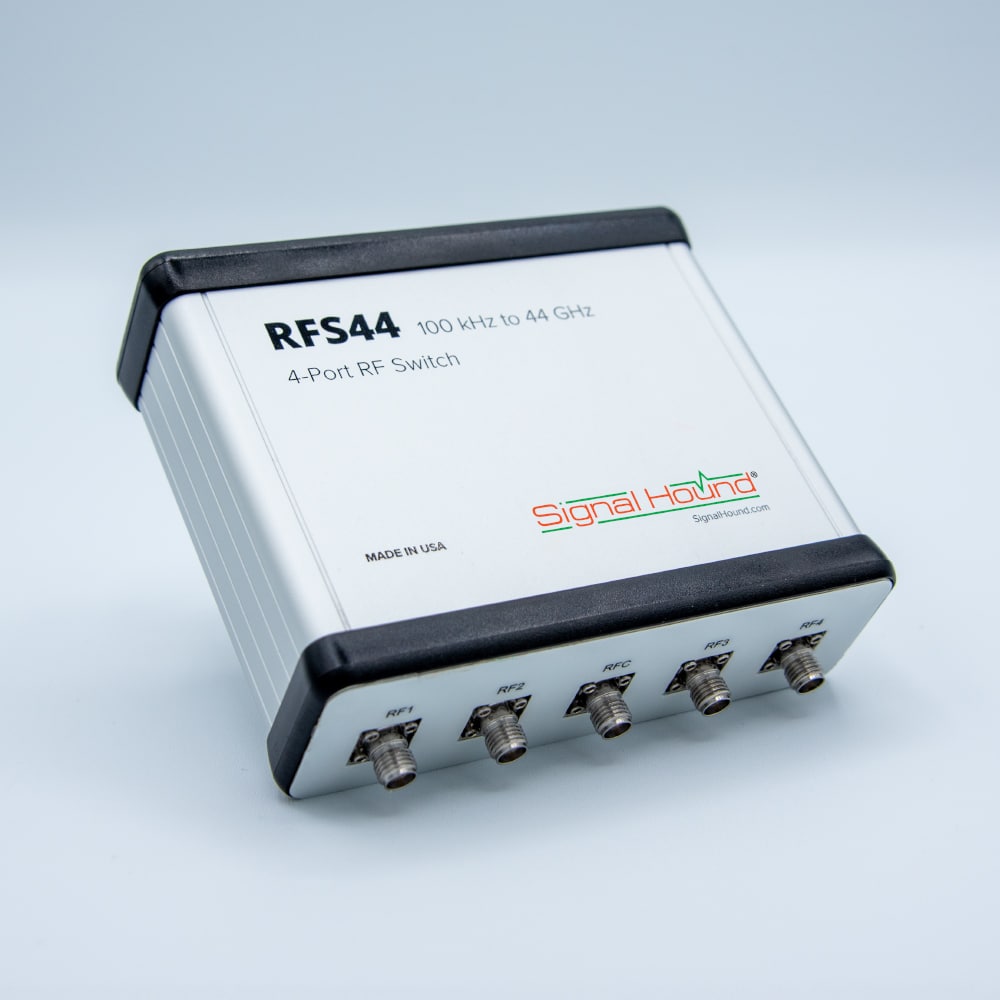

The RFS44 44GHz 4-Port RF Switch is a single pole four throw (SP4T) absorptive solid-state switch using silicon-on-insulator (SOI) technology providing RF switching across four ports at up to 44 GHz. Switch from LF all the way through the Ka band and utilize this versatile tool in psuedo-doppler direction finding applications. With blazing fast switch speed, 3 ns rise/fall times, and direct access from Spike™, the RFS44 enables multi-band sweeping and direction finding to the SM435 product line!

Signal Hound’s RFS44 high-speed antenna switch applies their innovative approach to high-performance test and measurement equipment to utility switching control. Utilizing advanced RF architecture design, in unison with high quality components, the RFS44 gives users vital features and enables concise data acquisition when switching across varied frequencies in diverse RF environments.

RFS44 User Manual V1.0.0

Signal Hound RFS44 Data Sheet


Additional information

Weight 0.25 kg
Dimensions 11 × 11 × 3.5 cm

Standard, 3-Year, 4-Year, 5-Year
