SG6000F Signal Generator 6GHz w/filtering w/Ethernet


Available on back-order


SG6000F Signal Generator 6GHz w/filtering w/Ethernet

DS Instruments SG6000F Low Harmonic 6GHz signal generator

SG6000F Signal Generator 6GHz w/filtering w/Ethernet

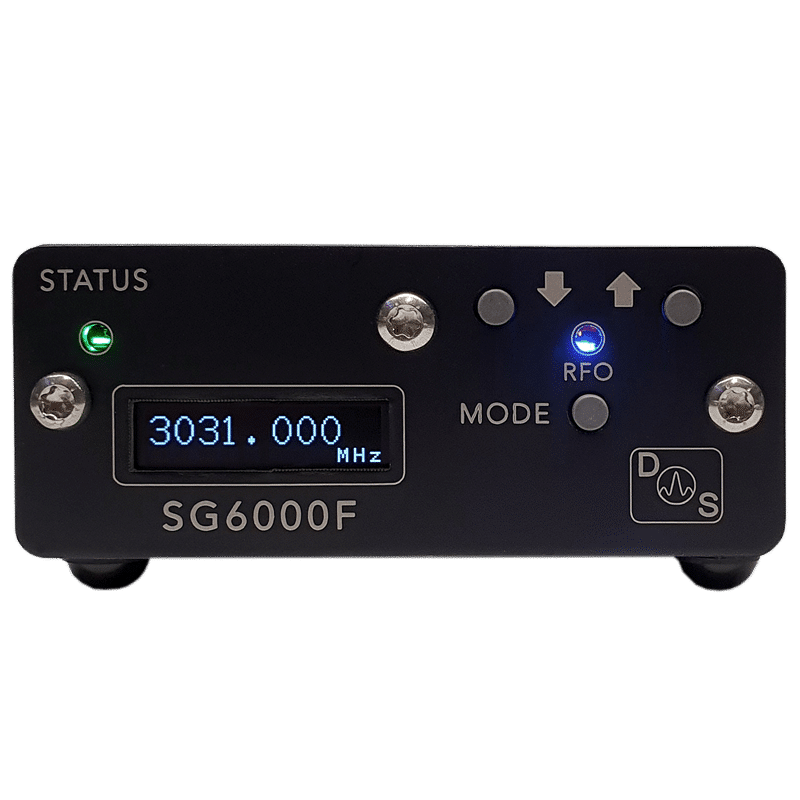

The DS Instruments SG6000F RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG6000F provides a pure low-harmonic sine-wave, unlike most other compact signal generators. This fully synthesized, modern fractional-N device covers up to 6GHz. Output power is calibrated from -25 to +13dBm, and can be adjusted downward in 0.25dB steps, or continuously via the internal variable attenuator. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. In applications where low signal distortion is critical, the SG6000F or the low-phase-noise SG6000PRO are unbeatable solutions.

Looking for lower phase-noise and smaller frequency step size? SG6000PRO

SG6000F (2024 Rev6) Features:

  • New more robust output amplifier
  • Phase control support
  • Active harmonic filtering (full-band)
  • External sweep trigger input (MCX)
  • Stand-alone and USB remote operation
  • Adjustable calibrated output power
  • Industry-standard SCPI command support
  • Internal 10MHz reference source
  • Front user frequency step buttons
  • Native on-device frequency-sweeping support
  • Front-mounted bright OLED display
  • Simple Windows control GUI
  • Powered from standard USB Type-C
  • Optional Ethernet with DHCP or static IP
  • Easy to interface with all software packages (.NET, Matlab, python, android, linux…)

RF Signal Generator Specifications (REV 6):

  • Frequency Range: 25-6000MHz
  • Calibrated Power Output: -25 to +13dBm
  • Harmonic Levels: < -32dBc
  • Phase Noise: -74dBc @ 10KHz offset
  • Internal Attenuator (digital): 64 x (0.5dB) Steps
  • Internal Attenuator (variable): ~20dB (10 bit DAC)
  • Dimensions: 2.75″ x 1.25″ x 3.15″
  • Power Input: 5V @ 0.75A max
  • Internal 10MHz TCXO reference stability: ±2.5PPM
  • Reference frequency connector: MCX
  • Trigger input specs: MCX connector, active low, 0-5V
  • Output Impedance: 50 Ohm
  • RF Connector: Premium gold microwave SMA

Common Applications:

  • Automated testing environments
  • General RF Lab use
  • Flexible LO sourcing
  • Antenna design
  • EMC Testing
  • Production verification and testing
  • Educational / university lab use
  • Aerospace / Defense Research
  • 802.11n Development / Testing
  • LTE Engineering


Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
