PS3800 Digital Phase Shifter 2.2-3.8GHz


Available on back-order


PS3800 Digital Phase Shifter 2.2-3.8GHz

DS Instruments PS3800 RF Phase Shifter

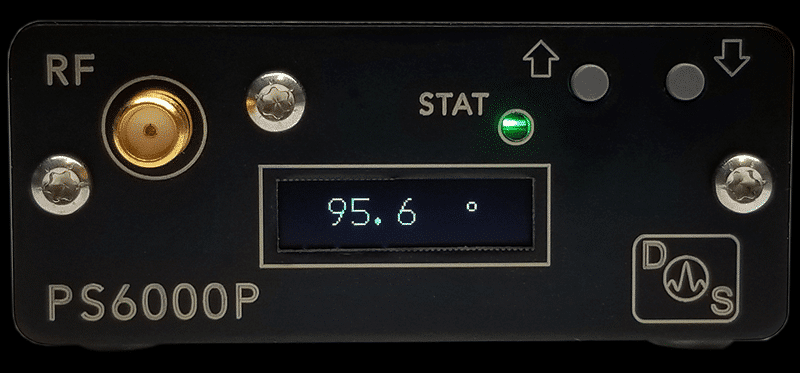

(*PS6000P shown)

PS3800 Digital Phase Shifter 2.2-3.8GHz

The PS3800 RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments. This ultra-compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS3800 is extremely attractive for many automated project setups and test situations.

 New product for 2018!

 Device Specifications:

  • Frequency Range: 2200 – 3800 MHz
  • Angle Range: 0 – 355 degrees
  • Max Power Input: < +26dBm
  • Phase Resolution: 5.625 degrees
  • Insertion Loss: ~5dB typical
  • Return Loss: > 10dB
  • Bi-directional design

PS3800 Digital Phase Shifter Features:

  • Ultra compact powder-coated aluminum case
  • Audio feedback
  • Simple automated remote control interface
  • Micro-USB powered
  • Free PC control application
  • Micro-USB powered and controlled
  • Front control buttons and OLED display
  • Premium gold SMA ports
  • High reliability

Typical RF Applications:

  • Antenna systems
  • Beam forming research
  • Phased-array technology
  • RF signal cancellation
  • Electronic warfare and defense

Additional information

Weight 1 kg
Dimensions 20 × 15 × 5 cm
