Price range: $421.67 through $1,440.00

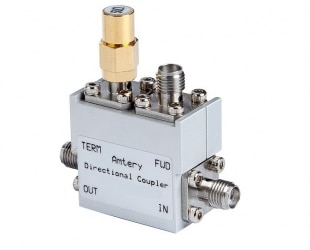

Amtery Directional Couplers Model Freq. Low (GHz) Freq. High (GHz) Coupling Nom. (dB) Directivity Typ. (dB) Directivity Min. (dB) Power (W) CP10008A-10 0.5 8 10 23 20 20 CP10008A-20 0.5 8 20 25 21 20 CP10008A-6 0.5 8 6 23 21 50 CP10012A-10 0.5 12.4 10 21 17 30 CP10018A-10... Read More
| Model | Freq. Low (GHz) | Freq. High (GHz) | Coupling Nom. (dB) | Directivity Typ. (dB) | Directivity Min. (dB) | Power (W) |

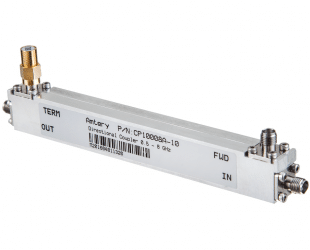

| CP10008A-10 | 0.5 | 8 | 10 | 23 | 20 | 20 |
| CP10008A-20 | 0.5 | 8 | 20 | 25 | 21 | 20 |
| CP10008A-6 | 0.5 | 8 | 6 | 23 | 21 | 50 |
| CP10012A-10 | 0.5 | 12.4 | 10 | 21 | 17 | 30 |
| CP10018A-10 | 0.5 | 18 | 10 | 21 | 16 | 20 |
| CP10018A-20 | 0.5 | 18 | 20 | 21 | 16 | 20 |

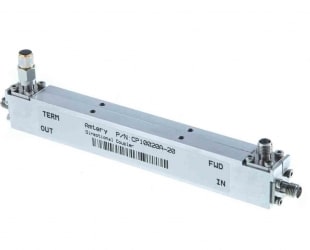

| CP10020A-20 | 0.5 | 20 | 20 | 17 | 15 | 20 |
| CP10026A-10 | 0.5 | 26.5 | 10 | 15 | 13 | 20 |
| CP10104A-10 | 1 | 4 | 10 | 21 | 19 | 20 |
| CP10118A-10 | 1 | 18 | 10 | 21 | 16 | 20 |
| CP10118A-20 | 1 | 18 | 20 | 21 | 16 | 20 |
| CP10120A-10 | 1 | 20 | 10 | 20 | 15 | 20 |
| CP10208A-10 | 2 | 8 | 10 | 25 | 22 | 20 |
| CP10208A-6 | 2 | 8 | 6 | 23 | 21 | 50 |
| CP10218A-10 | 2 | 18 | 10 | 21 | 17 | 20 |

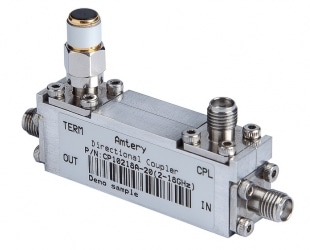

| CP10218A-20 | 2 | 18 | 20 | 20 | 16 | 20 |
| CP10220A-10 | 2 | 20 | 10 | 20 | 16 | 20 |
| CP10408A-10 | 4 | 8 | 10 | 27 | 23 | 20 |
| CP10418A-10 | 4 | 18 | 10 | 20 | 16 | 20 |
| CP10710P150-20 | 7 | 10 | 20 | 21 | 19 | 150 |
For custom specifications, please contact us.
| Weight | .1 kg |
|---|---|
| Dimensions | N/A |
